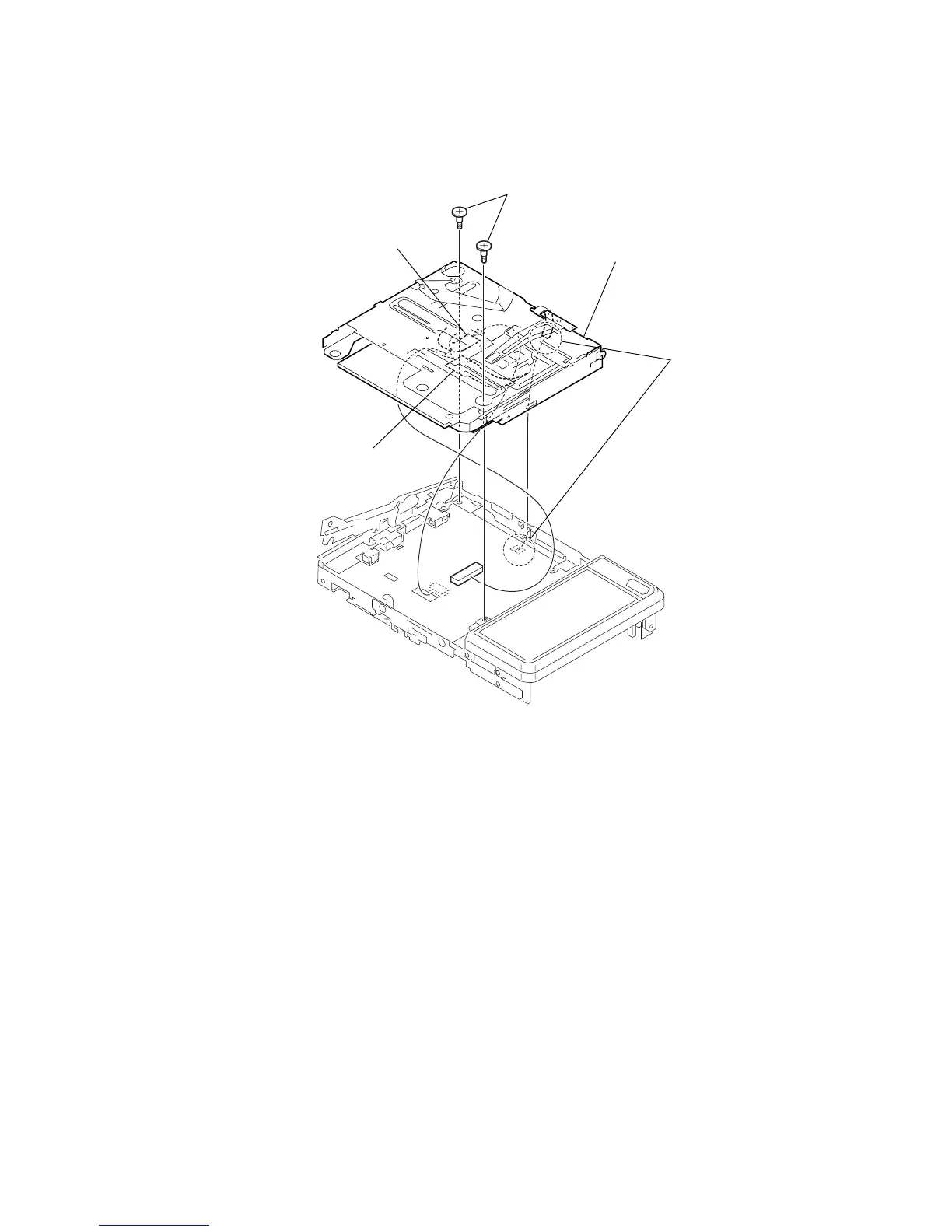

3-10. Mechanism Deck (MT-MZN710-177)
1
Remove the
two soldering
s
4
flexible board (optical pick-up)
(CN501)
2
flexible board (motor)
(CN701)
5
mechanism deck
(MT-MZN710-177)
3
two step screws (MD)
