MZ-B10

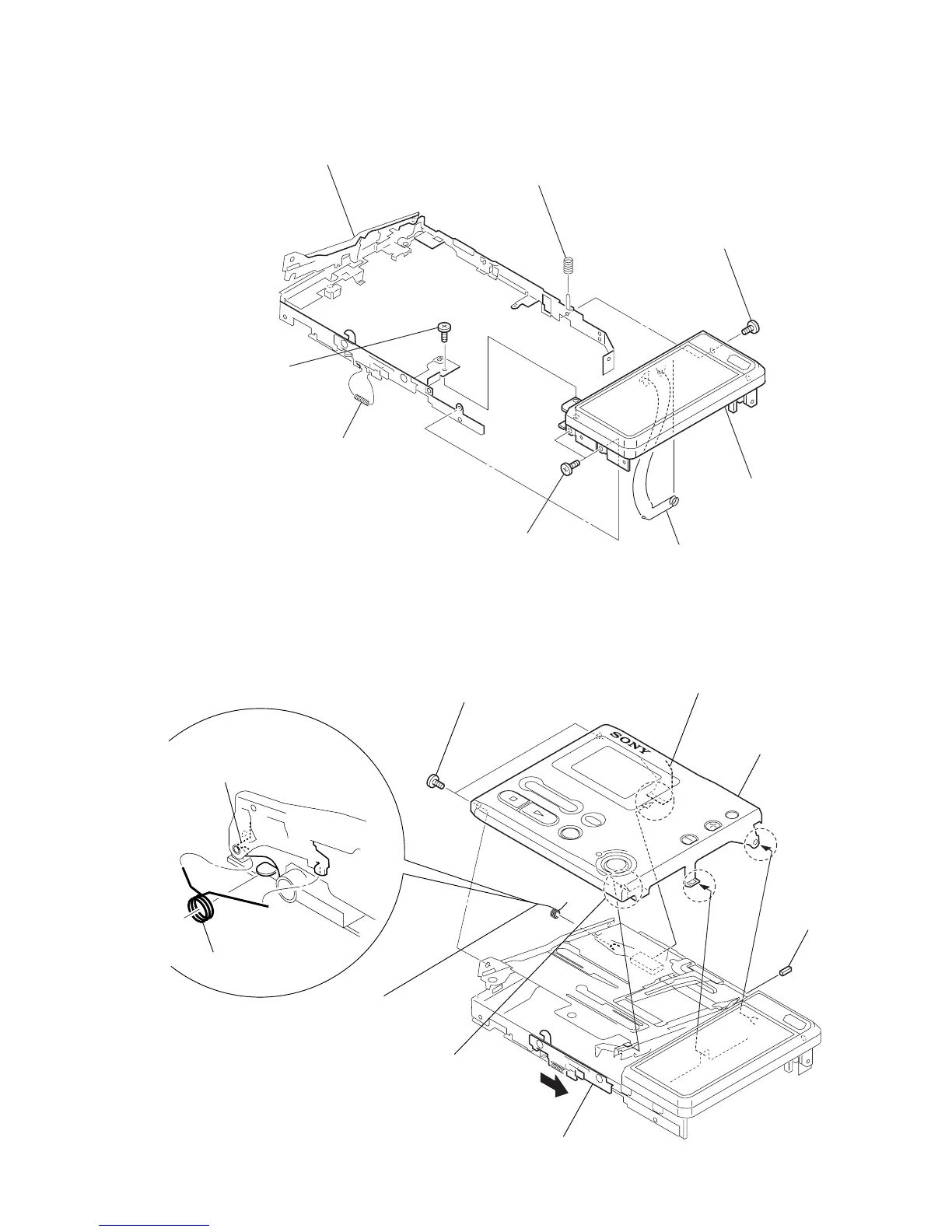

3-6. Set Chassis Assy, Case (Spk) Assy
2 two screws (M 1.4)
3 screw (M 1.4)
4 spring (pop-L)
6 compression spring (ground)
7 spring (limiter)
1 screw (M 1.4)
8 set chassis assy
5 case (spk) ass
y
3-7. Case (Upper) Assy
9 torsion spring
(pop up)
3 Slide the open slider in the direction of the arrow,
and open the case (upper) assy.
5 claw
7
6
set chassis assy
torsion spring (pop up)
2 flexible board
(CN801)
4 two screws
(M1.4)
8 case (upper) section
1 cushion (B1)
