13
MZ-B10

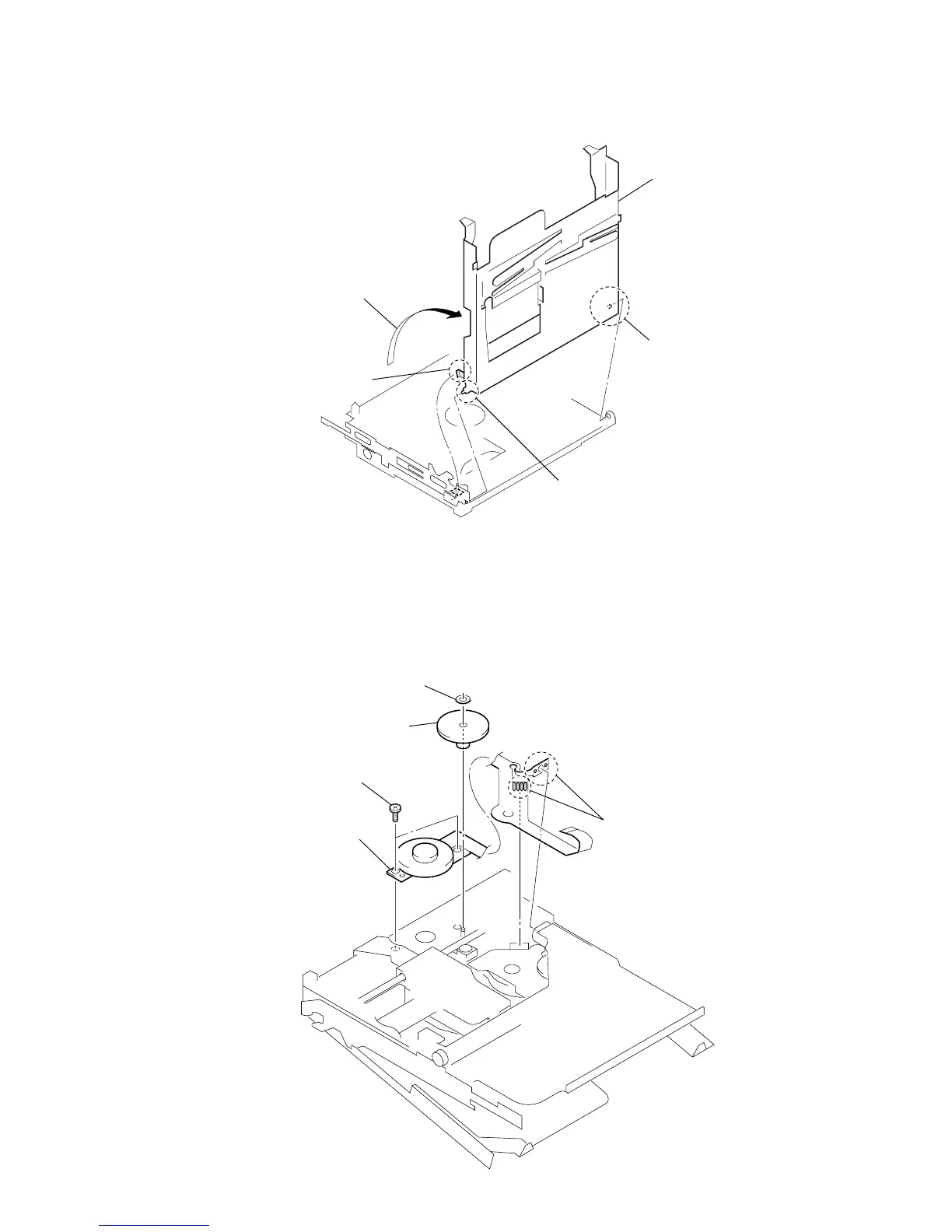

3-12. Holder Assy
4
holder ass
y
3
boss
3
boss
1
convex portion
2
Open the holder assy.
3-13. DC Motor (Sled) (M602)
2
washer (0.8-2.5)
5
DC motor (sled) (M602)
4
two screws (M1.4)
3
gear (SA)
1
Remove six solders
of the motor flexible board.
