54
MZ-B10

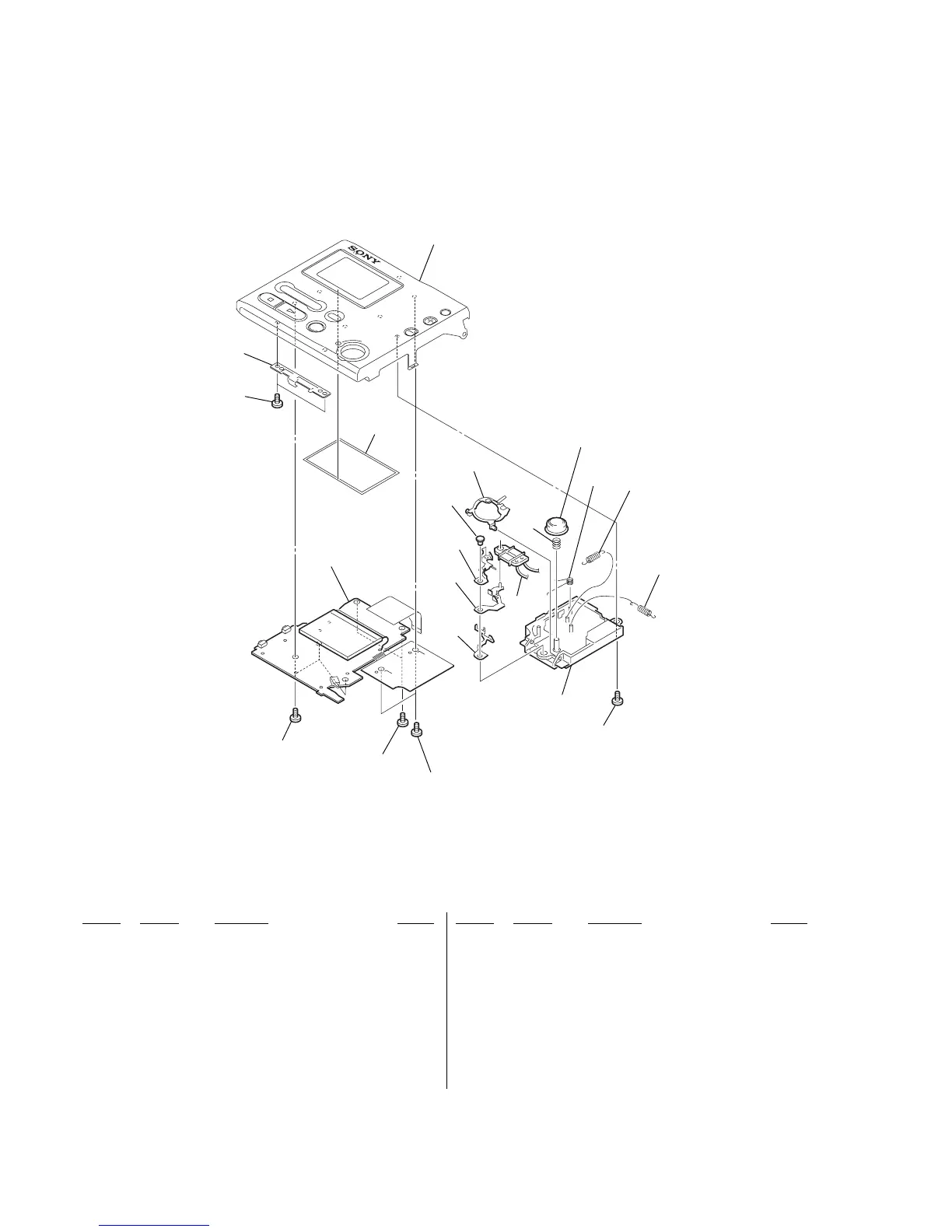

7-2. Upper Chassis Section
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51
52
53
54
56
56
56
58
59
60
61
62
63
64
65
66
56
67
69
68
57
51 X-3383-479-1 CASE (UPPER) ASSY
52 3-237-946-01 LOCKER, OPEN
53 3-375-114-71 SCREW
54 3-252-845-01 SHEET (LCD), ADHESIVE
56 3-375-114-21 SCREW
57 3-247-871-01 BUTTON (REC)
58 3-247-872-01 SPRING (REC), COMPRESSION
59 X-3383-303-1 BRACKET (REC-B) ASSY
60 3-247-870-01 SHAFT (LEVER)
61 3-247-869-01 LEVER (REC-LOCK)
62 X-3382-767-1 LEVER (RELEASE) ASSY
63 3-247-868-01 LEVER (REC)
64 3-247-874-01 SPRING (LOCK)
65 3-247-873-01 SPRING (REC), TENSION
66 3-247-875-01 SPRING (RELEASE), TENSION
67 3-247-867-01 COVER (REC)
68 1-804-976-11 LCD MODULE
69 1-454-674-81 SOLENOID, PLUNGER (PL901)
To Next Page
