MZ-B10

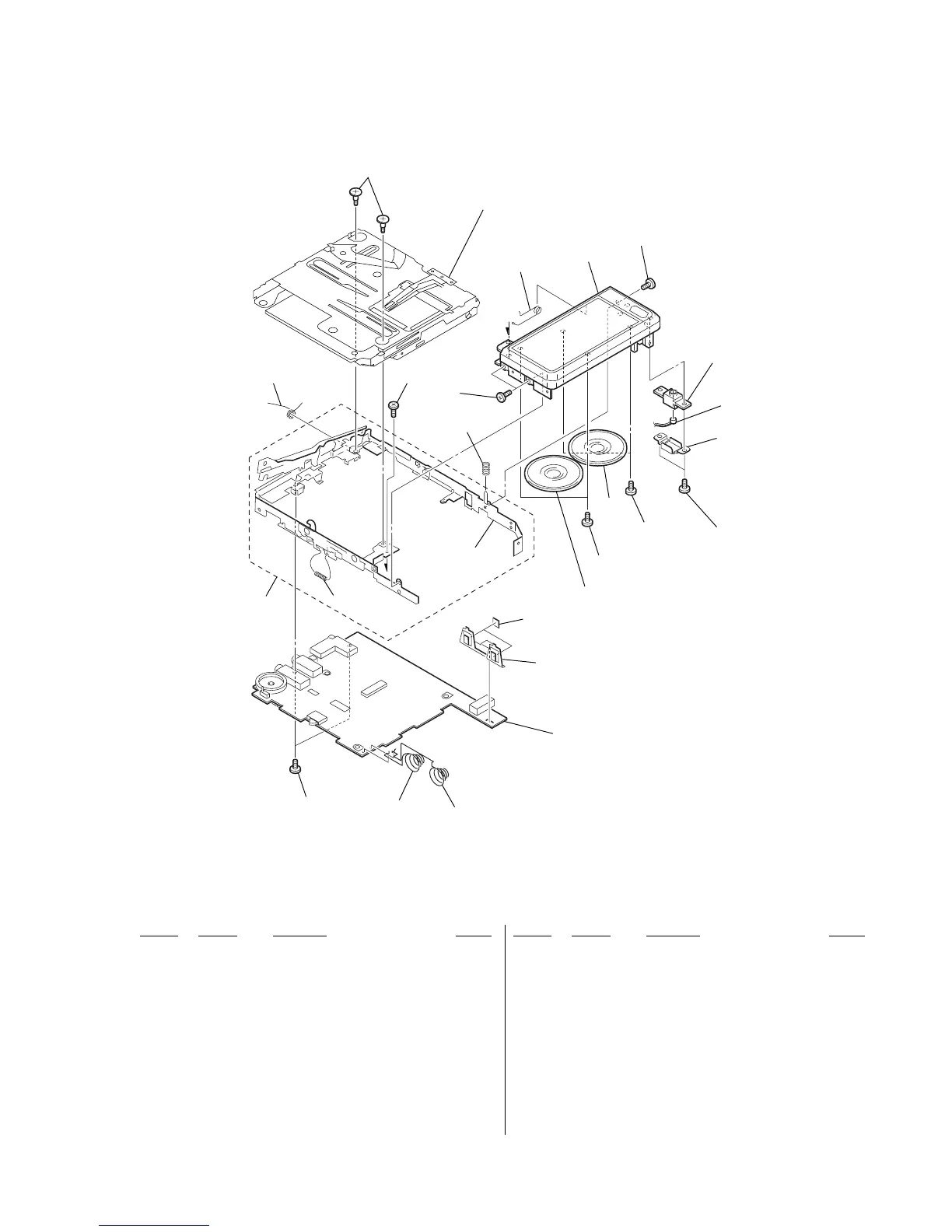

7-3. Chassis Section
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
102
103
106
107
108
109
110
110
111
112
113
114
115
116
117
118
MIC901
SP901
SP902
not
supplied
a
a
not
supplied
107
104
105
MD mechanism deck
(MT-MZN710-177)
101 3-237-072-02 SCREW(MD)STEP
102 3-247-857-01 SPRING (POP UP), TORSION
103 3-375-114-71 SCREW
104 A-3331-715-A CASE (SPK) ASSY
105 3-248-145-01 SPRING (POP-L)
106 3-247-858-01 SPRING (GROUND), COMPRESSION
107 3-234-449-31 SCREW (M1.4)
108 3-235-172-01 CUSHION (MICROPHONE)
109 3-318-382-01 SCREW (1.7X3), TAPPING
110 3-034-792-11 SCREW, TAPPING (B2.0)
111 3-245-889-01 SPRING (LIMITER)
112 X-3382-766-1 CHASSIS ASSY, SET
* 113 A-3347-526-A MAIN BOARD, COMPLETE
114 3-252-529-01 SHEET(+)
115 3-247-854-01 BOARD (+), TERMINAL, BATTERY
116 3-247-856-01 TERMINAL (-) (B), BATTERY
117 3-247-855-01 TERMINAL (-) (A), BATTERY
118 3-225-137-11 SCREW, PRECISION MACHINE
MIC901 1-542-298-11 MICROPHONE, ELECTRET CONDENSER
(FLAT MIC)
SP901 1-529-276-21 SPEAKER (2.8cm) (A)
SP902 1-529-276-21 SPEAKER (2.8cm) (B)
