Sony MZ-B10 - Mechanism Deck Section-2 (MT-MZN710-177;;M)

57
MZ-B10

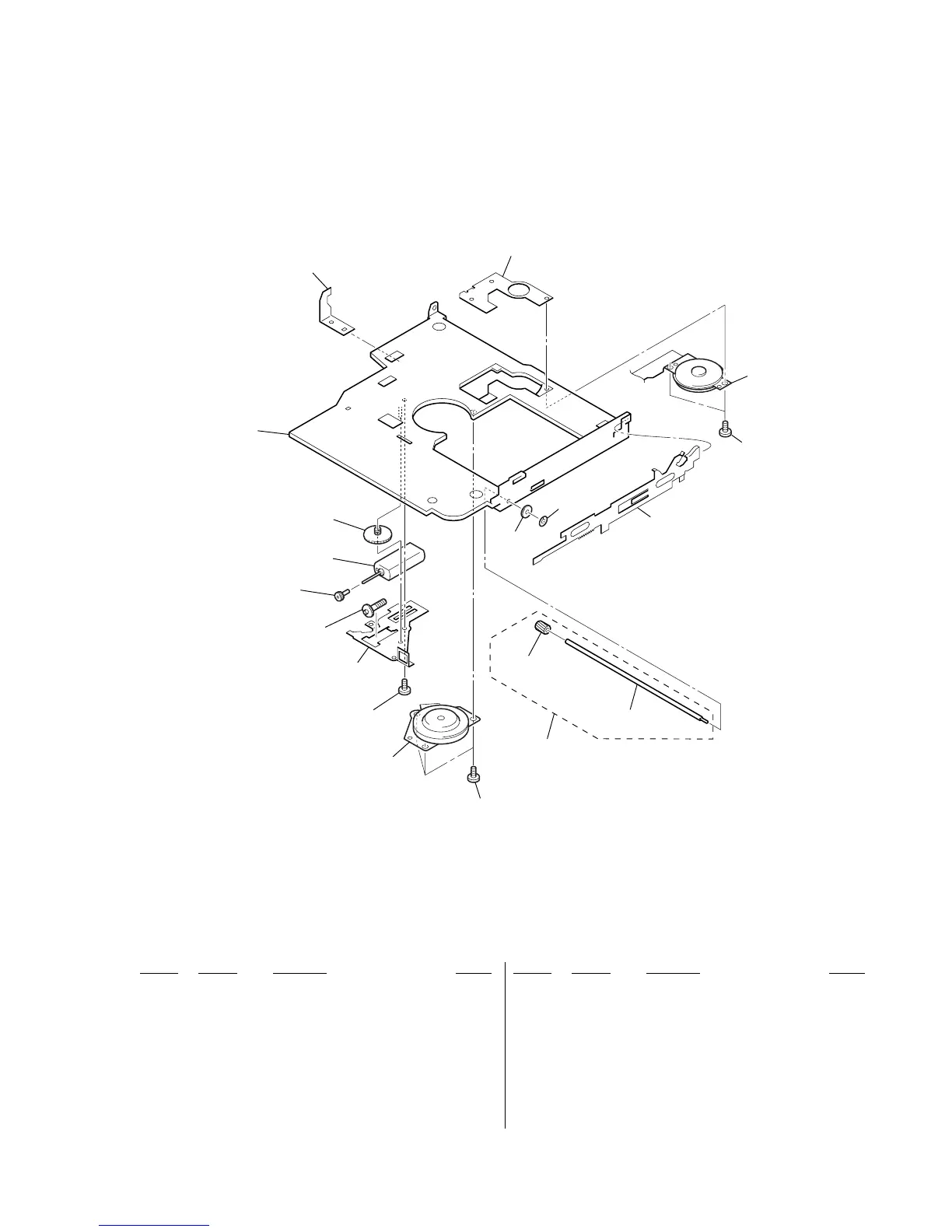

7-5. Mechanism Deck Section-2
(MT-MZN710-177//M)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
M601
not supplied
M603
351
351
364
363
362
361
360
359
352
353
354
355
356
357
358
M602
351 3-225-278-12 SCREW, TAPPING
352 3-235-838-02 COVER, MOTOR
353 3-235-836-01 GEAR (HB)
354 3-222-544-01 GEAR (HA)
355 3-235-835-01 GEAR (HC)
356 3-235-834-01 CHASSIS
357 3-235-830-02 PLATE, RATCHET
358 X-3379-529-4 BASE ASSY, MOTOR
359 3-225-996-07 SCREW (M1.4)(EG),PRECISION PAN
360 3-235-839-02 LEVER (RACK)
361 3-338-645-31 WASHER (0.8-2.5)
362 4-222-222-01 GEAR (RACK)
363 A-3174-089-A SHAFT BLOCK ASSY, SUB
364 4-222-218-02 GEAR (HD)
M601 8-835-744-21 MOTOR, DC SSM18B/C-NP (SPINDLE)
M602 1-763-727-11 MOTOR, DC (SLED)
M603 1-763-400-21 MOTOR, DC (OVER WRITE HEAD UP/DOWN)
