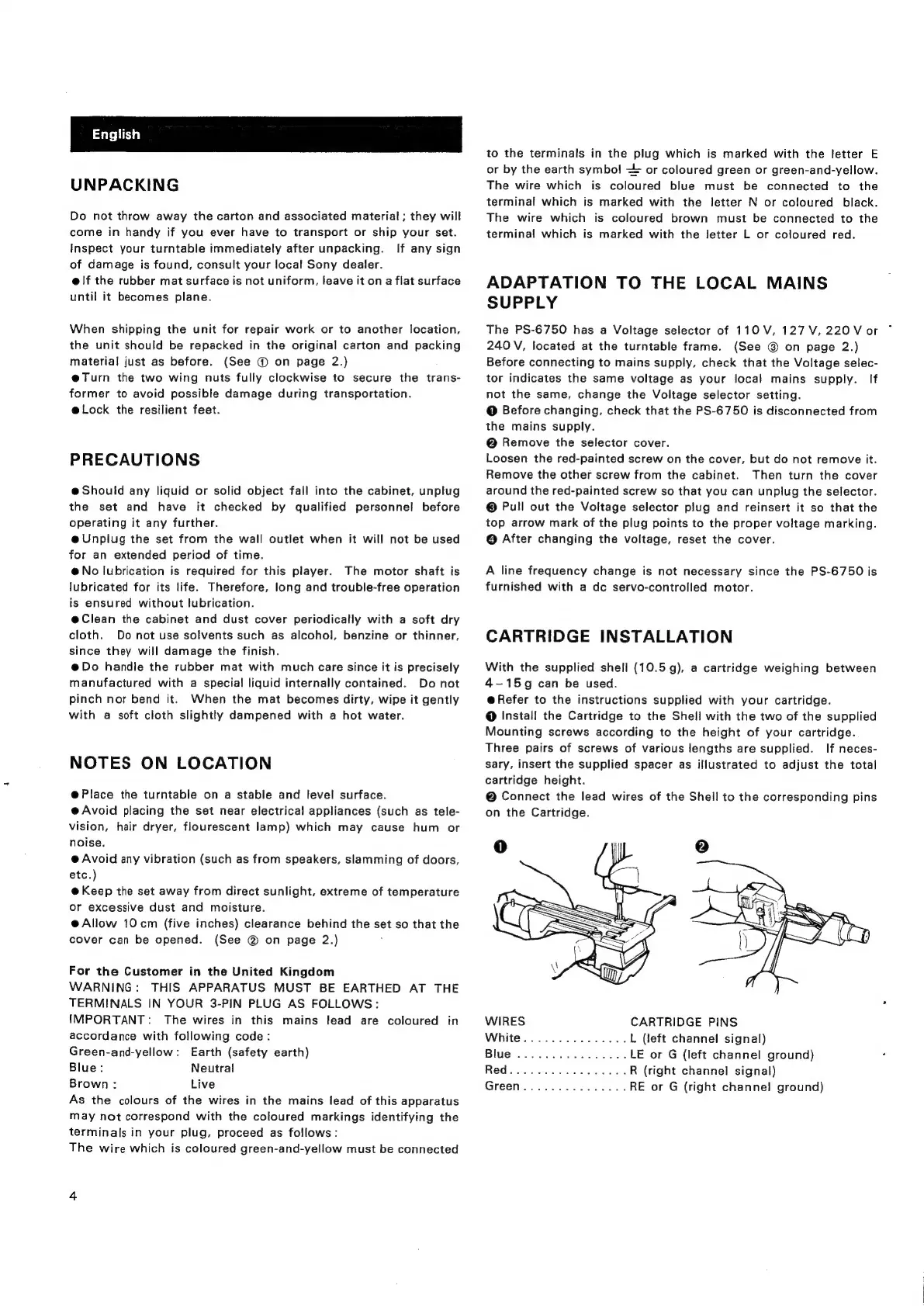

UNPACKING
Do not throw away the carton and associated material; they will
come in handy if you ever have to transport or ship your set.
Inspect your turntable immediately after unpacking. If any sign
of damage is found, consult your local Sony dealer.
elf the rubber mat surface is not uniform, leave it on a flat surface
until it becomes plane.
When shipping the unit for repair work or to another location,
the unit should be repacked in the original carton and packing
material just as before. (See @ on page 2.)
@Turn the two wing nuts fully clockwise to secure the trans-
former to avoid possible damage during transportation.
e@Lock the resilient feet.
PRECAUTIONS
e@ Should any liquid or solid object fall into the cabinet, unplug
the set and have it checked by qualified personnel before
operating it any further.
@ Unplug the set from the wall outlet when it will not be used
for an extended period of time.
@ No lubrication is required for this player. The motor shaft is
lubricated for its life. Therefore, long and trouble-free operation
is ensured without lubrication.
e@Clean the cabinet and dust cover periodically with a soft dry
cloth. Do not use solvents such as alcohol, benzine or thinner,
since they will damage the finish.
@Do handle the rubber mat with much care since it is precisely
manufactured with a special liquid internally contained. Do not
pinch nor bend it. When the mat becomes dirty, wipe it gently
with a soft cloth slightly dampened with a hot water.
NOTES ON LOCATION
@Place the turntable on a stable and level surface.
@ Avoid placing the set near electrical appliances (such as tele-
vision, hair dryer, flourescent lamp) which may cause hum or
noise.
@ Avoid any vibration (such as from speakers, slamming of doors,
etc.)
@ Keep the set away from direct sunlight, extreme of temperature
or excessive dust and moisture.
@Allow 10cm (five inches) clearance behind the set so that the
cover can be opened. (See @ on page 2.)
For the Customer in the United Kingdom
WARNING: THIS APPARATUS MUST BE EARTHED AT THE
TERMINALS IN YOUR 3-PIN PLUG AS FOLLOWS:
IMPORTANT: The wires in this mains lead are coloured in
accordance with following code:
Green-and-yellow: Earth (safety earth)
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected
to the terminals in the plug which is marked with the letter E
or by the earth symbol +& or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
ADAPTATION TO THE LOCAL MAINS
SUPPLY
The PS-6750 has a Voltage selector of 110 V, 127 V, 220 V or
240 V, located at the turntable frame. (See @ on page 2.)
Before connecting to mains supply, check that the Voltage selec-
tor indicates the same voltage as your local mains supply. If
not the same, change the Voltage selector setting.
@ Before changing, check that the PS-6750 is disconnected from
the mains supply.
@ Remove the selector cover.
Loosen the red-painted screw on the cover, but do not remove it.
Remove the other screw from the cabinet. Then turn the cover
around the red-painted screw so that you can unplug the selector.
© Pull out the Voltage selector plug and reinsert it so that the
top arrow mark of the plug points to the proper voltage marking.
@ After changing the voltage, reset the cover.
A line frequency change is not necessary since the PS-6750 is
furnished with a de servo-controlled motor.
CARTRIDGE INSTALLATION
With the supplied shell (10.5 g), a cartridge weighing between
4-15g can be used.
e@Refer to the instructions supplied with your cartridge.
@ Install the Cartridge to the Shell with the two of the supplied
Mounting screws according to the height of your cartridge.
Three pairs of screws of various lengths are supplied. If neces-
sary, insert the supplied spacer as illustrated to adjust the total
cartridge height.
@ Connect the lead wires of the Shell to the corresponding pins
on the Cartridge.
WIRES CARTRIDGE PINS
White............... L (left channel signal)
Blue). ee sata cameo’ LE or G (left channel ground) :
RO seco os. ctig. gh Sehr ae R (right channel signal)
Greener cock ea a RE or G (right channe! ground)
