6

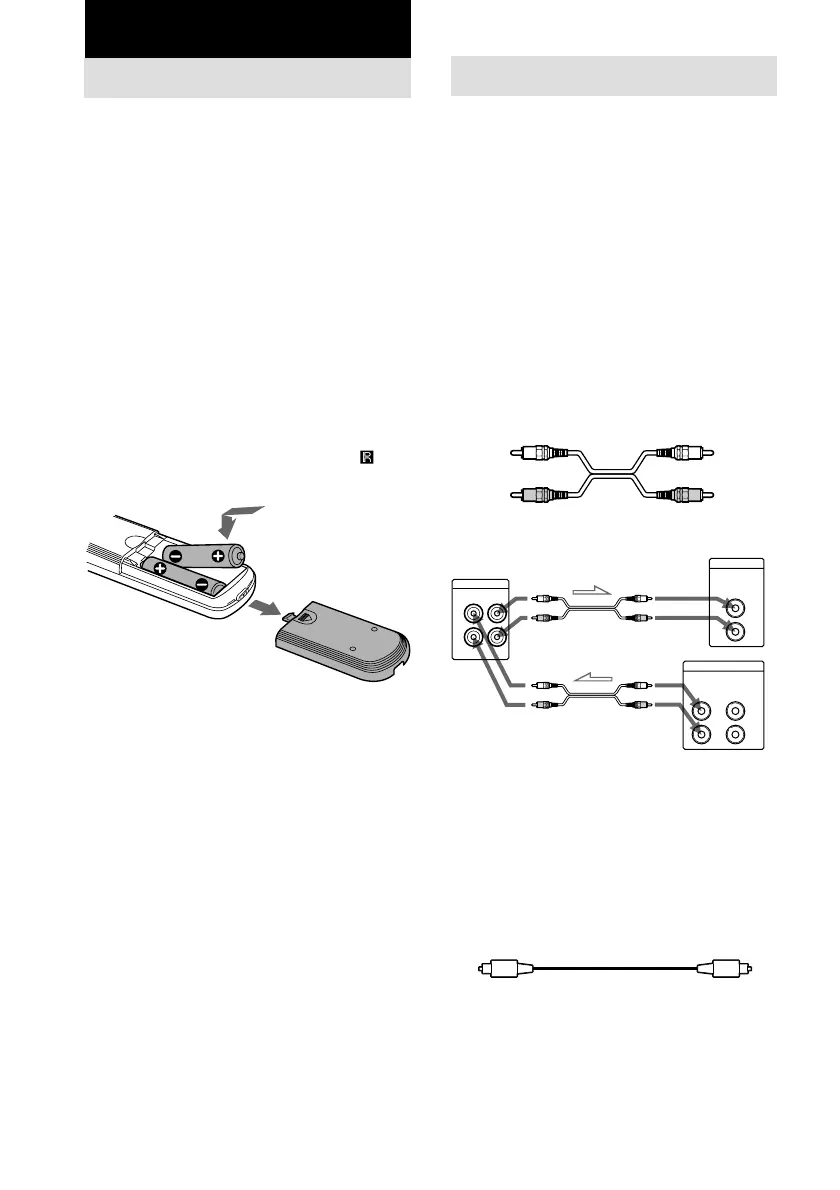

Hooking Up the System
This section describes how to hook up the unit
to an amplifier. Be sure to turn off the power of
each component before making the
connections.
Connecting the unit to an
amplifier
Connect the amplifier to the ANALOG IN/
OUT jacks using the audio connecting cords
(supplied), making sure to match the color-
coded cords to the appropriate jacks on the
components: red (R) to red and white (L) to
white. Be sure to make connections firmly to
prevent hum and noise.
Connecting the unit to a
digital component
Connect a component such as digital amplifier,
CD player, DAT deck, or MD deck through the
DIGITAL OPTICAL IN/OUT jacks with the
optical digital cord (not supplied). Plug in the
cord.
Optical digital cord (not supplied)
RCD-W50C/W10
Amplifier
CD
L
R
IN
ANALOG
IN
L
R
OUT
TAPE/MD
L
R
INOUT
White (L) White (L)
Red (R) Red (R)
Audio connecting cords (supplied) (2)
ll
ll
l: Signal flow
Unpacking
Check that the following items are included:
• Audio connecting cords
Phono jack × 2 (red/white) y Phono jack ×
2 (red/white) (2)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2)
Inserting batteries into the
remote
You can control the unit using the supplied
remote.
Insert two size AA (R6) batteries by matching
the 3 and # ends on the batteries to the
markings inside the compartment. When using
the remote, point it at the remote sensor
on
the unit.
Tip
With normal use, the batteries should last for about
six months. When the remote no longer operates the
unit, replace both batteries with new ones.
Notes
• Do not leave the remote near an extremely hot or
humid place.
• Do not drop any foreign object into the remote
casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from
the sun or lighting apparatus. Doing so may cause a
malfunction.
• If you don’t use the remote for an extended period
of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
Getting Started

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
