Sony RDR GX7 User Manual

14

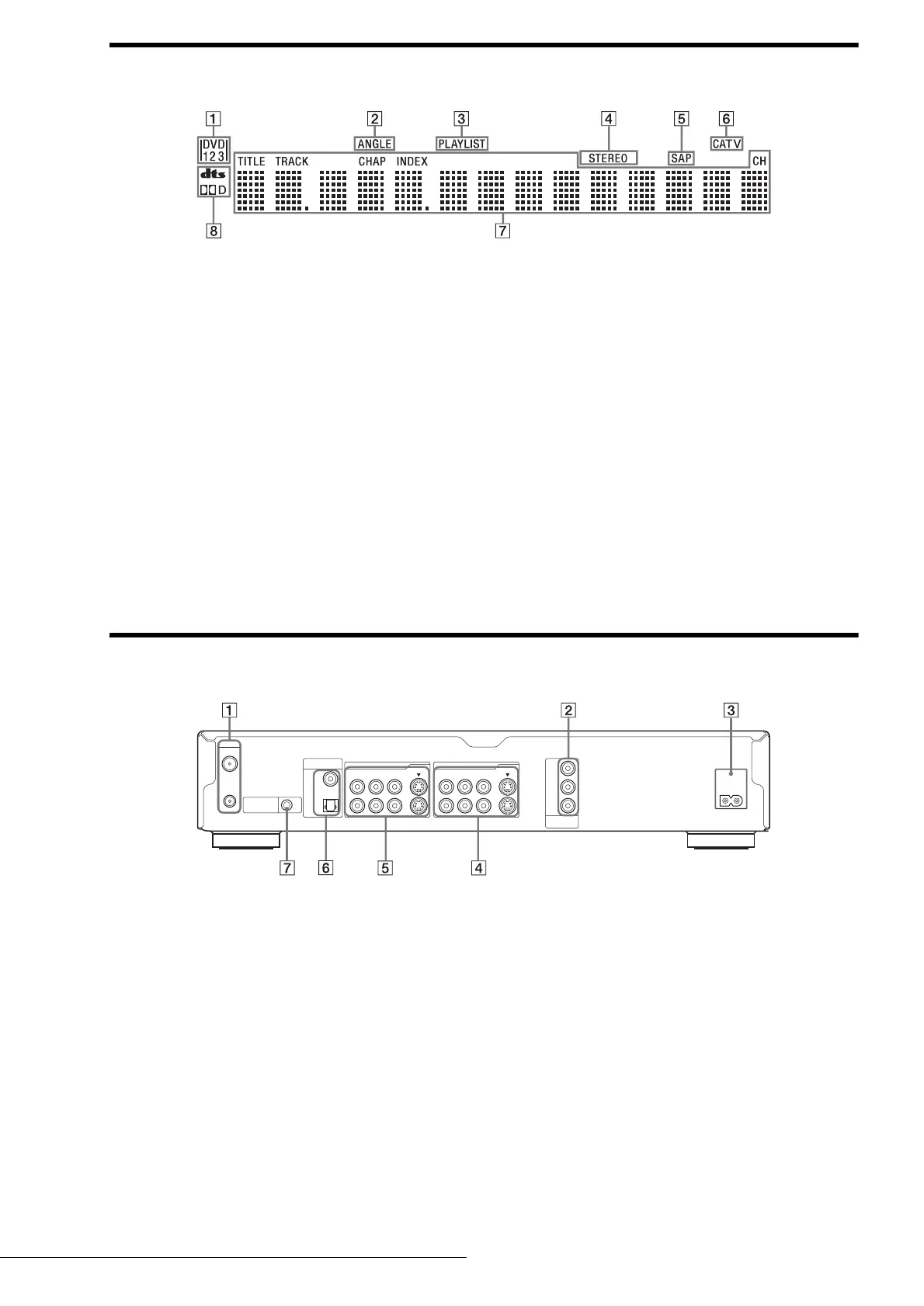

Guide to Parts and Controls
Front panel display
A Command mode indicator (28,
99)
Indicates the selected remote
command mode.
B ANGLE indicator (59)
Lights up when you can change
the angle.
C PLAYLIST indicator (32)
Lights up when the Playlist is
selected.
D STEREO indicators (39)
Lights up when receiving a
stereo program.
E SAP (Second Audio Program)
indicator (39)
Lights up when receiving a
SAP signal.
F CATV indicator
Lights up when receiving a
Cable TV programs.
G Displays the following (57):
• Playing time/remaining time
• Current title/chapter/track/
index number
• Recording time
•Clock
• Channel
H Audio signal indicators (58)
Lights up when playing Dolby
Digital or DTS sound tracks.
z Hint
You can turn off the front panel display by setting “Dimmer” to “Display Off” in Options Setup (page 99).
Rear panel
A VHF/UHF IN/OUT jacks (16)
Connects antenna cables.
B COMPONENT VIDEO OUT (Y,
P
B, PR) jacks (18)
Connects equipment having
component video input jacks.
C AC IN terminal (22)
Connects the power cord.
D LINE OUT (S VIDEO/VIDEO/
AUDIO L/R) 1/2 jacks (18, 20)
Connects the input of external
equipment using an audio/
video or S VIDEO cord.
E LINE IN (S VIDEO/VIDEO/AUDIO
L/R) 1/3 jacks (29)
Connects the output of external
equipment using an audio/
video or S VIDEO cord.
F DIGITAL OUT (COAXIAL/
OPTICAL) jacks (20)
Connects an amplifier
(receiver) having a digital input
jack.
G CONTROL S IN jack (18)
Connects equipment having a
CONTROL S jack.
~ AC IN
S VIDEO
VIDEO
R-AUDIO-L
COMPONENT
VIDEO OUT
P B
Y
P R
S VIDEO
VIDEOR-AUDIO-L
1
3
1
2
VHF/UHF
IN
OUT
DIGITAL OUT
PCM/DTS/DOLBY DIGITAL
COAXIAL
OPTICAL
CONTROL S IN
LINE IN LINE OUT

Sony RDR GX7 Specifications

General

I/O ports	Analog AV In/Out S-Video In/Out Component Video Out DV Terminal (i.LINK) 2 x Scart (1 including RGB in) Digital Audio Out
