2-4

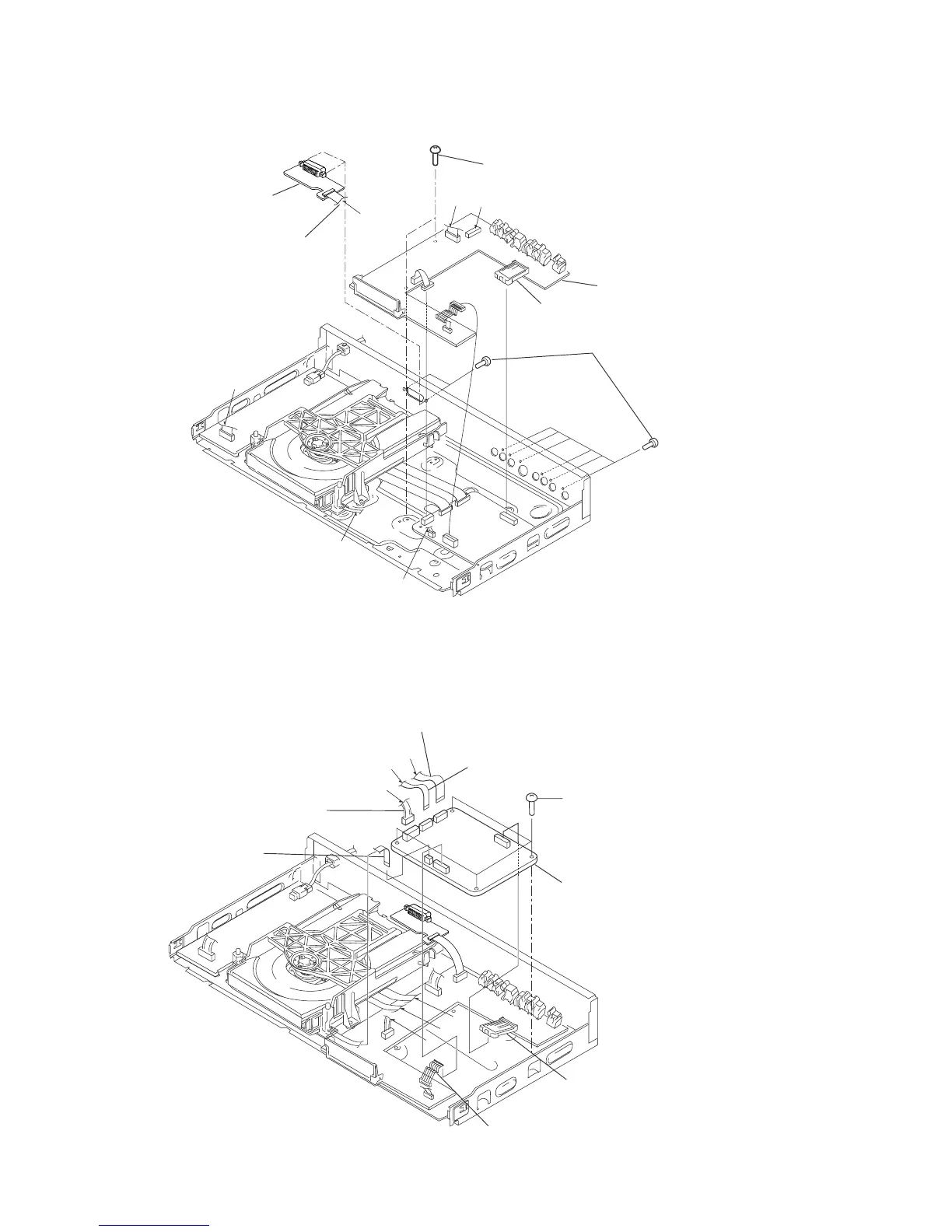

2-7. AF-098 BOARD
2-8. MB-108 BOARD
6 FMM-48 flexible board(CN203, 48P)
(When installing, fix it not to touch the
chassis with the lead pin of the AF-98 board.)
3 MB-108 board
5 FMO-8 flexible
board(CN204, 8P)
7 Connector
(CN102, 6P)
8 FMS-23 flexible
cable (CN201, 5P)
4 Four screws
(SUMITITE (B3)+BV)
2 Connector
(CN101, 9P)
1 Connector
(CN601, 25P)
a
c
b
a
c
b
a
b
b
a
5 Connector (CN601, 25P)
4 AF-98 board
1 ER-21 board
2 FAE-11 flexible
cable (CN102, 21P)
6 Eight screws
(SUMITITE(B3)+BV)
3 Two screws
(SUMITITE(B3)+BV)
c
c
