DVP-NS325/NS330/NS333/NS430/NS433/NS530/NS725P/NS730P
4-19 4-20

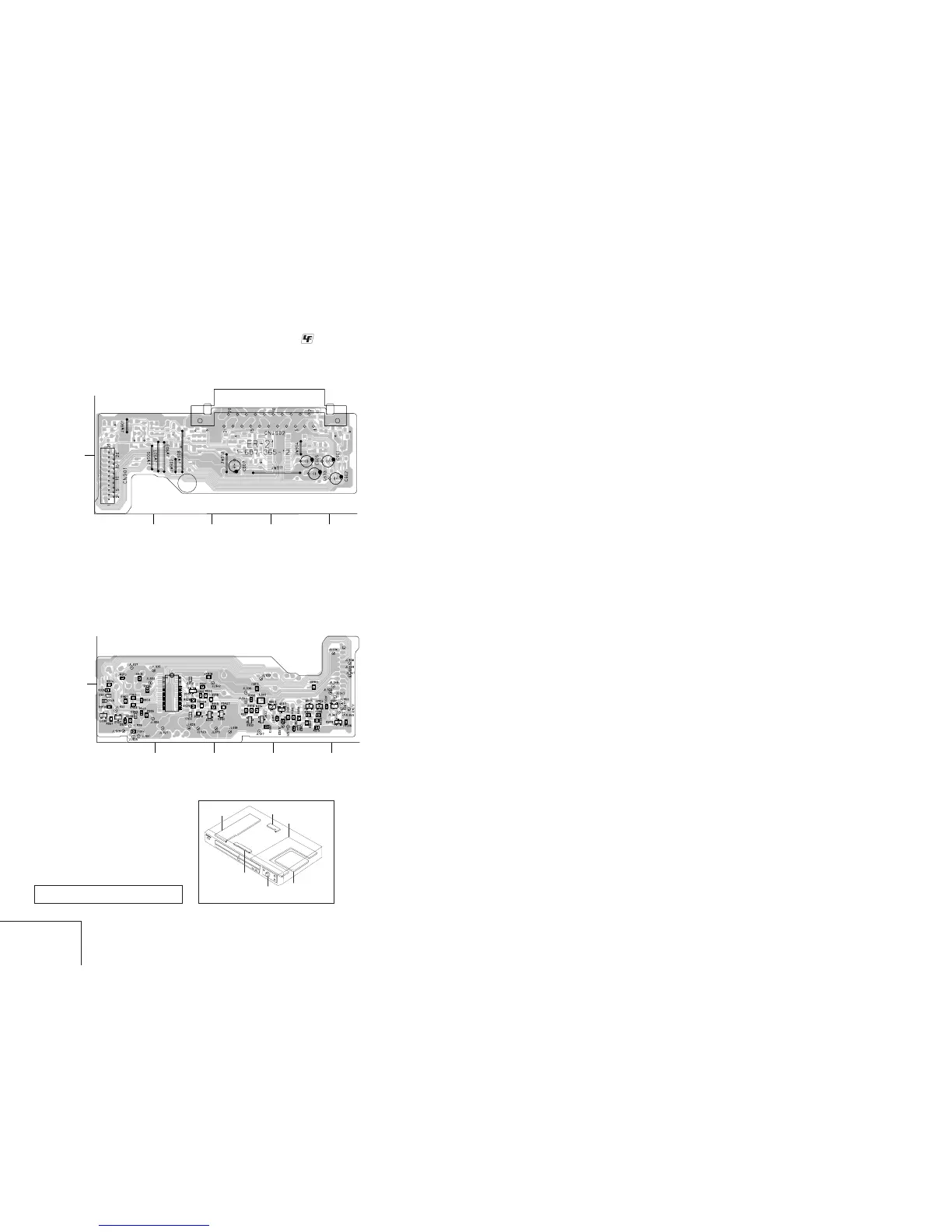

ER-21 (EURO AV) PRINTED WIRING BOARD
• : Uses unleaded solder.
ER-21 BOARD A SIDE
ER-21 BOARD
B SIDE
Q901 A-5
Q902 A-4
Q903 A-3
Q906 A-4
Q907 A-4
Q908 A-4
D901 A-3
D907 A-2
D929 A-1
D930 A-1
D932 A-3
D933 A-3
D934 A-3
D935 A-3
D936 A-1
D937 A-1
ER-21 BOARD
AF-98 board
(AUDIO/VIDEO OUT)
MB-108 board
(DVD/OD RF AMP, SERVO,
MOTORMDRIVE, AD DECODER,
SYSTEM CONTROL,
AUDIO ADC, PLL)
SW-384 board
(SWITCH)
MS-128 board
(LOADING MOTOR)
Power board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
ER-21 BOARD B SIDE
EURO AV
ER-21
B
A
1
2
5
43
B
A
1
2
5
43
