DVP-NS325/NS330/NS333/NS430/NS433/NS530/NS725P/NS730P
4-24
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
MB-108 BOARD
A SIDE
IC104 B-6
IC301 B-3
IC302 B-2
IC402 D-6
IC403 C-5
IC501 C-2
IC502 C-5
IC601 D-3
B SIDE
IC101 A-5
IC103 C-4
IC106 B-6
IC107 B-5
IC108 B-4
IC201 C-1
IC202 B-1
IC303 B-3
IC401 B-4
IC404 C-4
IC405 C-5
IC406 C-5
IC503 D-2
IC504 C-5
IC505 D-3
Q201 D-1
Q202 D-1
D201 D-1
D202 D-1
DVD/CD RF AMP,DIGITAL SERVO,MOTOR DRIVE,SERVO,AV DECODER,SD RAM, SYSTEM CONTROL,AUDIO DAC,PLL
MB-108

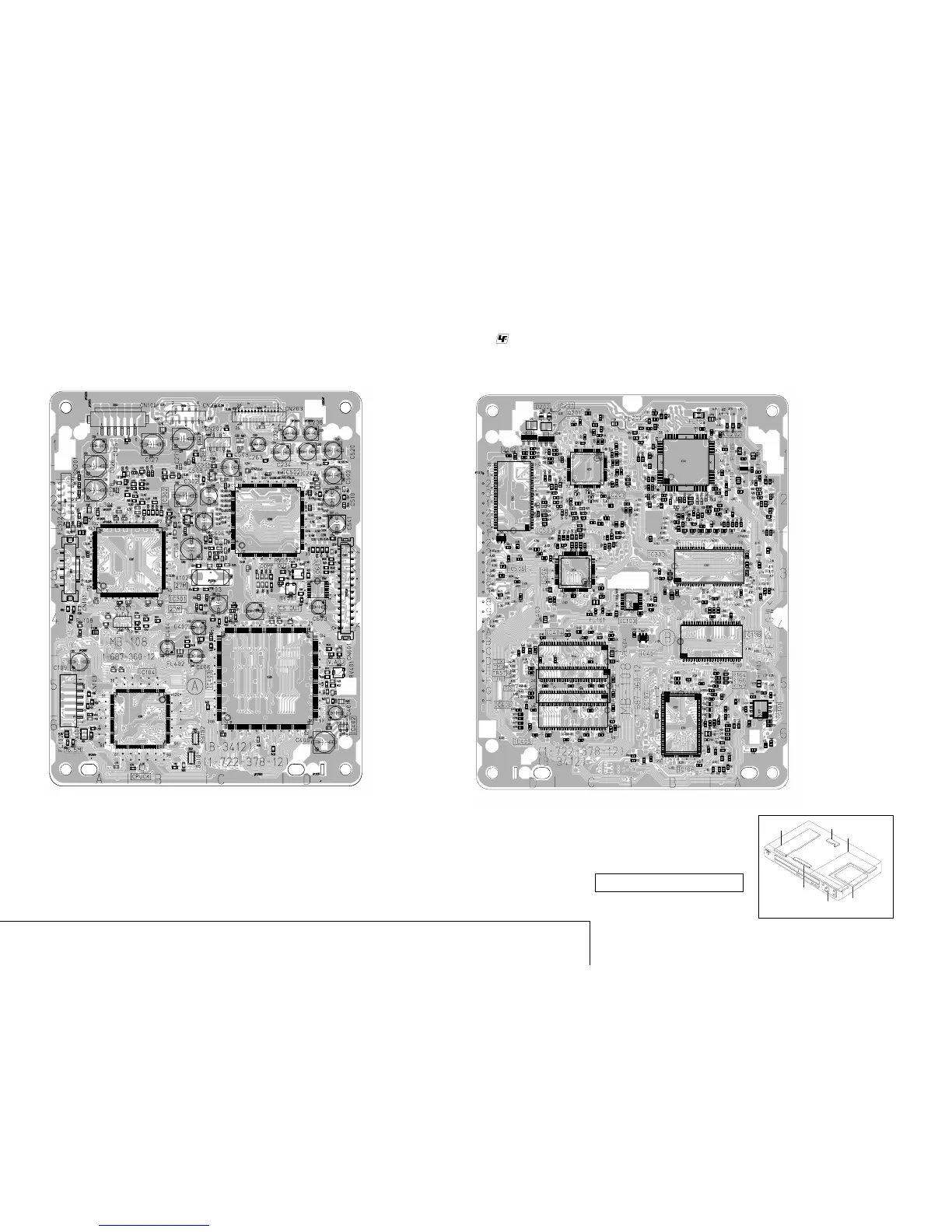

MB-108 (DVD/CD RF AMP,DIGITAL SERVO,MOTOR DRIVE,SERVO,AV DECODER,SD RAM,
SYSTEM CONTROL,AUDIO DAC,PLL) PRINTED WIRING BOARD
• : Uses unleaded solder.
MB-108 BOARD SIDE A
MB-108 BOARD SIDE B
ER-21 BOARD
(NS330/NS333/NS430/NS433)
AF-98 board
(AUDIO/VIDEO OUT)
MB-108 board
(DVD/OD RF AMP, SERVO,
MOTORMDRIVE, AD DECODER,
SYSTEM CONTROL,
AUDIO ADC, PLL)
SW-384 board
(SWITCH)
MS-128 board
(LOADING MOTOR)
Power board
4-23
