Sony RMT-D152A - Page 87

DVP-NS325/NS330/NS333/NS430/NS433/NS530/NS725P/NS730P
1
A
B
C
D
E
F
G
H
I
J
2
12
13
11
10
98765
43
14
15
4-57 4-58
For Schematic Diagram
• Refer to page 4-57 for printed wiring board of ETXNY410M0F board.
ETXNY410M0F BOARD
SW REG
-REF.NO.:5000 SERIES-
XX MARK:NO MOUNT
NO MARK:PB MODE
SW REG

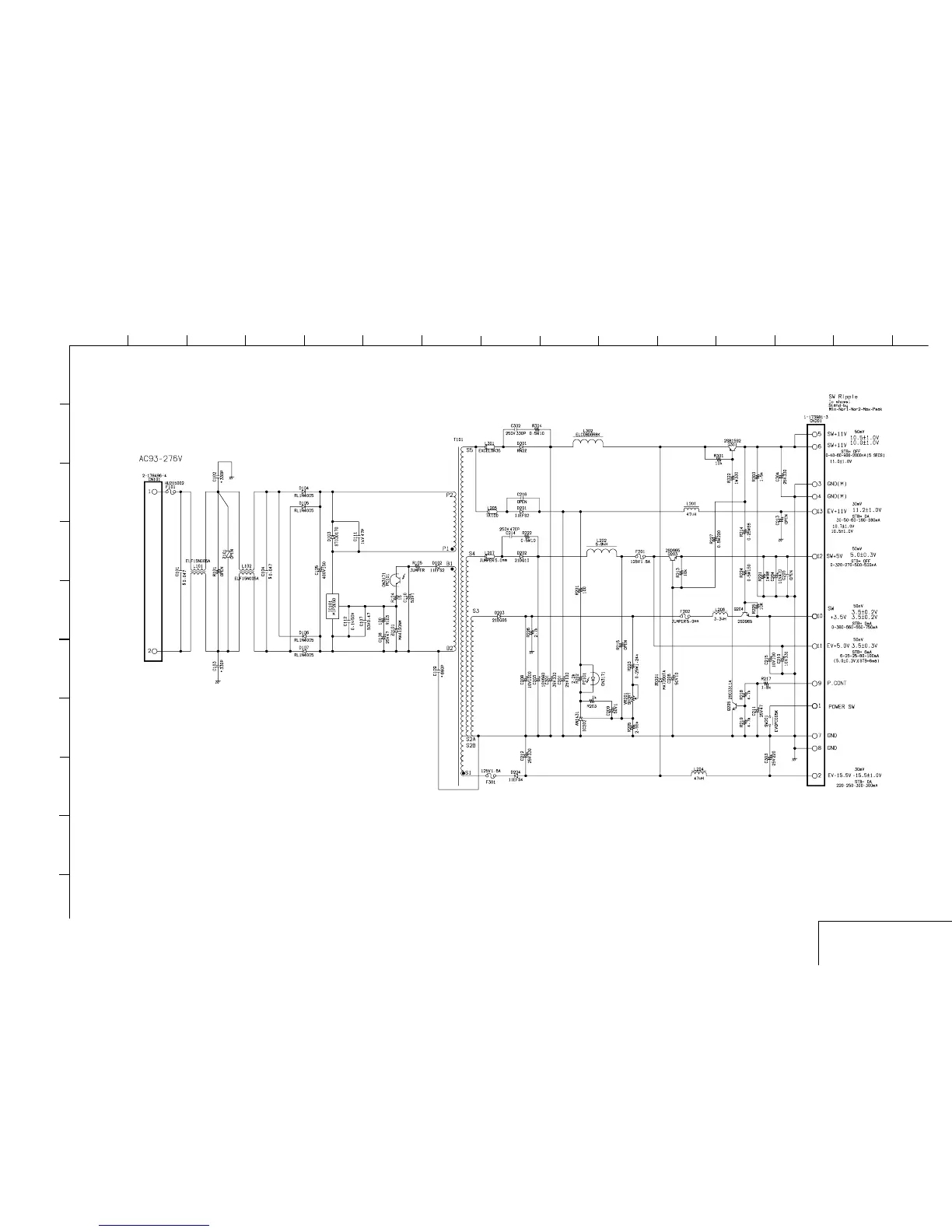

POWER BLOCK (ETXNY410M0F)
