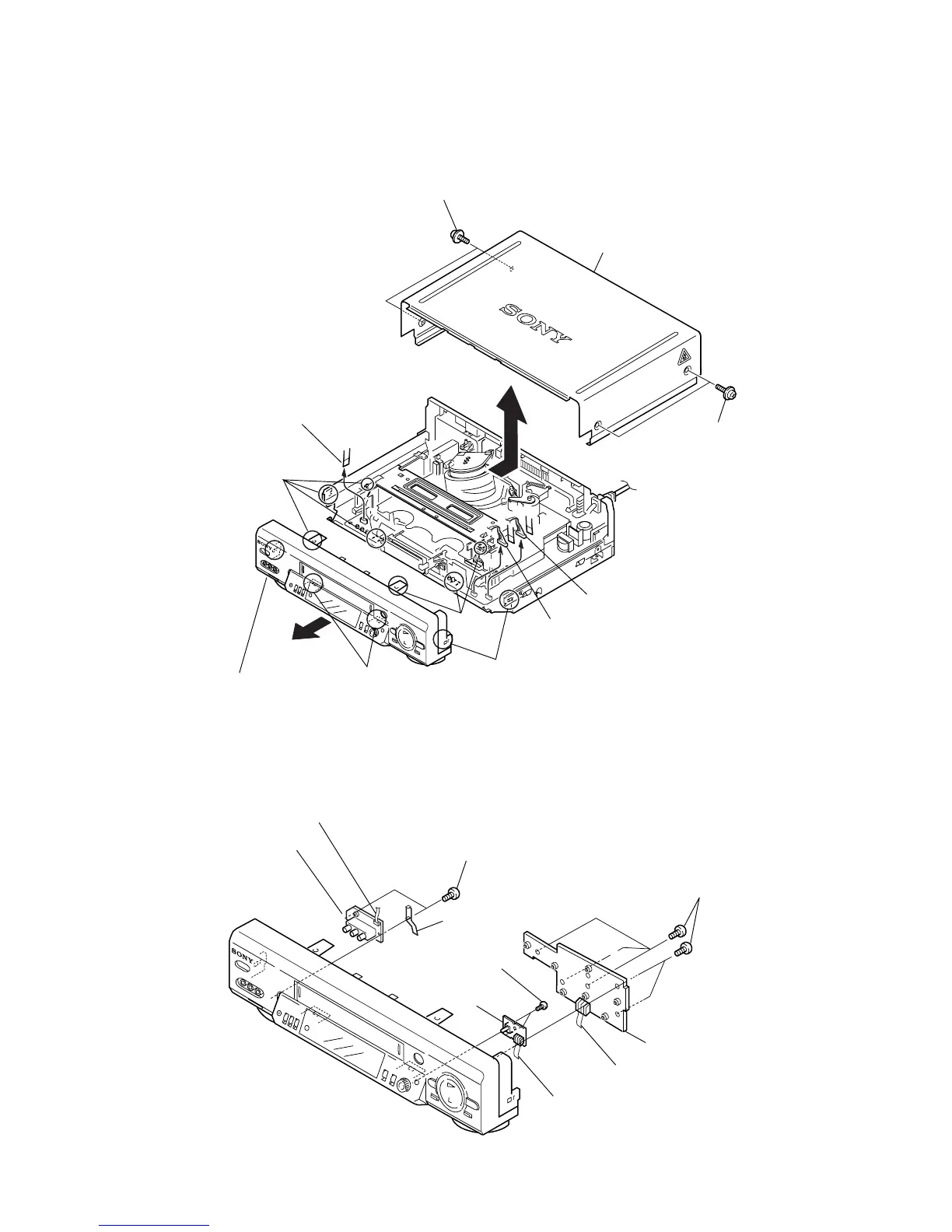

Sony SLV-ED313 - Section 2 Disassembly; Case and Front Panel Assembly; Board and Panel Disassembly

2-1
1 Two tapping screws
3
Upper case
2
Two tapping screws
5
Flat Cable FDM-010
6
Flat Cable FDI-002
4
Flat Cable FDI-002
7
Front panel
(Engaged by the six hooks)
Hooks
Hooks
Hooks
Hooks
SECTION 2
DISASSEMBLY
NOTE: Follow the disassembly procedure in the numerical order given.
9 Earth Plate
1 Five screws
(B2.6 × 8)
2 DM-98 board
3 Flat Cable FDM-010
4 DI-81 board
6 FJ-31 board
7 Flat Cable FDI-002
Two screws
(B2.6 × 8)
0
Two screws
(B2.6 × 8)
8
5 Flat Cable FDI-002
2-2. DM-98 BOARD, DI-81 BOARD, FJ-31 BOARD
SLV-ED115/ED215/ED313/ED515/ED616/ED815/ED817/ED818/ED915/ED919/EZ111/
EZ212/EZ414/EZ715/EZ717
2-1. CASE, FRONT PANEL BLOCK ASSEMBLY
