Sony SLV-ED313 - Mechanism Deck Section-1

SLV-ED115/ED215/ED313/ED515/ED616/ED815/ED817/ED818/ED915/ED919/EZ111/
EZ212/EZ414/EZ715/EZ717
8-5

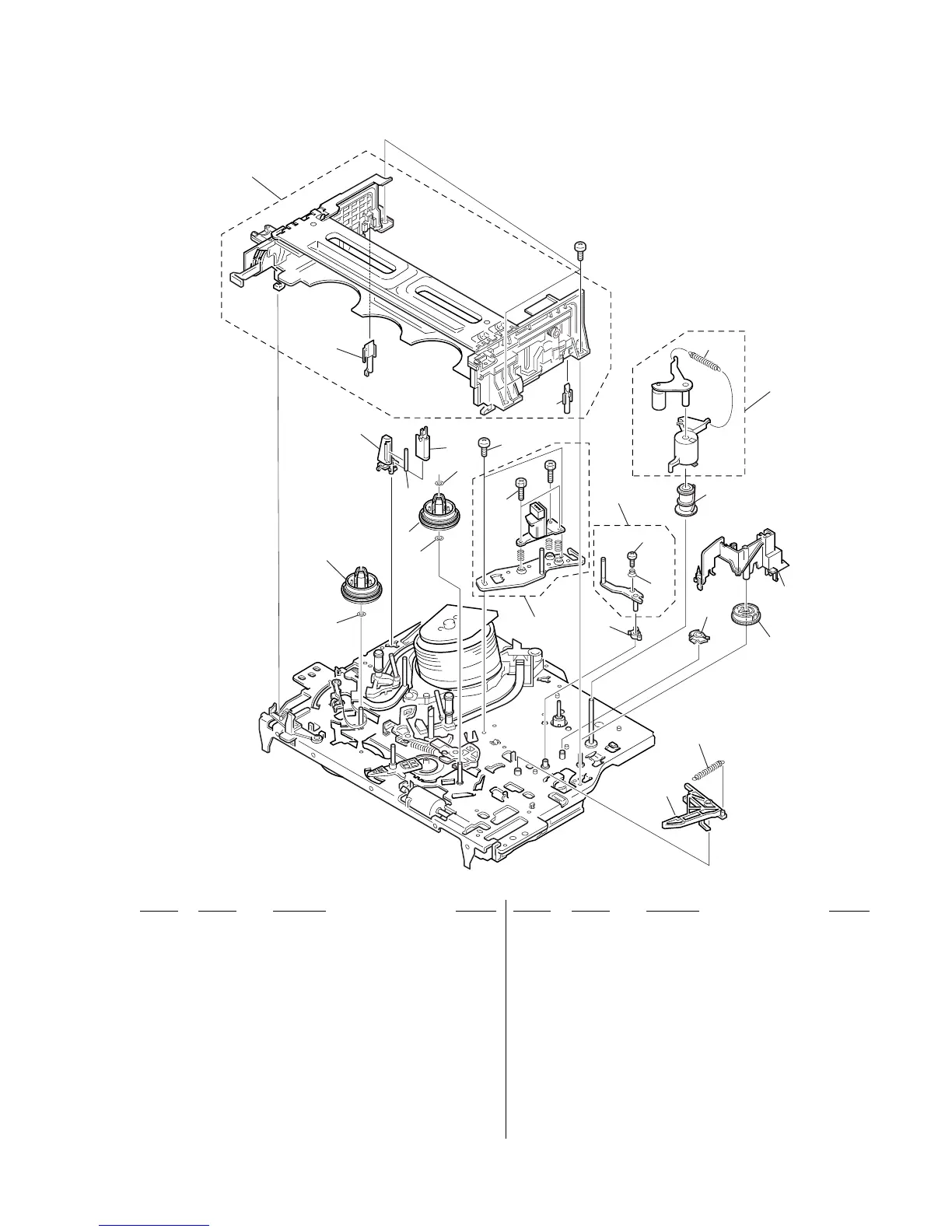

8-1-3. MECHANISM DECK SECTION-1
701
702
703
704
710
705
723
722
720
724
725
721
706
707
712
711
713
714
715
716
717
719
718
709
708
701
#2
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
701 3-977-509-01 WASHER, THRUST
702 3-977-507-01 TABLE, REEL (S)
703 3-977-508-01 TABLE, REEL (T)
704 1-500-471-11 HEAD, FE
705 3-977-495-01 SHAFT, TG2
706 3-977-494-01 HOLDER, FEH
707 A-6776-359-C FL, COMPLETE ASSY (SL)
708 3-977-535-01 PLATE, LUMINOUS (END SENSOR)
709 3-977-536-01 PLATE, LUMINOUS (TOP SENSOR)
710 3-977-443-01 WASHER, STOPPER
711 A-6759-863-B PRESS BLOCK ASSY, PINCH
712 3-958-455-01 SPRING (PINCH), TENSION
713 3-977-447-01 GEAR, ELEVATOR
714 3-063-773-02 OPENER, LID (SL)
715 3-977-441-03 GEAR, PINCH PRESSING
716 3-977-445-02 GEAR, TG8 ARM DRIVING
717 3-062-763-01 SPRING, EXTENSION (RVS BRAKE)
718 X-3950-964-1 ARM ASSY, RVS BRAKE (SL)
719 3-063-756-01 GEAR, TG8 ARM H/R
720 X-3947-590-1 TG8 ASSY
721 A-6759-620-A HEAD BLOCK ASSY, ACE (TDK) FFC
722 3-974-556-11 + HEXA TT 2.6 x 9 (TAPER)
723 3-979-508-01 SCREW + HEXA TP SW 3 x 8
724 3-059-958-01 SPRING, TG8
725 3-051-300-03 LOCK ACE SCREW
#2 7-685-646-79 SCREW + BVTP 3 x 8 TYPE2
