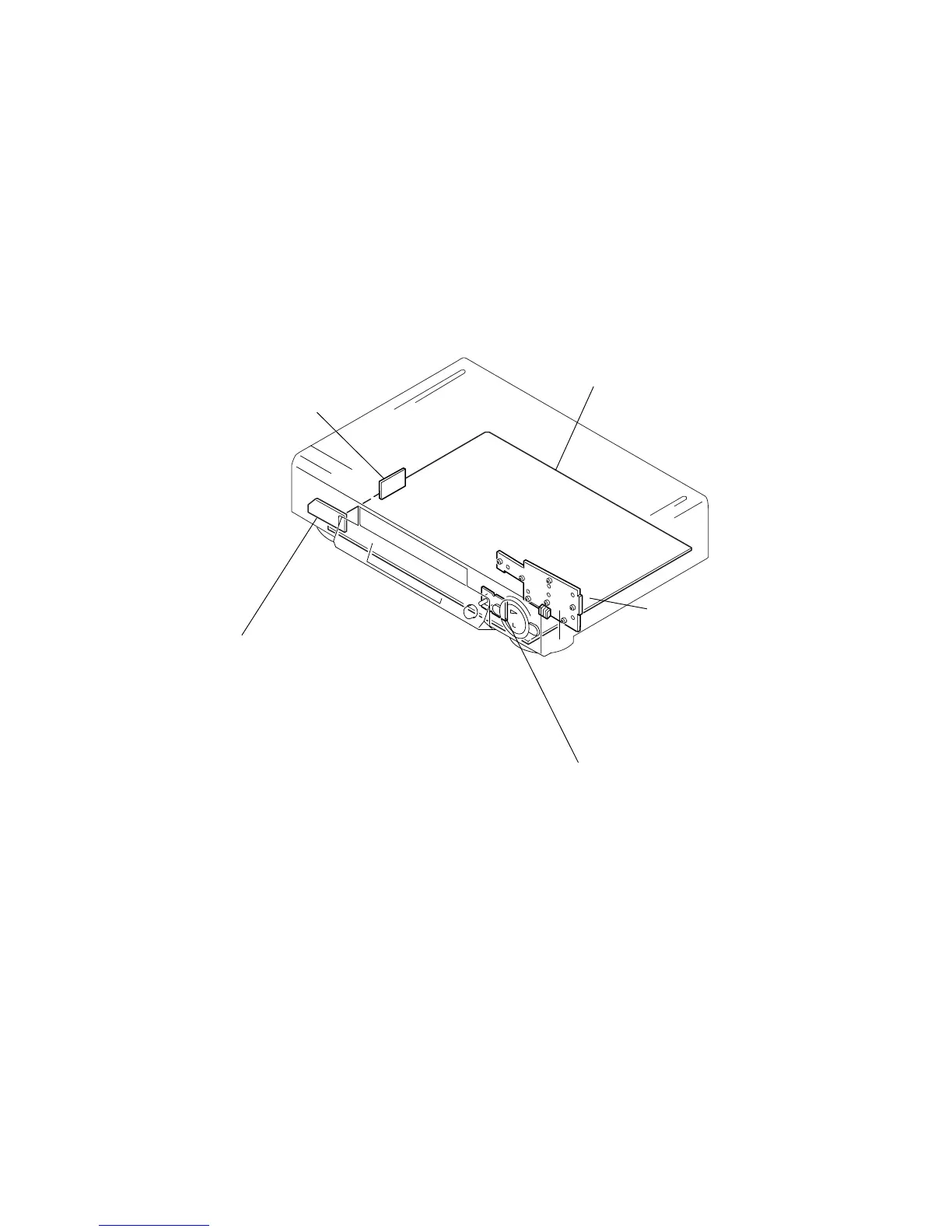

2-7. CIRCUIT BOARDS LOCATION
VIDEO, AUDIO,
SERVO/SYSTEM CONTROL,
TUNER, POWER SUPPLY
FJ-31 (LINE 2 IN)
GK-12 (ZWEITON)
(EZ715AS/EZ717AS)
NK-11 (NICAM)
(ED915/ED919/
EZ715NZ/EZ717NZ)
DI-81 (DIAL TIMER)
DM-98 (USER CONTROL)
MA-402
()
2-5E
