SLV-ED115/ED215/ED313/ED515/ED616/ED815/ED817/ED818/ED915/ED919/EZ111/EZ212/EZ414/EZ715/EZ717
8-1 8-2
SECTION 8
REPAIR PARTS LIST
8-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.

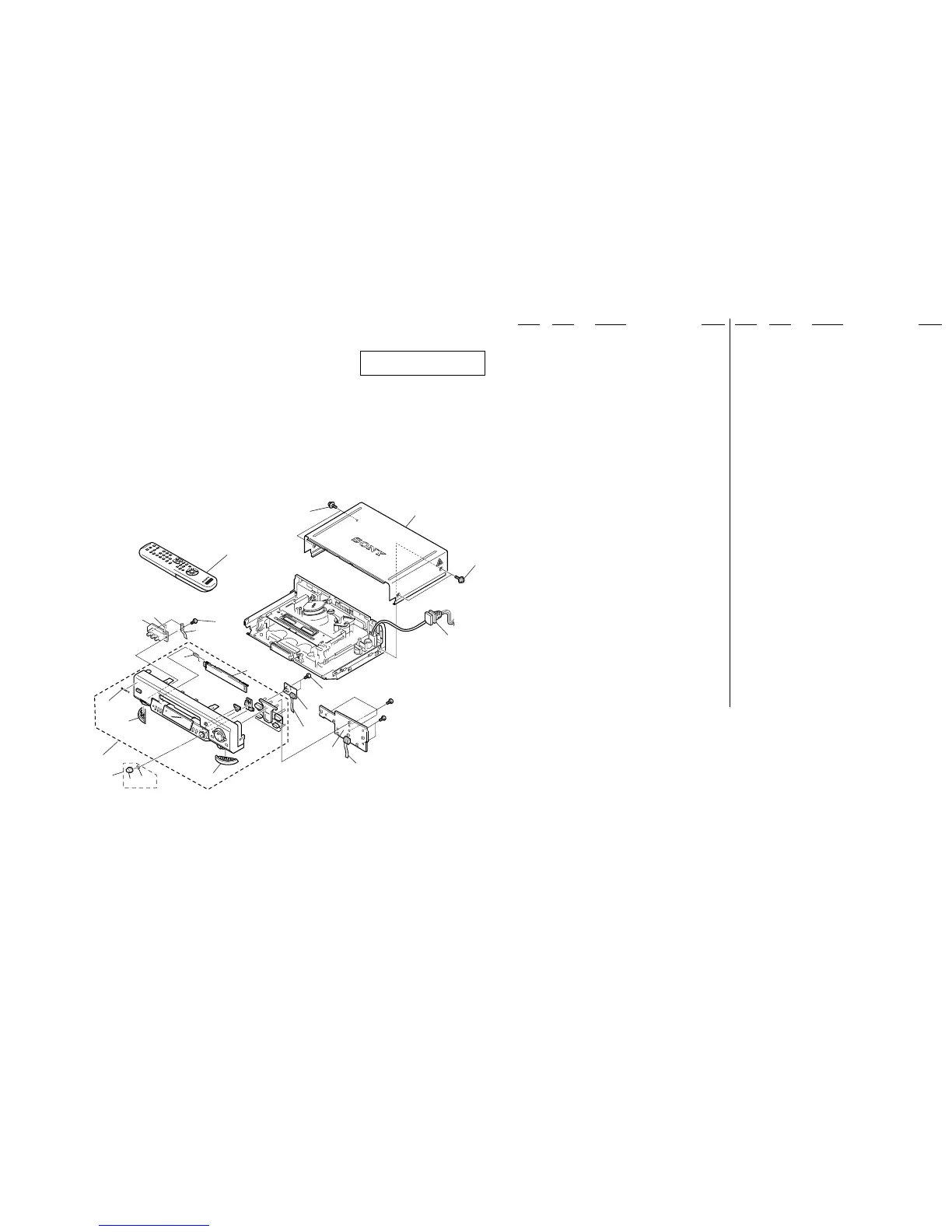

8-1-1. FRONT PANEL AND UPPER CASE SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
VIDEO
1
13
14
2
3
3
3
18
5
4
6
7
8
7
10
11
9
11
12
17
17
16
15
not supplied
1 X-3951-336-1 PANEL ASSY, FRONT (EZ414)
1 X-3951-337-1 PANEL ASSY, FRONT (EZ212)
1 X-3951-338-1 PANEL ASSY, FRONT (EZ111)
1 X-3951-346-1 PANEL ASSY, FRONT (ED515)
1 X-3951-347-1 PANEL ASSY, FRONT (ED215)
1 X-3951-348-1 PANEL ASSY, FRONT (ED115)
1 X-3951-349-1 PANEL ASSY, FRONT (ED818)
1 X-3951-350-1 PANEL ASSY, FRONT (ED616: ME, SG)
1 X-3951-351-1 PANEL ASSY, FRONT (ED616 MJ)
1 X-3951-352-1 PANEL ASSY, FRONT (ED313: ME, SG)
1 X-3951-353-1 PANEL ASSY, FRONT (ED313 MJ)
1 X-3951-354-1 PANEL ASSY, FRONT (EZ717)
1 X-3951-355-1 PANEL ASSY, FRONT (EZ715)
1 X-3951-362-1 PANEL ASSY, FRONT (ED915)
1 X-3951-363-1 PANEL ASSY, FRONT (ED919)
1 X-3951-364-1 PANEL ASSY, FRONT (ED817)
1 X-3951-365-1 PANEL ASSY, FRONT (ED815)
2 3-953-432-01 SPRING (GE), FL
3 4-921-277-41 SCREW (B2.6 x 8), TAPPING, BIND
* 4 A-6713-876-A DM-098 COMPLETE PWB
5 1-757-552-12 FLAT CABLE FDM-010
* 6 A-6713-877-A DI-081 COPLETE PWB
7 1-757-553-11 FLAT CABLE FDI-002
* 8 A-6713-870-A FJ-031 COMPLETE PWB
(ED115/ED215/ED313/ED815/ED817/EZ111/
EZ212/EZ414)
* 8 A-6713-878-A FJ-031 COMPLETE PWB
(ED515/ED616/EZ715/EZ717)
* 8 A-6713-889-A FJ-031 COMPLETE PWB
(ED818/ED915/ED919)
! 9 1-757-665-11 CORD, POWER
(ED115/ED215/ED313/ED515/ED616/ED815/
ED817/ED818/ED915/ED919)
! 9 1-777-855-51 CORD, POWER
(EZ111/EZ212/EZ414/EZ715/EZ717)
10 3-064-641-41 CASE, UPPER
(ED215/ED515/ED616: ME, SG/ED815/ED817/
ED818: ME, SG/ED915/ED919/EZ715/EZ717)
10 3-064-641-71 CASE, UPPER (ED115/ED313: ME, SG)
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
10 3-064-651-01 CASE, UPPER (ED313 MJ)
10 3-064-651-11 CASE, UPPER (ED616 MJ)
11 3-710-901-11 SCREW, TAPPING
(ED115/ED313/EZ111/EZ212/EZ414)
11 3-710-901-61 SCREW, TAPPING
(ED215/ED515/ED616/ED815/ED817/ED818/
ED915/ED919/EZ715/EZ717)
12 1-476-473-11 COMMANDER, STANDARD (RMT V-309) (EZ717)
12 1-476-475-11 COMMANDER, STANDARD (RMT V-311)
(ED115/ED215/ED313/ED515/ED815)
12 1-476-475-21 COMMANDER, STANDARD (RMT V-311A)
12 1-476-475-31 COMMANDER, STANDARD (RMT V-311B)
(ED616/ED818)
12 1-476-175-41 COMMANDER, STANDARD (RMT V-311C)
(ED919)
12 1-476-475-51 COMMANDER, STANDARD (RMT V-311D)
(EZ212/EZ414)
12 1-476-475-61 COMMANDER, STANDARD (RMT V-311E)
(EZ111/EZ715)
13 3-943-995-01 EMBLEM (NO.5), SONY
(ED115/ED313/EZ111/EZ212/EZ414)
13 3-943-995-31 EMBLEM (NO.5), SONY
(ED215/ED515/ED616/ED815/ED817/ED818/
ED915/ED919/EZ715/EZ717)
14 X-3951-233-1 KNOB ASSY, ETR
(ED215/ED515/ED616: ME, SG/ED815/ED817/
ED818/ED915/ED919/EZ715/EZ717)
14 X-3951-232-1 KNOB ASSY, ETR
(ED115/ED313: ME, SG/EZ111/EZ212/EZ414)
14 X-3951-464-1 KNOB ASSY, ETR (ED313 MJ)
14 X-3951-465-1 KNOB ASSY, ETR (ED616 MJ)
15 3-065-547-31 KNOB, ETR
(ED115/ED313: ME, SG/EZ111/EZ212/EZ414)
16 3-055-077-1 SPRING, ETR (P5)
17 3-057-164-01 INSULATOR
(ED115/ED313/EZ111/EZ212/EZ414)
17 3-057-164-11 INSULATOR
(ED215/ED515/ED616/ED815/ED817/ED8185/
ED915/ED919/EZ717/EZ715)
18 3-057-165-01 PLATE, EARTH
To Next Page
