SLV-ED115/ED215/ED313/ED515/ED616/ED815/ED817/ED818/ED915/ED919/EZ111/EZ212/EZ414/EZ715/EZ717

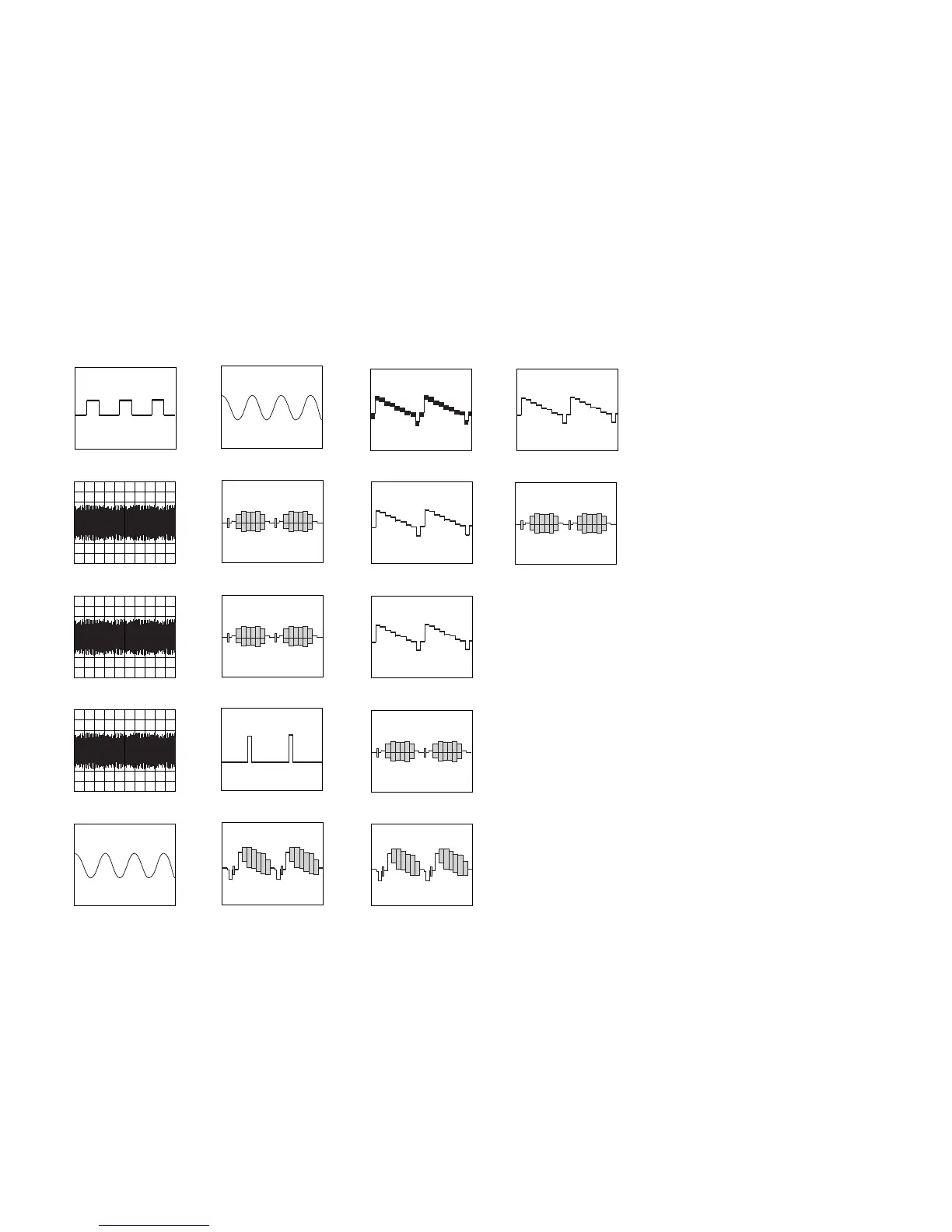

1 IC201 ia REC/PB
5.3 Vp-p (H)
2 IC201 ih, il REC
40 mVp-p (H)
3 IC201 ul PB
720 mVp-p (H)
4 IC201 uk PB
640 mVp-p (H)
5 IC201 ug REC/PB
496 mVp-p (4.43 MHz) (PAL)
6 IC201 ua REC/PB
608 mVp-p (3.58 MHz) (NTSC)
7 IC201 y; REC/PB
320 mVp-p (H)
8 IC201 tk REC/PB
REC: 512 mVp-p (H)
PB : 584 mVp-p (H)
9 IC201 t; REC/PB
4.6 Vp-p (H)
q; IC201 e; REC/PB
1.1 Vp-p (H)
qa IC201 wh REC/PB
REC: 512 mVp-p (H)
PB : 584 mVp-p (H)
qs IC201 qk, ql, wd REC/PB
REC: 472 mVp-p (H)
PB : 504 mVp-p (H)
qd IC201 wa REC/PB
392 mVp-p (H)
qf IC291 w; PB
152 mVp-p (H)
qg IC291 4, qk REC
2.1 Vp-p (H)
qh IC291 qk PB
1.9 Vp-p (H)
qj IC291 4 PB
2.2 Vp-p (H)
MA-402 BOARD (1/8)
(VIDEO, AUDIO BLOCK)
