Sony SLV-ED313 - Page 42

A
123456789101112
13 14
B
C
D
E
F
G
H
I
J
SLV-ED115/ED215/ED313/ED515/ED616/ED815/ED817/ED818/ED915/ED919/EZ111/EZ212/EZ414/EZ715/EZ717
MA-402 BOARD (2/8)
(SYSTEM CONTROL)
4-15 4-16

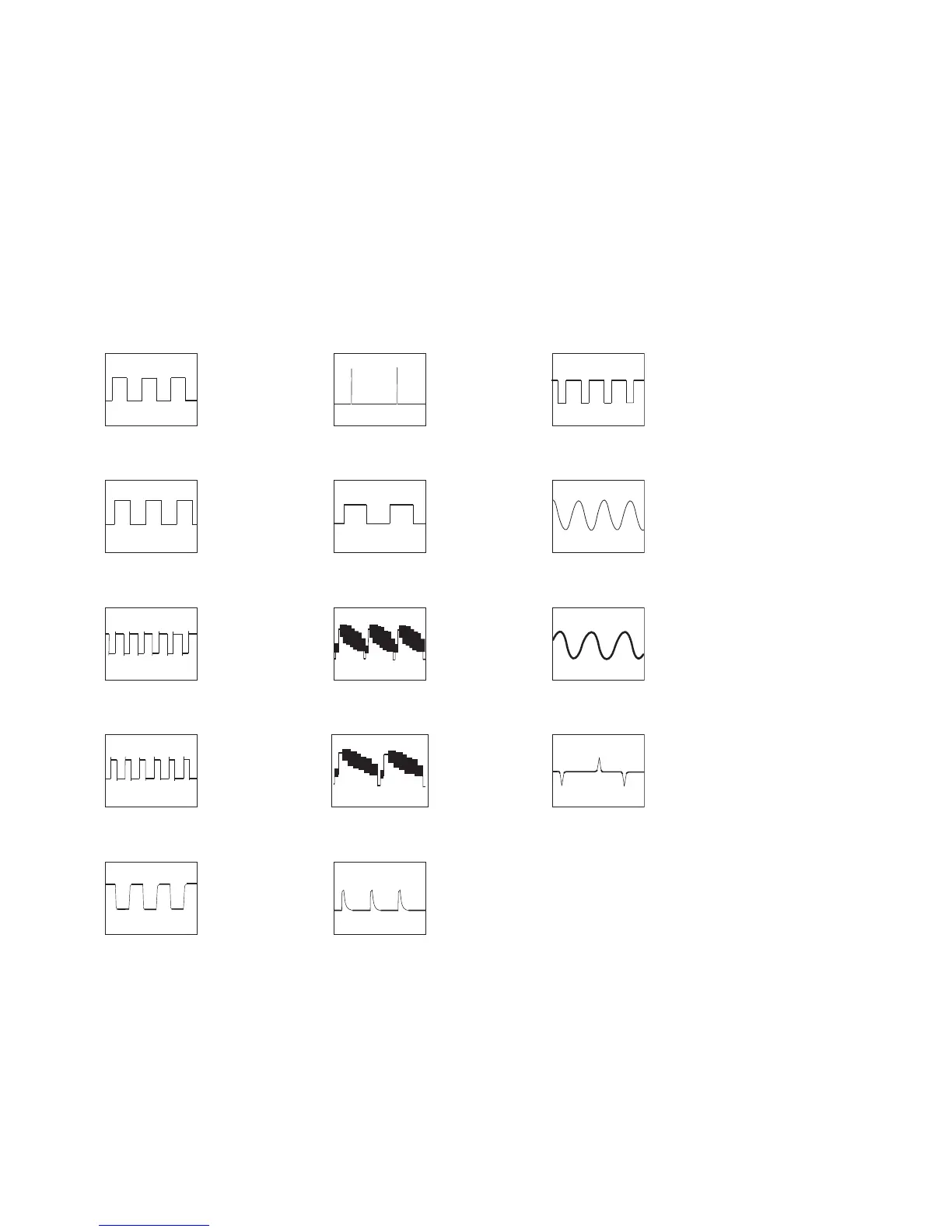

1 IC101 6 REC/PB
5.0 Vp-p (25Hz)
2 IC101 5 REC/PB
5.0 Vp-p (25Hz)
3 IC101 3 REC
4.64 Vp-p (25Hz)
4 IC101 4 REC
4.64 Vp-p (25Hz)
5 IC101 4 REC
5.0 Vp-p (25Hz)
6 IC101 3 REC/PB
5.0 Vp-p (25Hz)
7 IC101 9 REC/PB
3.8 Vp-p
8 IC101 ) REC/PB
2.36 Vp-p (15.7 KHz)
9 IC101 + REC/PB
2.16 Vp-p (15.7 KHz)
0 IC101 ! REC/PB
4.32 Vp-p (15.7 KHz)
!™ IC101 _ REC/PB
2.6 Vp-p (31.847KHz)
!£ IC101 } REC/PB
4.3 Vp-p (10 MHz)
!¢ JL 192 PB
4.64 Vp-p (25 Hz)
!¡ IC101 E REC/PB
5.0 Vp-p (25Hz)
