Sony SS-CTF500 - AMP-DSP BOARD (SA-WSF200;WSF500)

SA-WSF200/WSF500/SS-CTF500/F500/TSF200/TSF500
SA-WSF200/WSF500/SS-CTF500/F500/TSF200/TSF500
1111

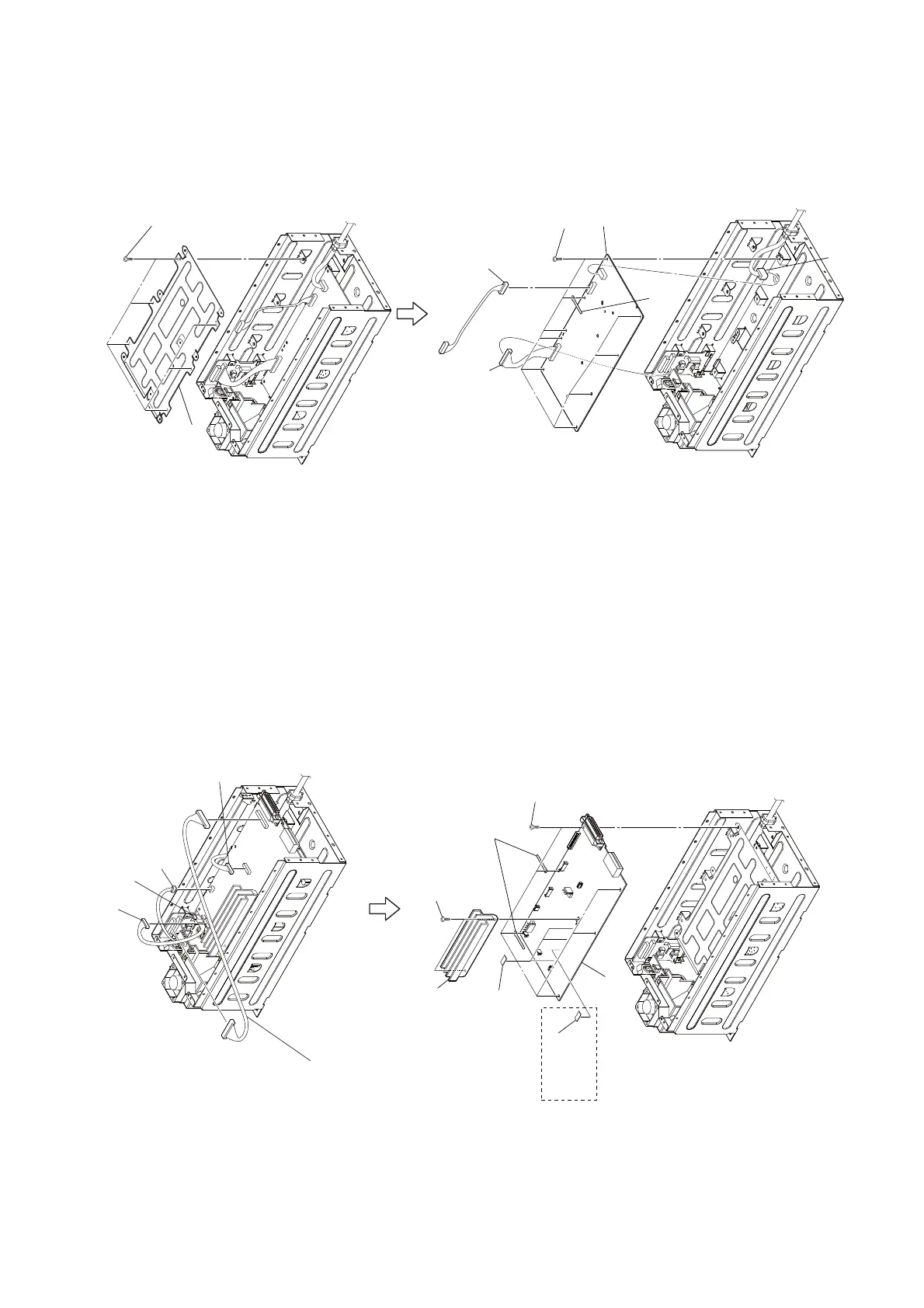

3-6. AMP-DSP BOARD (SA-WSF200/WSF500)

heat sink (WS)

two screws
(BVTP3
×
16)

three sheet radiations

two clamps

six screws
(BV3)
RB
AMP-DSP board
(SA-WSF500)

sheet radiation

connector (CN205: SA-WSF200/CN207: SA-WSF500)

fan connector (CN551)

connector (CN531)

connector (CN204)

harness
(AMP-DSP board: CN602/REG board: CN031)
Note: Please remove the heat sink (ws) vertically because sheet radiation is not damaged.

six screws
(BV3)

chassis sub (WS)

POWER boar
d

clamp

connector
(CN904)

nine screws
(BV3)

power cord connector
(CN901)

connector
(CN1001)
3-7. POWER BOARD (SA-WSF200/WSF500)
