MAIN BOARD SERVICE POSITION
• In checking the MAIN board, prepare extension jig (Part No. J-2501-243-A: 1.00 mm pitch, 17 cores, length 300 mm).
Note:
Pleaese connect it afrer taking out MAIN board, DMB-FIT board and DVD mechanism block of the set referring to Section 3 Disassembly
(page 10)

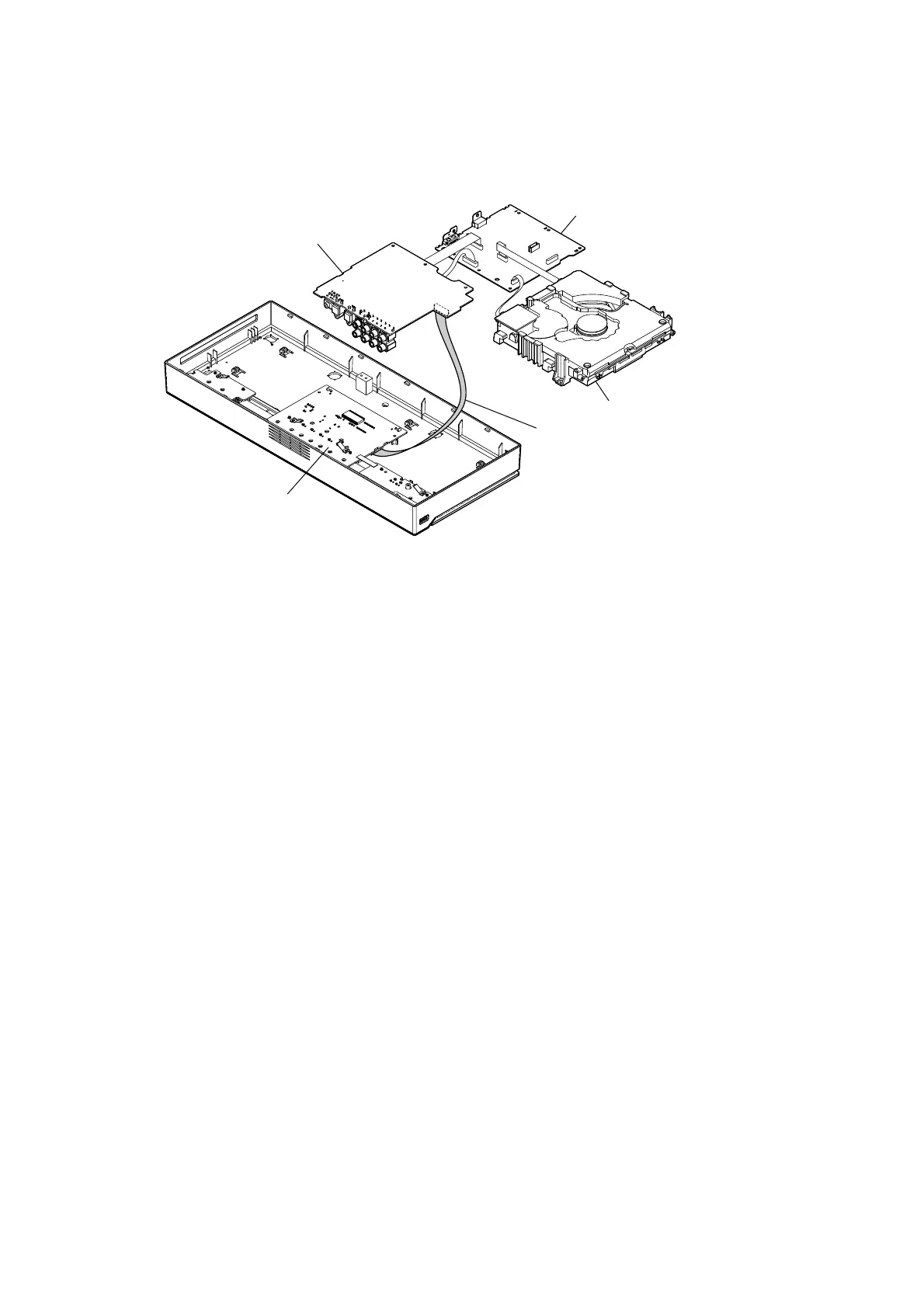

Connect extension jig (J-2501-243-A)
to the MAIN board (CN103) and FL board (CN806).
FL board
DVD mechanism block
DMB-FIT board
MAIN board
