36
SA-WSF200/WSF500/SS-CTF500/F500/TSF200/TSF500
SECTION 5
EXPLODED VIEWS

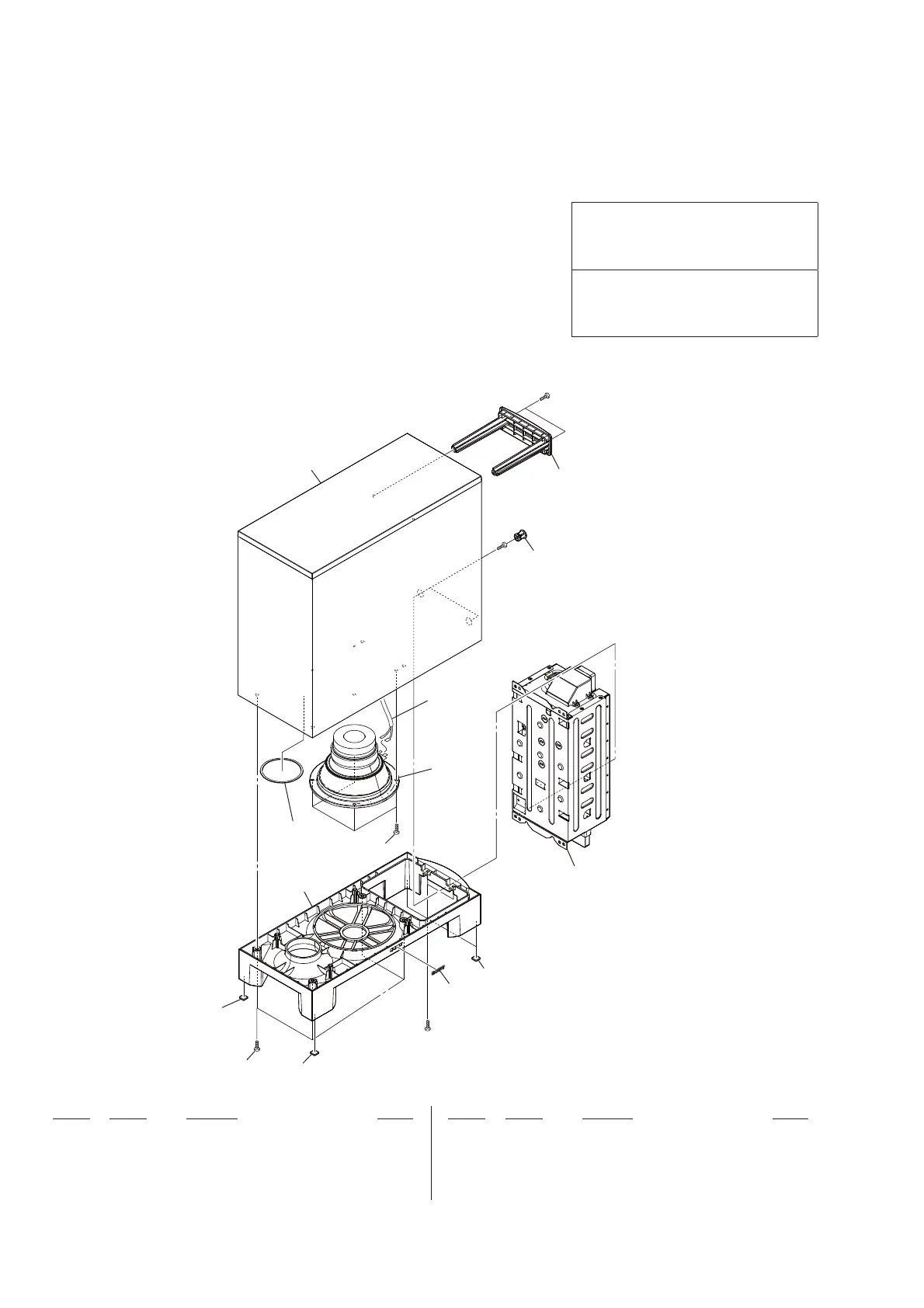

5-1. CABINET SECTION (SA-WSF200/WSF500)
1 4-998-417-02 EMBLEM (NO.5), SONY
2 4-251-067-01 PACKING (AL FRONT)
3 4-229-966-02 SCREW (4X16), +BV TAPPING
4 A-1547-772-B CABINET ASSY, SPEAKER
5 3-292-673-01 CAP
SP001 1-826-909-11 LOUDSPEAKER (16 cm)
#1 7-682-564-09 SCREW +B 4X14
#4 7-682-562-09 SCREW +B 4X10
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : 240V AC area in E model
E15 : Iranian model
E32 : Latin American model
(110 – 240V AC area)
EA : Saudi Arabia model
KR : Korean model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
3
2
2
1
3
5
4
2
not supplied
AMP complete ass
y
not supplied
not supplied
SP001
#4
#1
#1
not supplied
MX : Mexican model
RU : Russian model
SP
: Singapore model
TH : Thai model
TW : Taiwan model
Ver. 1.1
