Sony SS-CTF500 - MAIN BOARD BLOCK

HCD-F200/F500
15

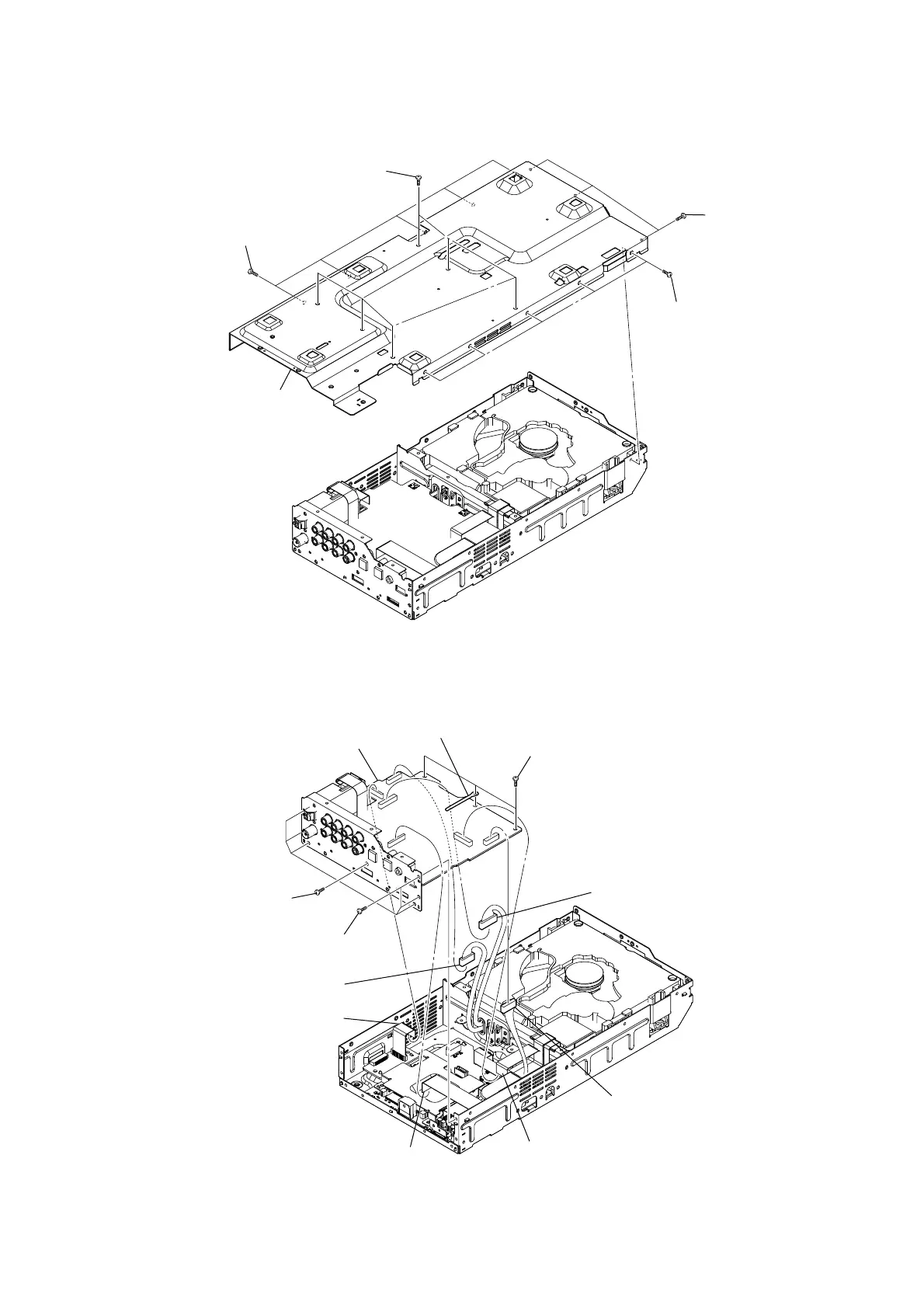

3-8. SHIELD PLATE (FRONT)
3-9. MAIN BOARD BLOCK

five screws
(BVTP3
×
6)

five screws
(BVTP3
×
6)

six screws
(BVTP3
×
6)

three screws
(BVTP3
×
6)

shield plate (front)

six screws
(BVTP3
×
6)
RB
MAIN board block
R
screw
(BVTT3
×
8)

three screws
(BVTP3
×
6)

clamp

connector (CN708)

system cable connector (CN107)

connector (CN105)

wire (flat type)
(CN103)

system cable connector
(CN702)

wire (flat type)
(CN106)
