Sony SS-CTF500 - MAIN BLOCK

HCD-F200/F500
14

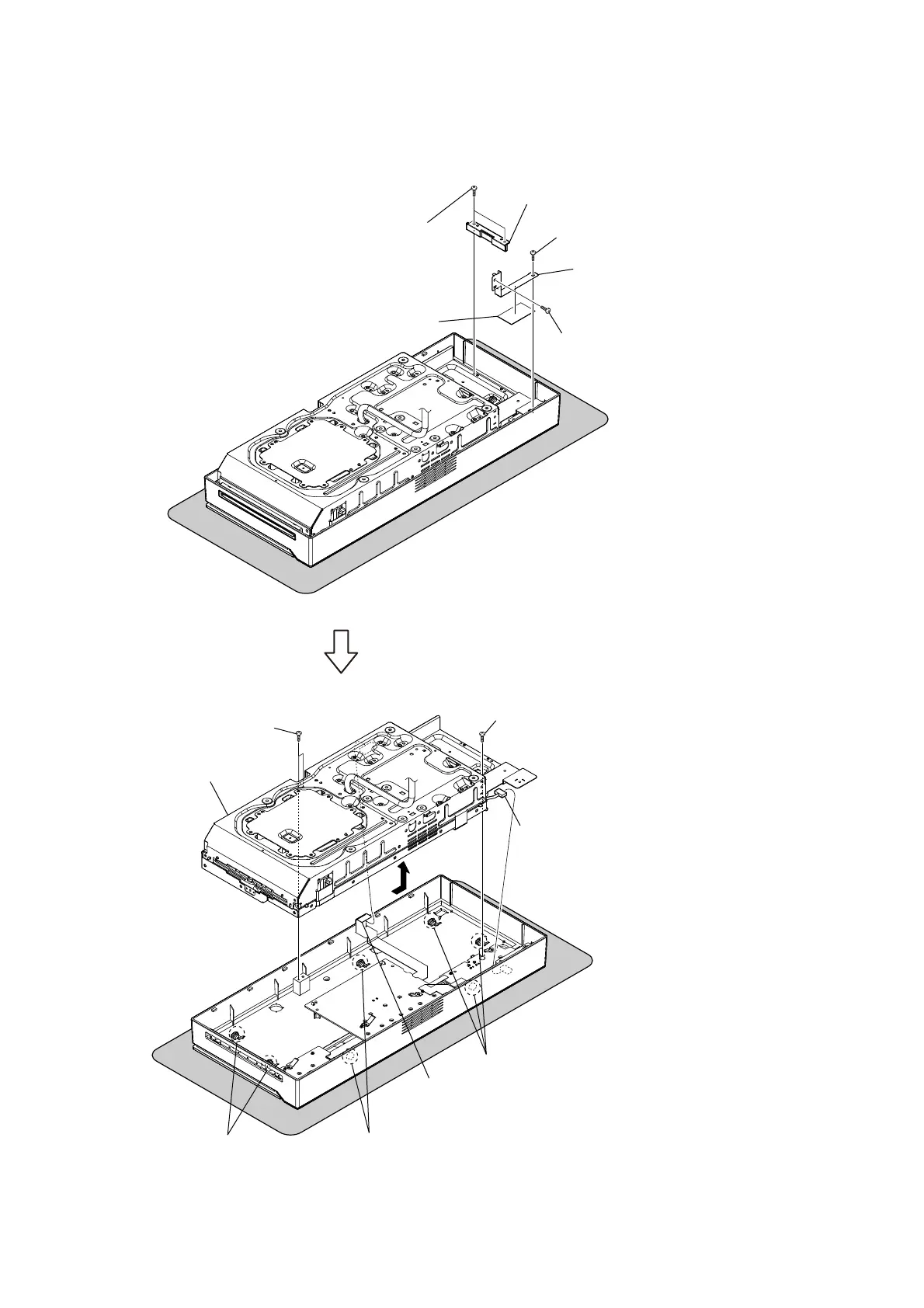

3-7. MAIN BLOCK
Note: Please spread a seat under a set not to injure front panel assy.

screw
(BVTP3
×
6)

screw
(BVTP3
×
6)

two screws
(BVTP3
×
8)

screw
(BVTP3
×
8)

wire (flat type) (17 core)
(CN851)
RB
three claws
RE
main block

ground plate (bridge)

two screws
(BVTP3
×
6)

bracket shield-F (HCD)
– rear view –
– rear view –

tape (rong BU)

connector
(CN502)
RT
RB
two claws
RB
two claws
