HCD-F200/F500
16

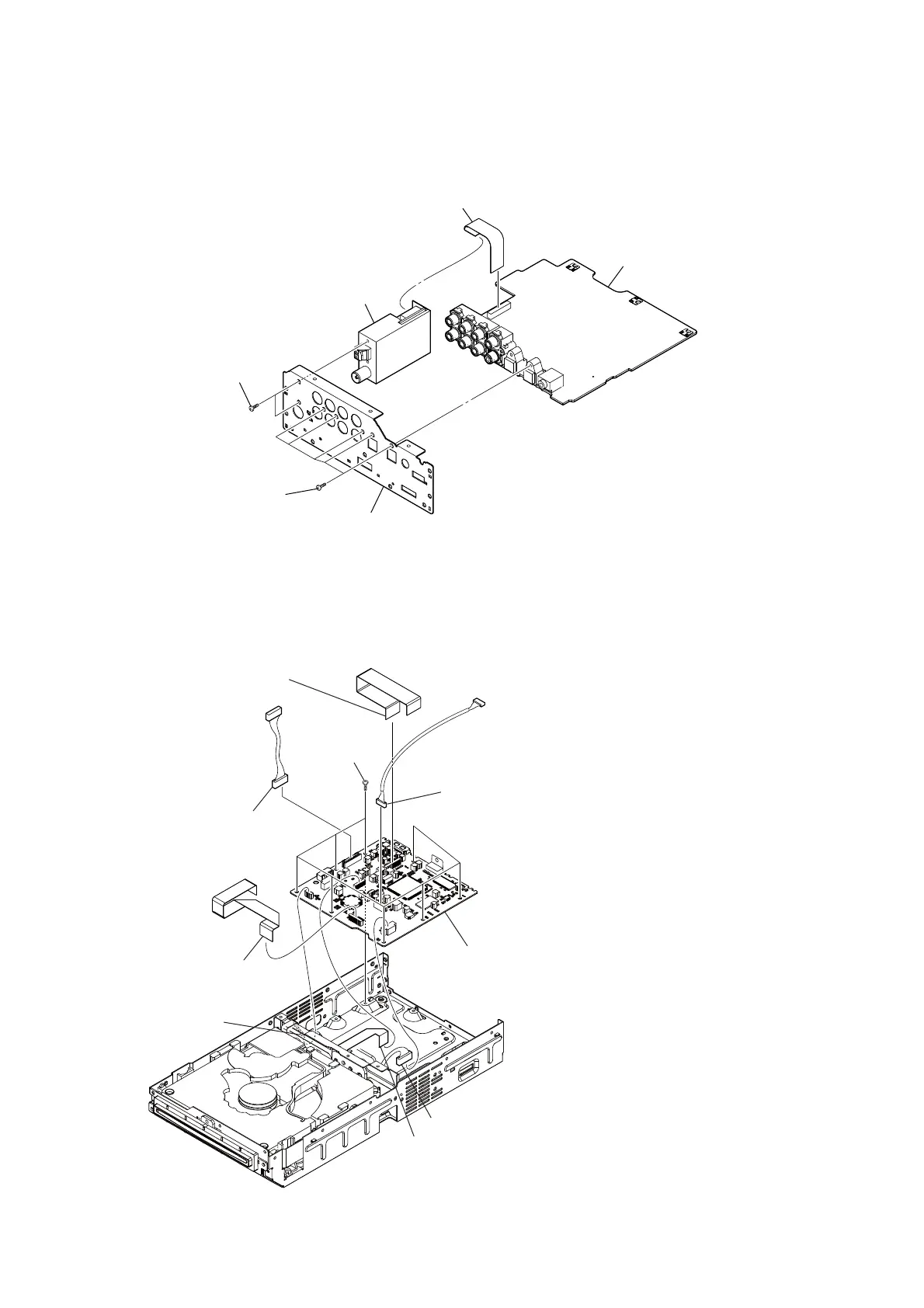

3-10. MAIN BOARD
3-11. DMB-FIT BOARD
two screws
(BVTT3
×
8)
five screws
(BVTP3
×
8)
tuner (FM)
shield plate (left)
wire (flat type)
(MAIN board:
CN101 (F200: AEP, UK/F500: RU)/
CN102 (F200: SP, TH/F500: CND, E3, E15, E32, EA, MX, SP, TW, KR, TH, AUS),
tuner (FM))
MAIN board
eight screws
(BVTP3
×
6)
harness (CN1101)
harness (CN602)
wire (flat type)
(CN4301)
wire (flat type)
(CN110)
wire (flat type)
(CN202)
wire (flat type)
(CN101)
DMB-FIT board
connector (CN201)
Note: Be sure to execute a solder bridge as a measure against
static electricity when removing the flexible flat cable (24 core).
(Otherwise, the OP block will be destroyed.)
(Refer to 3-4. Process in the Solder Bridge)
Ver. 1.1
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : 240V AC area in E model
E15 : Iranian model
E32 : Latin American model (110 – 240V AC area)
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
TH : Thai model
TW : Taiwan model
