Sony SS-CTF500 - ELECTRICAL DISCHARGE PROCESSING (SA-WSF200;WSF500)

SA-WSF200/WSF500/SS-CTF500/F500/TSF200/TSF500
6
L101
L102
L103
L104
–
SPEAKER Board (Component Side) –
bond

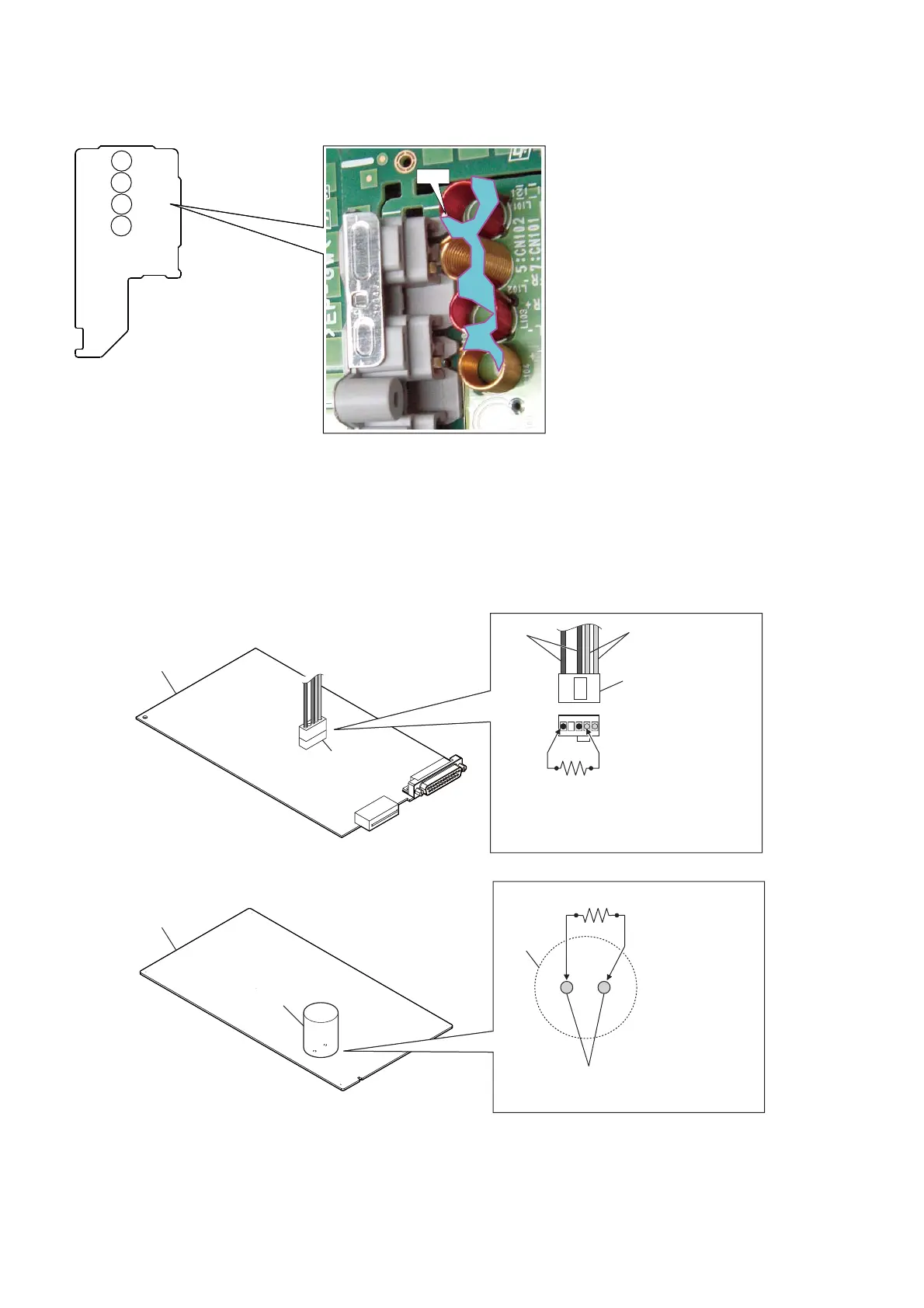

ELECTRICAL DISCHARGE PROCESSING (SA-WSF200/WSF500)
C903
800 /2W
800 /2W
red
black
connector
In checking the board, connect the lead of red
and black by resistance for electric shock
prevention.
C903
In checking the board, make a capacitor
discharge of C903 for electric shock
prevention.
CN204
AMP-DSP board
POWER board
