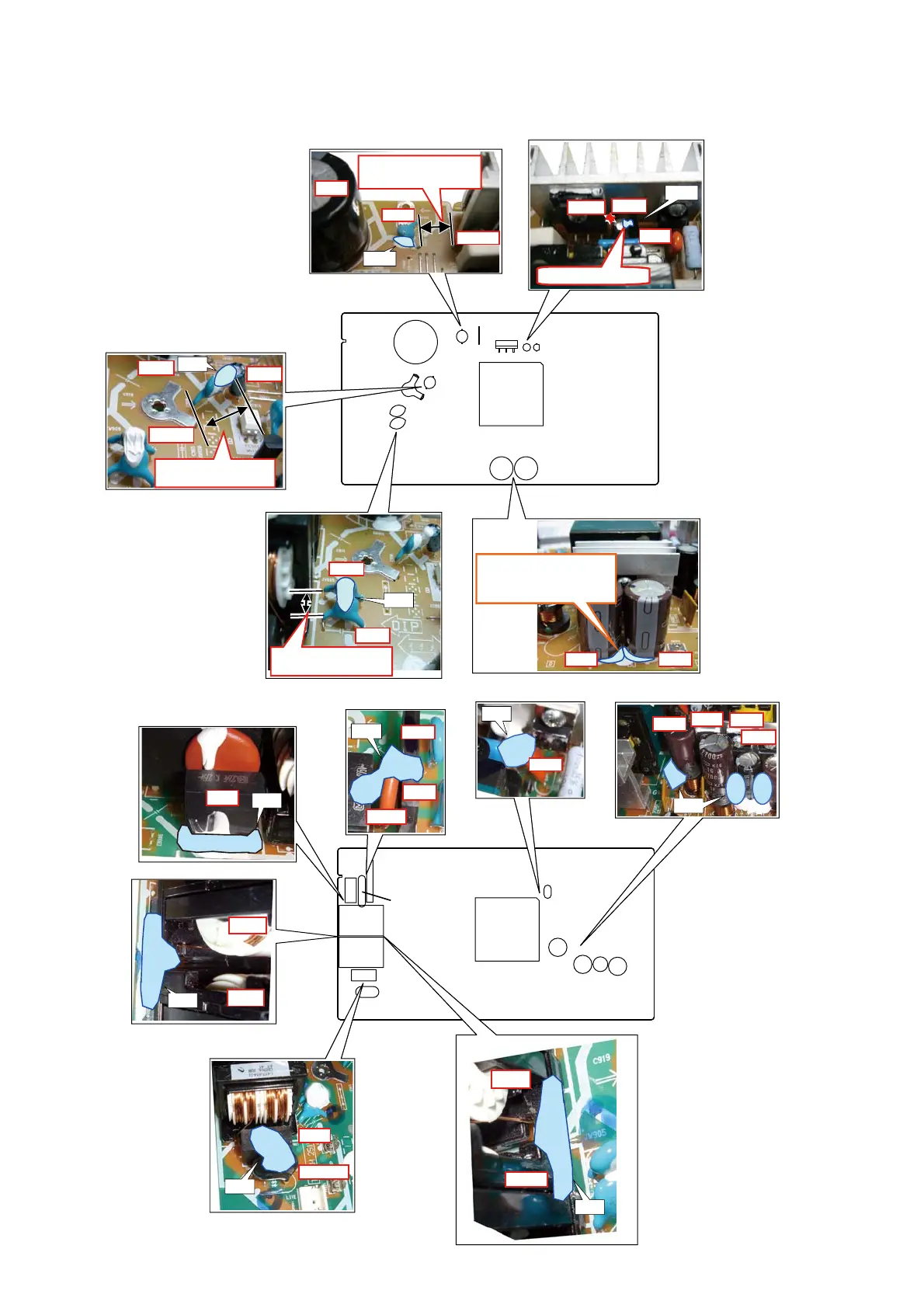

Sony SS-CTF500 - POWER Board (Component Side)

SA-WSF200/WSF500/SS-CTF500/F500/TSF200/TSF500
5
C933
C932
OK: more than 8 mm
NG: less than 8 mm
OK: more than 8 mm
NG: less than 8 mm
C903
LF901
C901
C905
C927
C928
C940
C929
C902
TH901
D901
VDR901
LF902
C913
C910
C964
C933 C932
C908
Q901
C963
EB905
IC901
JW908
– POWER Board (Component Side) –
bond
bond
bond
bond
bond
bond
bond
bond
bond
bond
bond
JW908
OK: more than 8 mm
NG: less than 8 mm
C903
C903
C910
EB905
C902
LF902
LF901
C901
LF901
LF902
VDR901
C905
C927
C928
C940
C929
TH901
D901
D901
C964
C963
C913
IC901
Don’t touch IC901
C908
Q901
Apply bond to the round
of 2 marked portions
outside of 2 capacitor.
