HCD-F200/F500
11
Note:
Follow the disassembly procedure in the numerical order given.

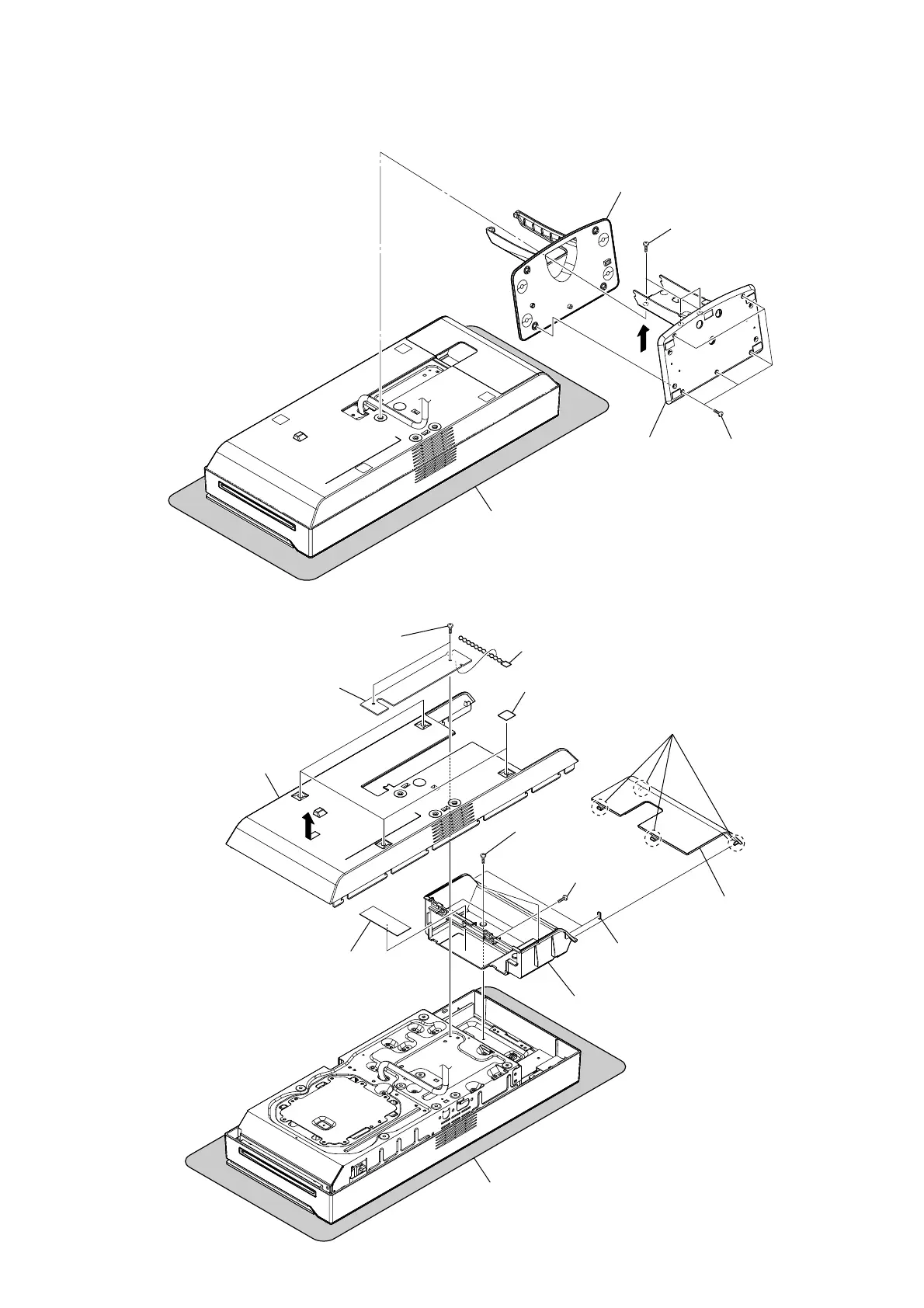

3-2. PANEL (STAND TOP)
3-3. COVER (READ-HCD), HOLDER (TERMINAL-HCD)
three screws
(B4
×
8)
five screws
(KTP2.6
×
5)
panel (stand-top)
stand bottom block
sheet
– rear view –
Note: Please spread a seat under a set
not to injure front panel assy.
two screws
(BVTT3
×
8)
two screws
(BVTT3
×
8)
four claws
cover (terminal-HCD)
cover (SYS)
four sheet (hole)
RB
label (connection)
beads wire band
cover (read-HCD)
RE
holder (terminal-HCD)
RT
two cushions terminal
two screws
(BVTP3
×
6)
sheet
Note: Please spread a seat under a set
not to injure front panel assy.
– rear view –
To Next Page
