Sony SS-CTF500 - DVD MECHANISM DECK SECTION-2 (CDM86-DVBU101)

63
HCD-F200/F500
301 3-088-752-01 FLOATING SCREW (+PTPWH M2.6)
302 2-023-648-01 TAPPING +B 2X10
303 4-245-653-01 BELT (MOT)
304 4-245-662-02 PULLEY (GEAR)
305 4-245-646-01 GEAR (IDL-F)
306 4-245-644-01 GEAR (IDL-D)
307 4-245-645-01 GEAR (IDL-E)
308 4-246-203-01 LEVER (RELEASE)
309 4-245-630-01 LEVER (SW)
310 2-023-068-01 TAPPING +B 2.6X8
M001 X-4955-496-1 MOTOR (PULLEY) ASSY (LOADING)
#5 7-623-921-01 WASHER 1.7, NYLON
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

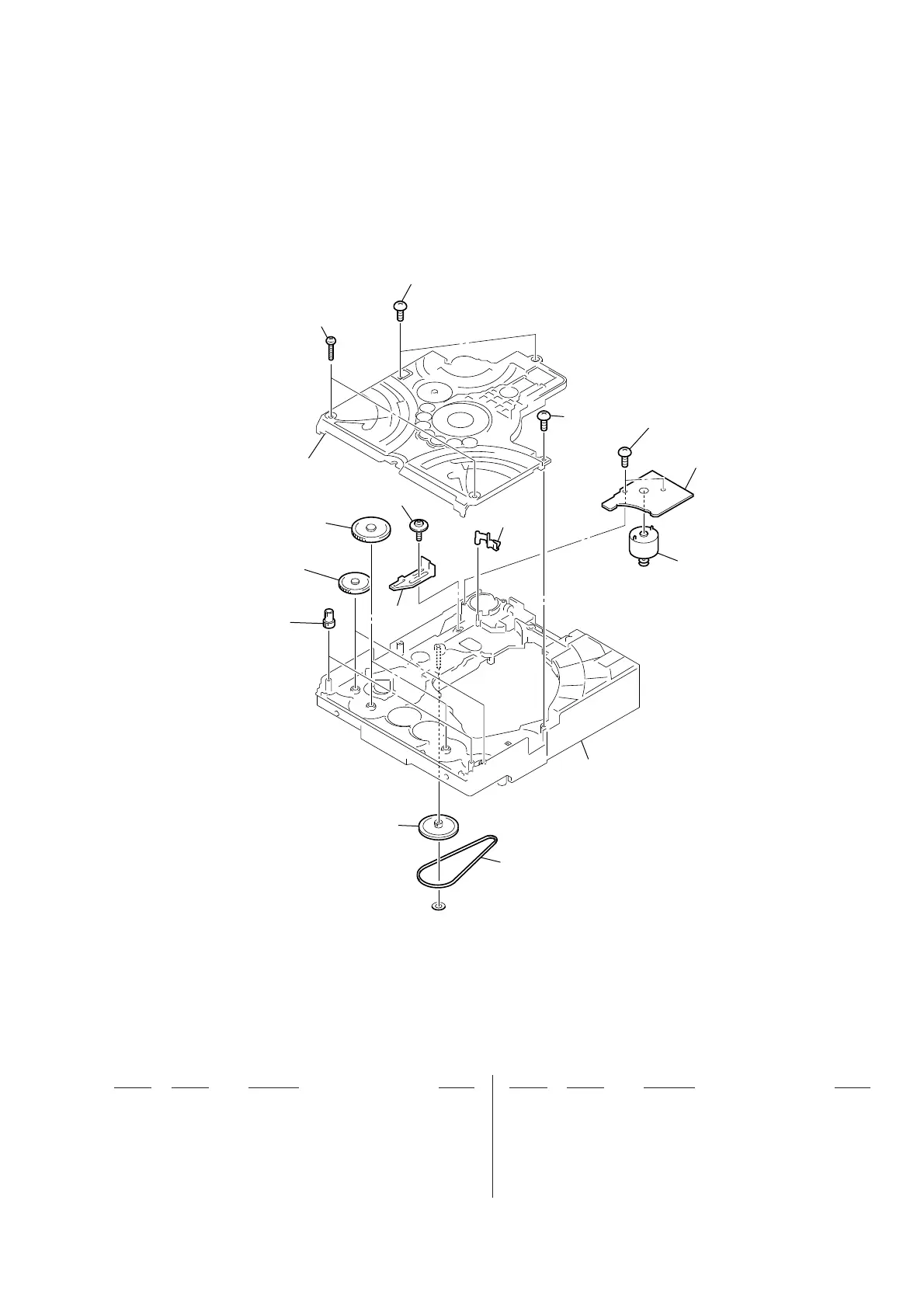

7-6. DVD MECHANISM DECK SECTION-2
(CDM86-DVBU101)
DVD mechanism section-3
310
302
310
310
309
308
301
307
306
305
304
303
DVD mechanism section-4
#5
not supplied
(MS-214 board)
M001
