Conne'cting
cORlponents
with.
an"logvid'eo
ancl'a~dioj.Ck
~
,~
c
.,
-:
;- :
c;
-,
- - '
-~.<
,

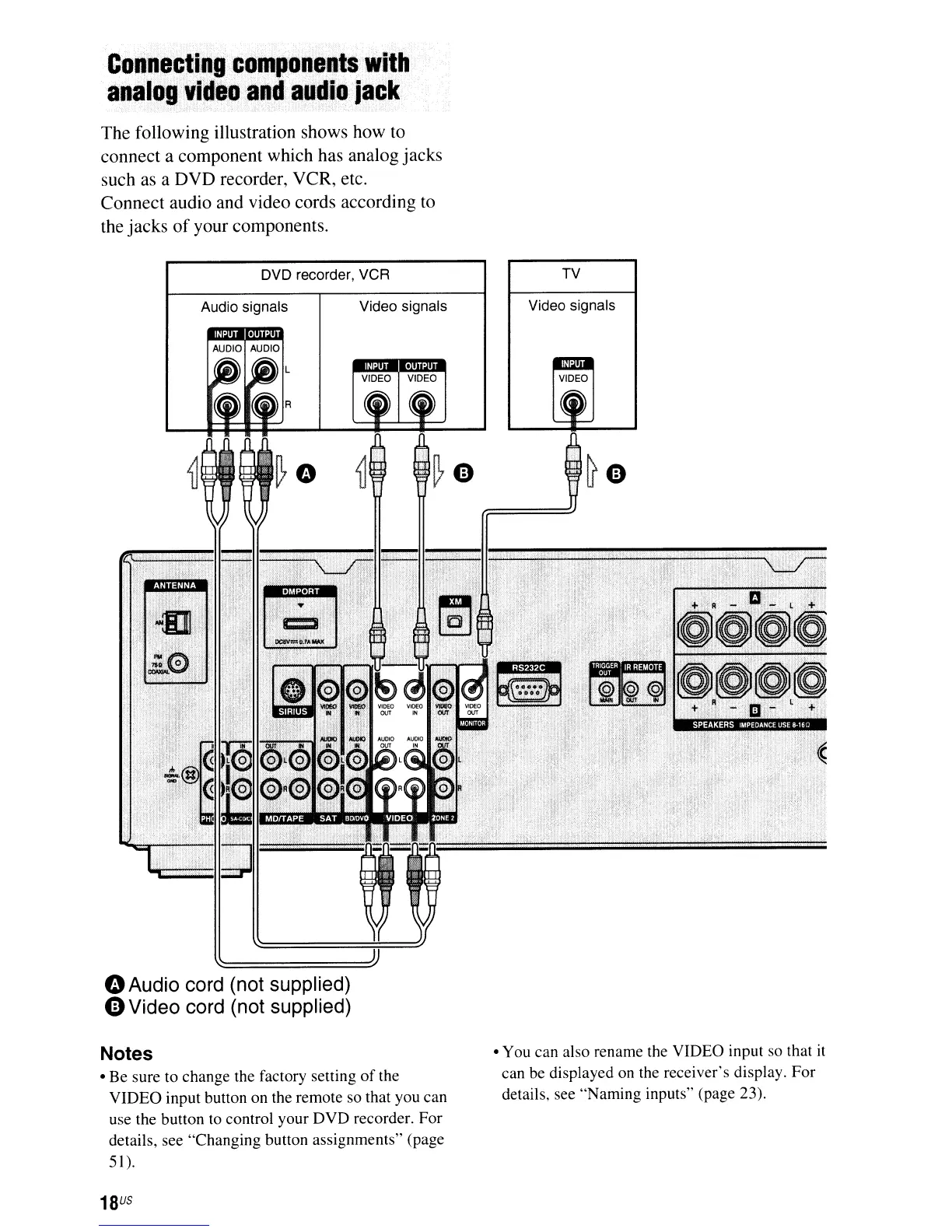

The following illustration shows how to
connect a component which has analog jacks
such
as
a DVD recorder, VCR, etc.
Connect audio and video cords according
to
the jacks
of
your components.
DVD recorder, VCR TV
Audio signals
..
AUDIO
AUDIO
Video signals Video signals
oAudio cord (not supplied)
0Video
cord (not supplied)
Notes
• Be sure to change the factory setting
of
the
VIDEO input button on the remote so that you can
use the button to control your DVD recorder. For
details, see "Changing button assignments" (page
51).
18
US
• You can also rename the VIDEO input so that
it
can be displayed
on
the receiver's display. For
details, see "Naming inputs" (page 23).
