Getting Started

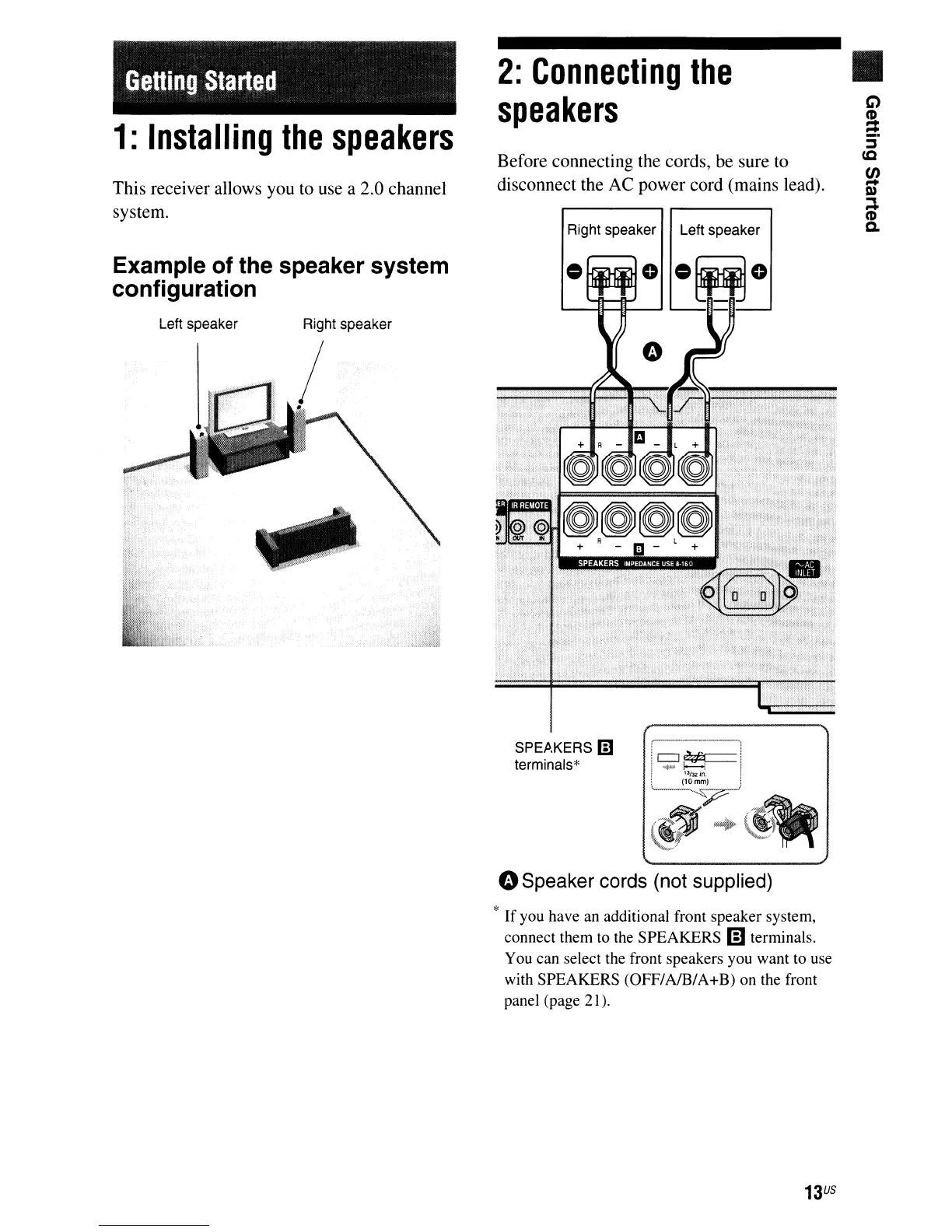

1: Installing the speakers
This receiver allows you to use a 2.0 channel
system.
2: Connecting the
speakers
Before connecting the cords, be sure to
disconnect the AC power cord (mains lead).
Right speaker Left speaker
•
Example of the speaker system
configuration
Left speaker Right speaker
o Speaker cords (not supplied)
* If you have an additional front speaker system,
connect them to the SPEAKERS
IE) terminals.
You can select the front speakers you want to use
with SPEAKERS (OFF/AIB/A+B) on the front
panel (page 21).
13
US
