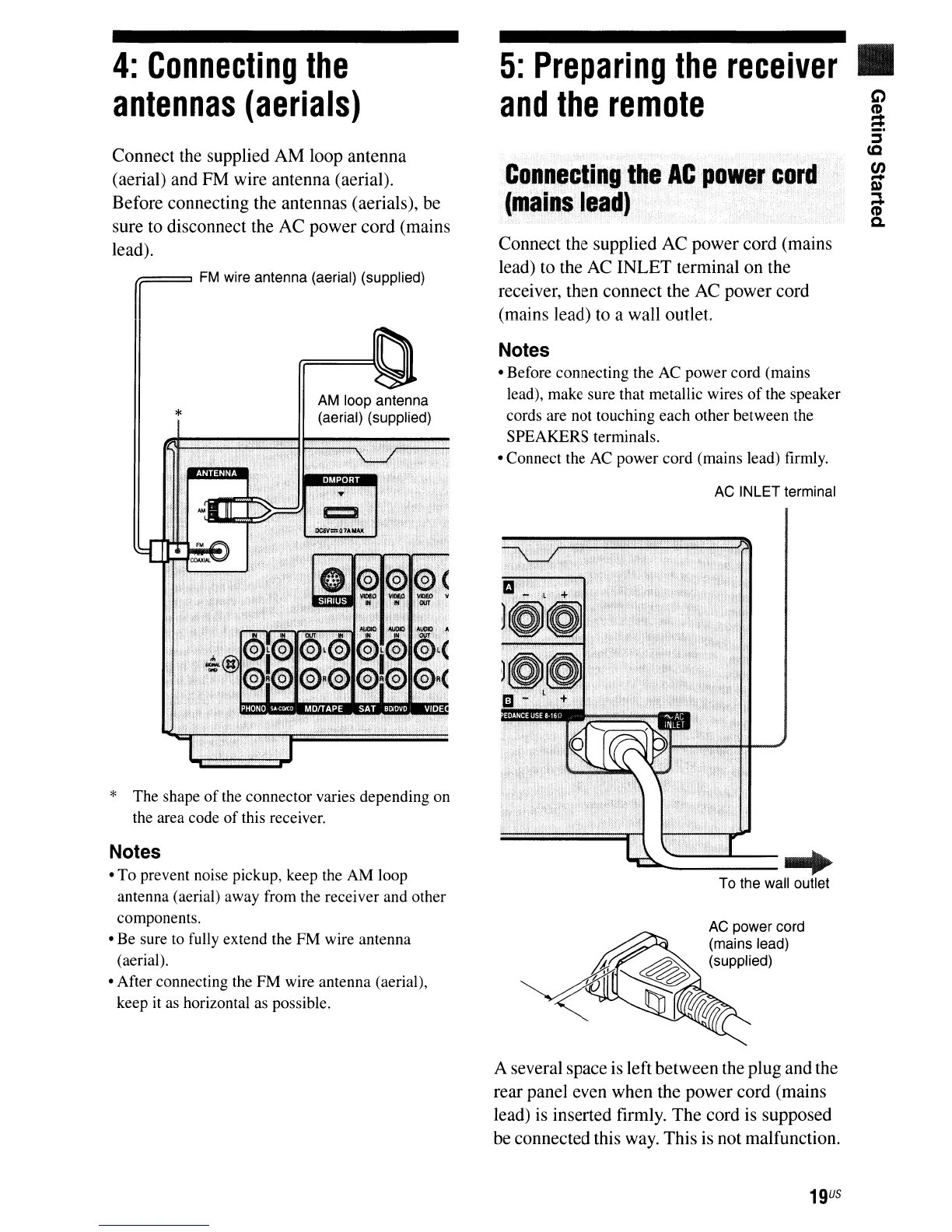

4:
Connecting
the
antennas
(aerials)
Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
Before connecting the antennas (aerials), be
sure to disconnect the AC power cord (mains
lead).
r
FM
wire antenna (aerial) (supplied)
5:
Preparing
the
receiver
and
the
remote
cting
the
AC
power
cord
d)
Connect the supplied AC power cord (mains
lead) to the
AC
INLET terminal on the
receiver, then connect the AC power cord
(mains lead) to a wall outlet.
•
* The shape
of
the connector varies depending on
the area code
of
this receiver.
AC power cord
(mains lead)
(supplied)
AC INLET terminal
-----+
To the wall outlet
Notes
• Before connecting the AC power cord (mains
lead), make sure that metallic wires
of
the speaker
cords are not touching each other between the
SPEAKERS terminals.
• Connect the AC power cord (mains lead) firmly.
AM loop antenna
(aerial) (supplied)
*
Notes
•
To
prevent noise pickup, keep the AM loop
antenna (aerial) away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial),
keep it as horizontal
as
possible.
A several space is left between the plug and the
rear panel even when the power cord (mains
lead) is inserted firmly. The cord is supposed
be
connected this way. This is not malfunction.
To Next Page
