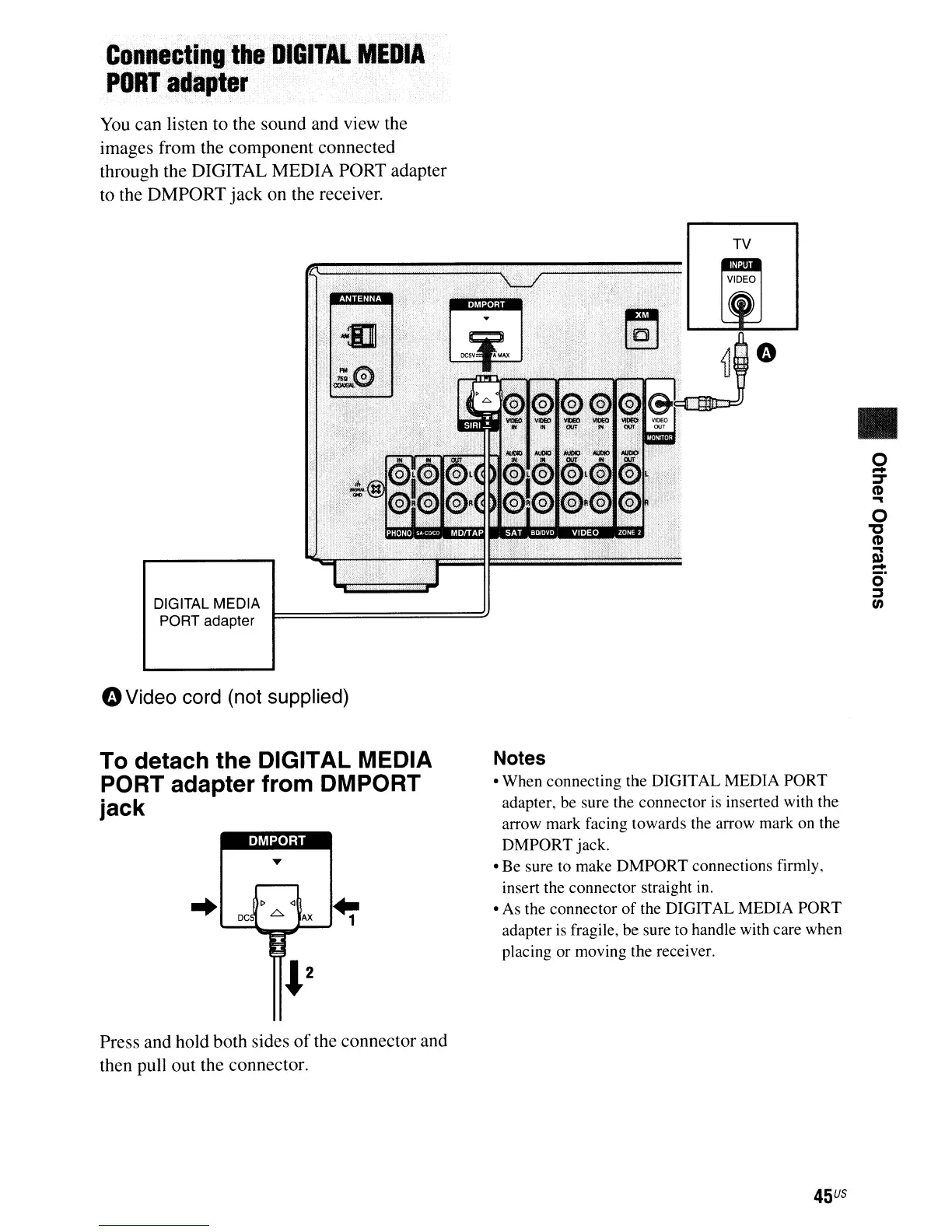

Conn~cting
:theQIGI'fALMEDIA
PO:RTadapter·
You
can listen to the sound and view the
images from the component connected
through the DIGITAL MEDIA PORT adapter
to the DMPORT jack on the receiver.
TV
DIGITAL MEDIA
PORT adapter
OVideo cord (not supplied)
•
o
-
~
m
...
o
"C
m
OJ
-
o'
:::s
en
To detach the DIGITAL MEDIA
PORT adapter from DMPORT
jack
OM
PORT
..
DC
~
Press and hold both sides
of
the connector and
then pull out the connector.
Notes
• When connecting the DIGITAL MEDIA PORT
adapter, be sure the connector
is
inserted with the
arrow mark facing towards the arrow mark on the
DMPORT jack.
• Be sure to make
DMPORT
connections firmly.
insert the connector straight
in
.
• As the connector
of
the DIGITAL MEDIA PORT
adapter
is
fragile, be sure to handle with care when
placing or moving the receiver.
45
US
