Using Multi-zone Features
2 Outputs sound from speakers in zone 2 using the receiver and
another amplifier.
Setting the speakers in zone 2 is required (page 75).
A IR repeater (not supplied)
B Speakers
C Other amplifier/receiver
* You can also connect to the ZONE 2 COMPONENT VIDEO OUT jack.

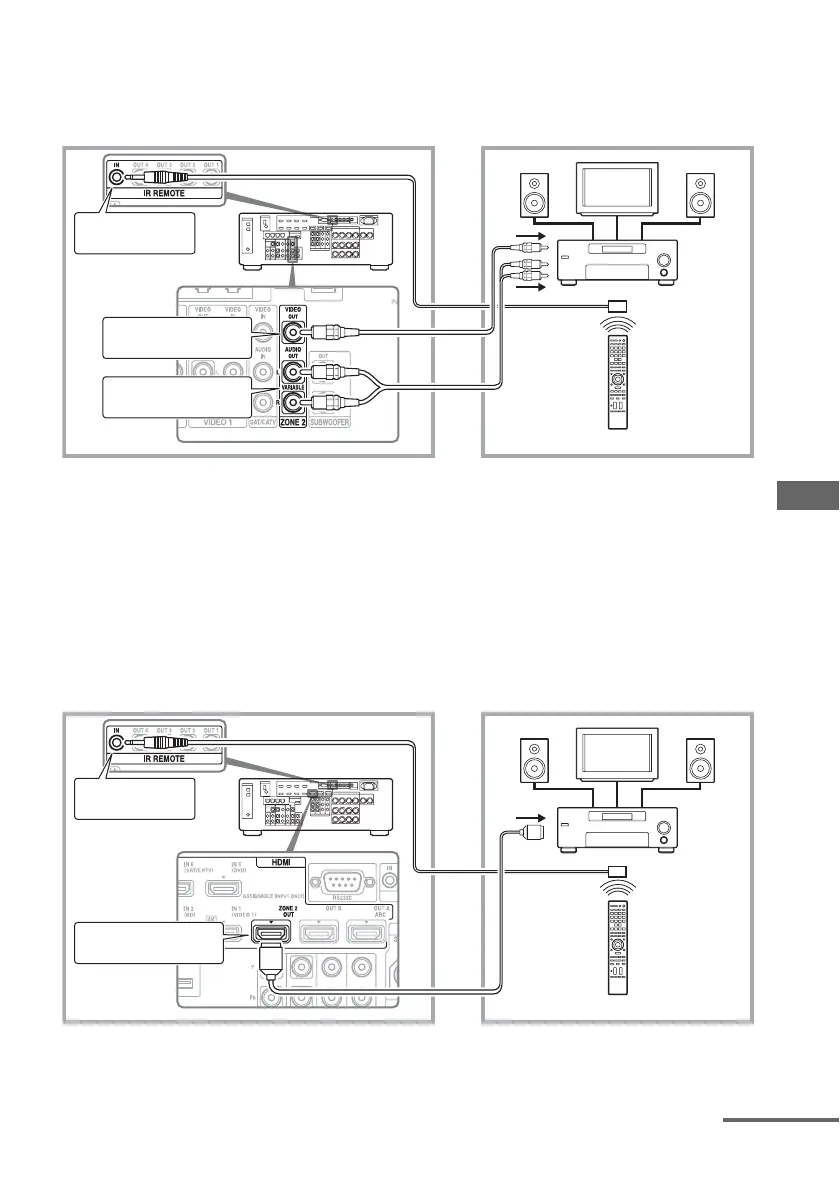

3 Making a zone 2 connection using HDMI
Outputs HDMI input video/audio signals in zone 2 using the HDMI ZONE 2 OUT jack of the
receiver.
Setting the HDMI output in zone 2 may be required (page 75).
A IR repeater (not supplied)
B Speakers
C Other amplifier/receiver
Main zone Zone 2
TV
monitor
ZONE 2 AUDIO OUT
A
BB
C
STR-DA2800ES
Remote control
IR REMOTE IN
ZONE 2 VIDEO OUT*
Main zone Zone 2
TV
monitor
HDMI ZONE 2 OUT
A
STR-DA2800ES
Remote control
IR REMOTE IN
BB
C
