Sony STR-DA2800ES - Rear Panel Connections; Rear Panel Input;Output Jacks

14
US

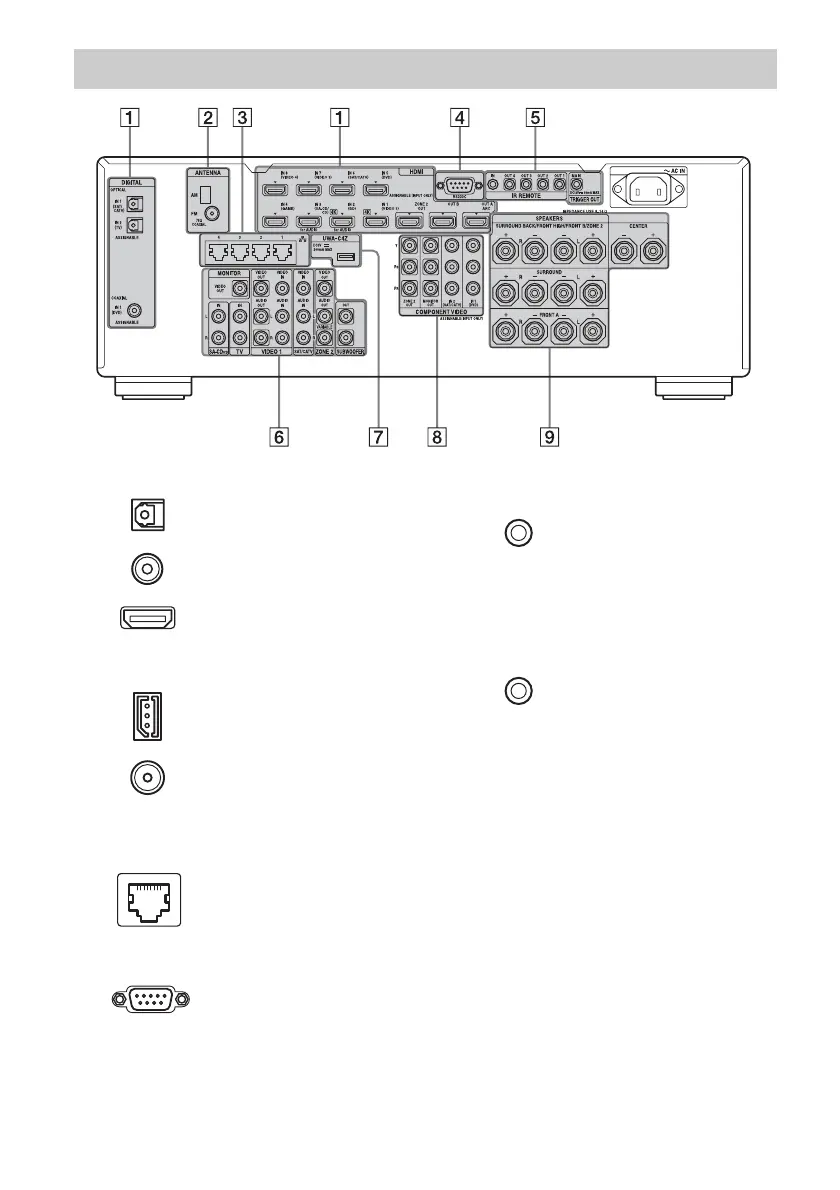

Rear panel
A DIGITAL INPUT/OUTPUT section
OPTICAL IN jacks
(page 27, 31, 32)
COAXIAL IN jacks
(page 30, 37)
HDMI IN/OUT* jacks
(page 27, 29, 31, 32)
B ANTENNA section
AM ANTENNA jack
(page 39)
FM ANTENNA jack
(page 39)
C LAN ports (switching hubs)
(page 42)
D RS232C port
Used for maintenance and service.
E Control jacks for Sony and other
external equipment
IR REMOTE IN/OUT
jacks (page 72)
Connect an IR repeater (not supplied) to
IN to use the Multi-zone function.
Connect an IR blaster (supplied) to OUT
to use the Universal Remote Control
function.
TRIGGER OUT jacks
(page 109)
Connect to interlock on/off of the power
supply of other 12V TRIGGER compliant
equipment.
