12
STR-DA5200ES

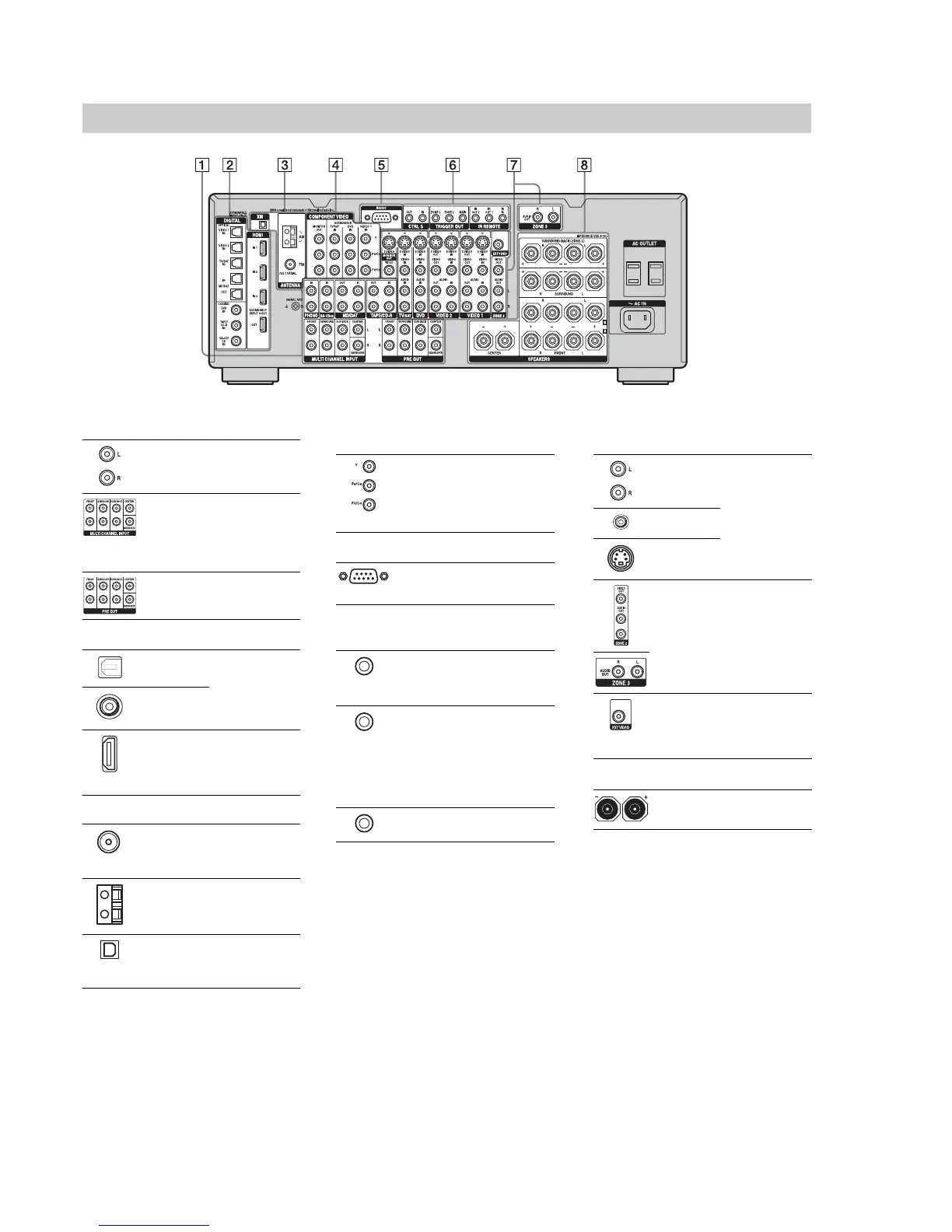

Rear panel
A AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks
Connect to a tape
deck, MD deck or
DAT player, etc.
MULTI
CHANNEL
INPUT jacks
Connect to a Super
Audio CD player or
DVD player with an
analog audio jack for
7.1 channel or 5.1
channel sound.
PRE OUT jacks Connect to an
external power
amplifier.
B DIGITAL INPUT/OUTPUT section
OPTICAL IN/
OUT jacks
Connects to a DVD
player, Super Audio
CD player, etc. The
COAXIAL jack
provides a better
quality sound.
COAXIAL IN
jacks
HDMI IN/OUT
jacks
Connects to a DVD
player, or a satellite
tuner. An image and
the sound are output
to TV or a projector.
C ANTENNA section
FM ANTENNA
jack
Connects to the FM
wire antenna (aerial)
supplied with this
receiver.
AM
ANTENNA
jack
Connects to the AM
loop antenna (aerial)
supplied with this
receiver.
XM
ANTENNA
jack
Connects to the XM
Connect-and-Play
antenna (aerial) (not
supplied).
D COMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO (Y, P
B
/
C
B
, P
R
/C
R
)
INPUT/
OUTPUT
jacks*
Connect to a DVD
player, TV, or a
satellite tuner.
E RS-232C jack
Used for
maintenance and
service.
*You can watch the selected input image when you
connect the MONITOR OUT jack to a TV.
You can operate this receiver using a GUI
(Graphical User Interface).
F Control jack for Sony equipment
and other external components
CTRL S IN/
OUT jacks
Connects to Sony
TV, DVD player or
VCR with
CONTROL S jack.
TRIGGER
OUT jacks
Connects to interlock
on/off of the power
supply of other 12V
TRIGGER
compliant
components, or the
amplifier/receiver of
zone 2 or zone 3.
IR REMOTE
IN/OUT jacks
Connects an IR
repeater.
G VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks
Connects to a VCR
or a DVD player etc.
VIDEO IN/
OUT jacks*
S VIDEO IN/
OUT jacks*
AUDIO IN/
OUT jack
VIDEO IN/
OUT jacks
Connects to the
component in zone 2
or zone 3.
VIDEO IN jack Connects to the
component when
you want to watch in
PIP (Picture in
Picture) window.
H SPEAKERS section
Connects to speakers.
