STR-DA5200ES

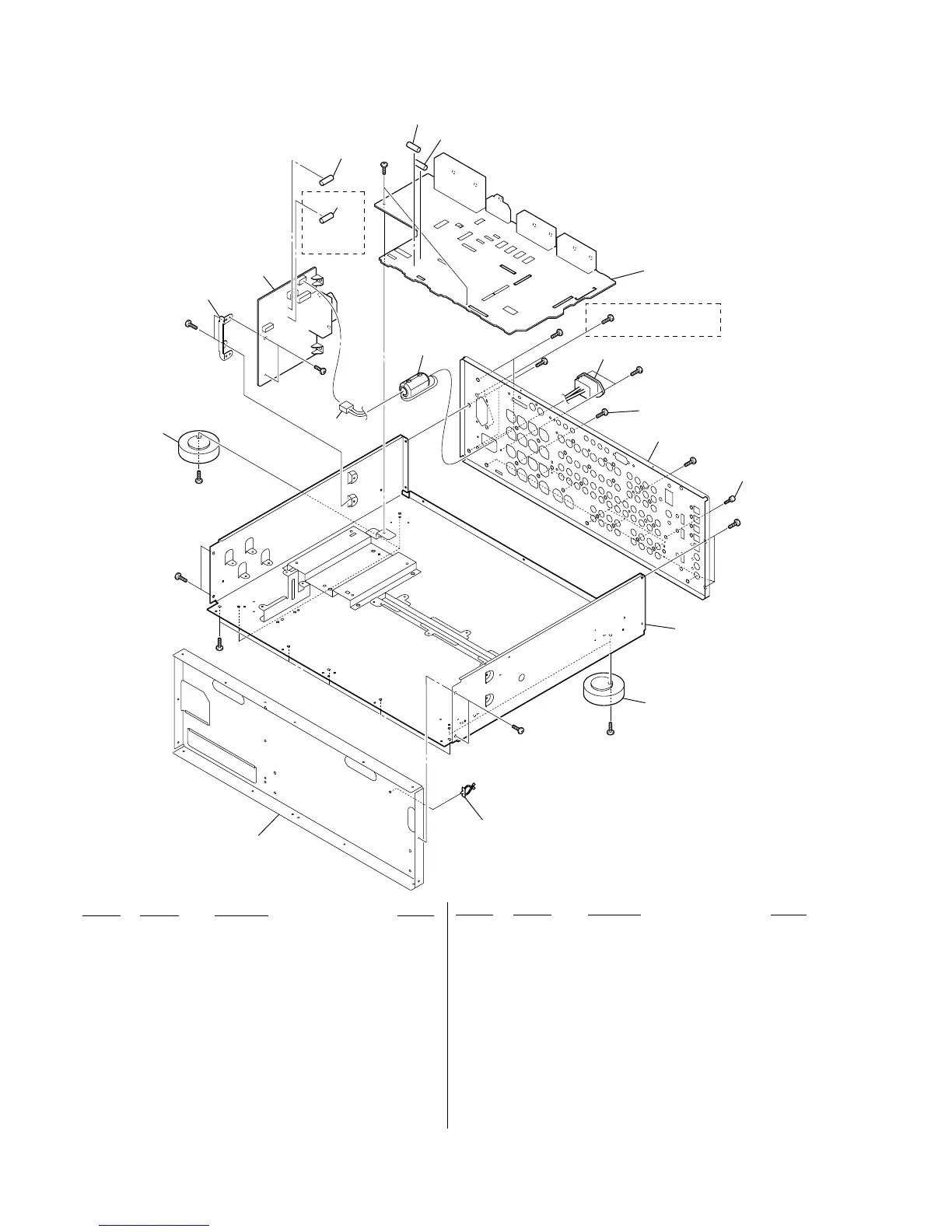

7-6. MAIN BOARD BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 X-4955-348-1 FOOT ASSY
252 A-1182-298-A AC BOARD, COMPLETE (AEP)
252 A-1183-456-A AC BOARD, COMPLETE (US, CND)
252 A-1197-514-A AC BOARD, COMPLETE (UK)
253 A-1183-224-A MAIN BOARD, COMPLETE (AEP, UK)
253 A-1183-450-A MAIN BOARD, COMPLETE (US, CND)
254 1-500-824-11 FERRITE CORE
256 3-704-515-51 SCREW (BV/RING)
257 4-947-010-01 SCREW, FEEDER FIXED
0F01 1-532-504-33 FUSE (TA4L/250V) (AEP, UK)
0F01 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V)
(US, CND)
0F02 1-532-464-33 FUSE (T2.5AL/250V) (AEP)
0F02 1-533-420-12 FUSE, GLASS CYLINDRICAL(DIA.5) (5A/125V)
(US, CND)
0F1403 1-532-504-33 FUSE (T4AL/250V)
0F1404 1-532-504-33 FUSE (T4AL/250V)
0J01 1-820-651-11 INLET, AC 2P (~AC IN)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-885-09 SCREW +BVTT 4X16 (S)
#5 7-685-246-19 SCREW +KTP 3X8 TYPE2 NON-SLIT
253
252
254
257
256
251
251
not supplied
not
supplied
F01
F1403
F1404
J01
F02
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#4
#4
#1
#1
#5
(US, CND, AEP)
(US, CND,
AEP)
