Sony STR-DA5200ES Service Manual

151
STR-DA5200ES
204
202
203
205
206
207
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#3
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
MAIN board block
heat sink block
not supplied
(SP TERMINAL board
)
not supplied
(ZONE3 board)
not
supplied
not
supplied
not supplied
not supplied
not supplied
208
not supplied

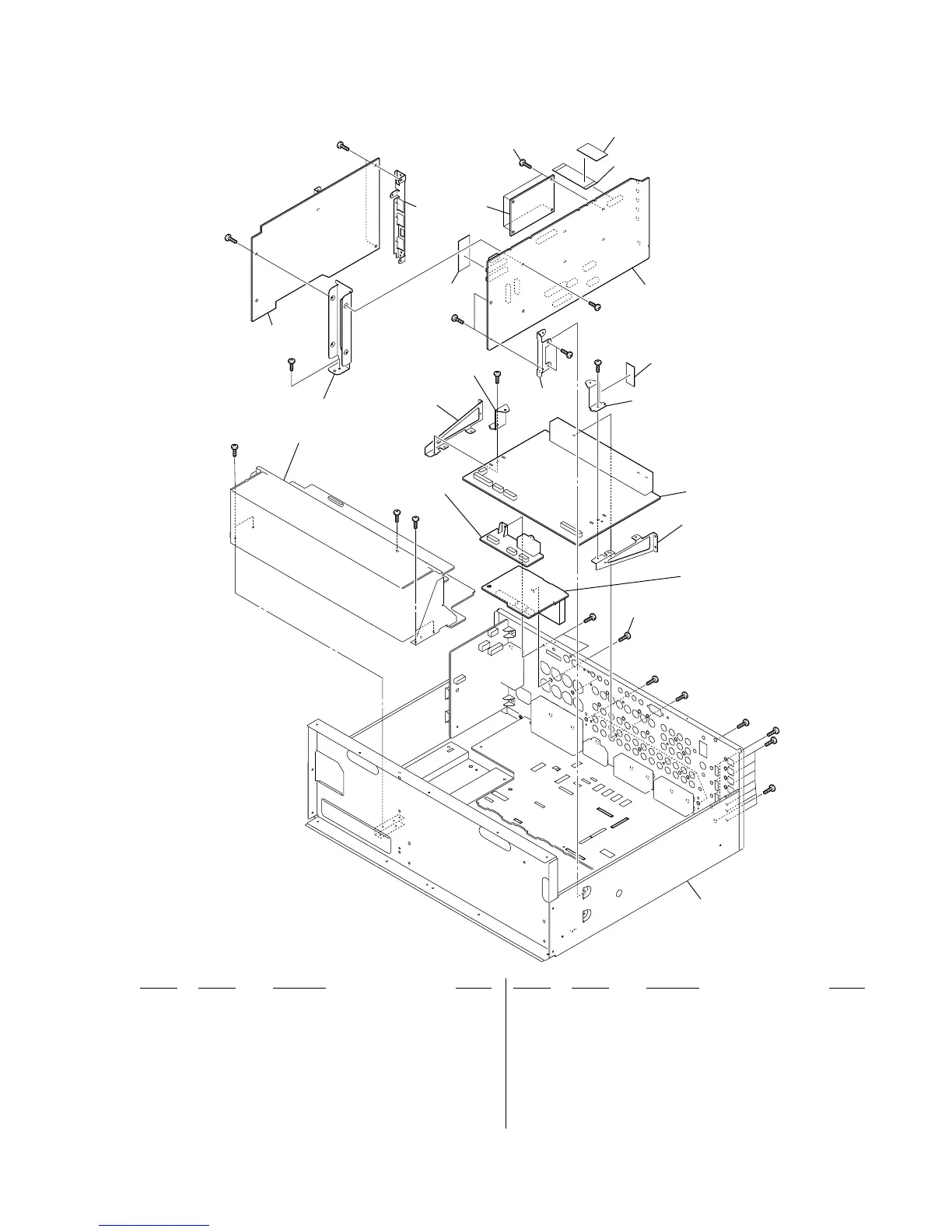

7-5. AUDIO BOARD BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
202 A-1182-351-A DSP BOARD, COMPLETE
203 3-087-053-01 +BVTP 2.6 (3CR)
204 1-769-944-11 WIRE (FLAT TYPE) (11 CORE) (US, CND)
204 1-773-008-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
205 A-1188-304-A DIGITAL BOARD, COMPLETE (AEP, UK)
205 A-1188-327-A DIGITAL BOARD, COMPLETE (US, CND)
206 A-1188-300-A AUDIO BOARD, COMPLETE (AEP, UK)
206 A-1188-325-A AUDIO BOARD, COMPLETE (US, CND)
207 3-704-515-51 SCREW (BV/RING)
9 208 A-1212-140-A HDMI BOARD, COMPLETE (for SERVICE)
(US, CND)
9 208 A-1212-141-A HDMI BOARD, COMPLETE (for SERVICE)
(AEP, UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-682-547-04 SCREW +B 3X6
