11
STR-DA5200ES
SECTION 2
GENERAL
This section is extracted from
instruction manual.

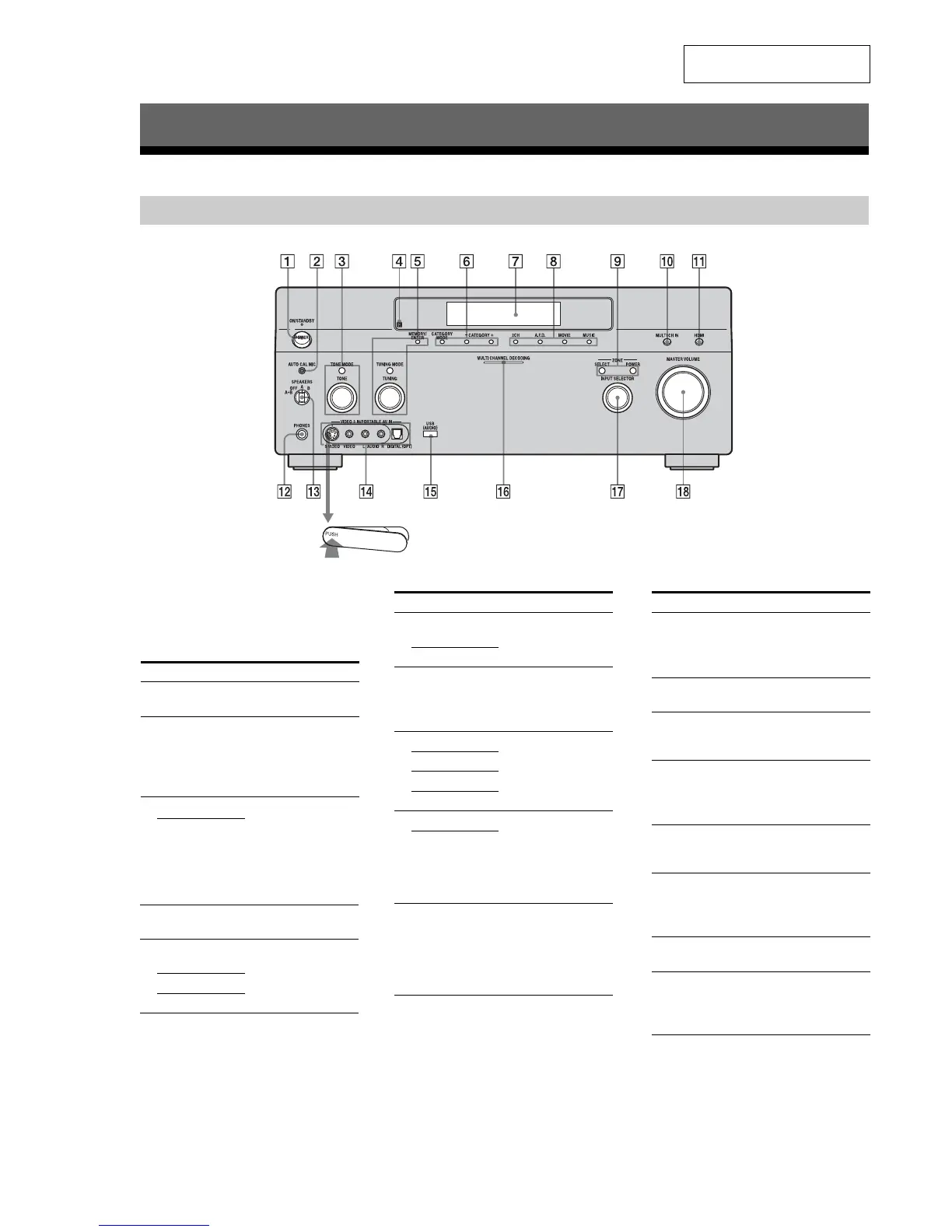

Description and location of parts (US and Canadian models)
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Getting Started
Front panel
Name Function
A POWER Press to turn the
receiver on or off
B AUTO CAL MIC
jack
Connects to the
supplied optimizer
microphone for the
Digital Cinema Auto
Calibration function.
C TONE MODE Adjusts FRONT BASS
and FRONT TREBLE.
Press TONE MODE
repeatedly to select
BASS or TREBLE,
then turn TONE to
adjust the level.
TONE
D Remote sensor Receives signals from
remote commander.
E MEMORY/
ENTER
Press to operate a tuner
(FM/AM/XM Radio).
TUNING MODE
TUNING
F CATEGORY
MODE
Used when listening to
XM Radio.
CATEGORY +/–
G Display
window
The current status of
the selected component
or a list of selectable
items appears here.
H 2CH Press to select sound
field.
A.F.D.
MOVIE
MUSIC
I POWER Press SELECT
repeatedly to select
zone 2 or zone 3, then
press POWER to
output signals to the
selected zone.
SELECT
J MULTI CH IN Press to select the audio
input signal from the
component connected
to the MULTI
CHANNEL INPUT
jack.
Name Function
K HDMI Press to select input
source from the
component connected
to the HDMI IN jack.
L PHONES jack Connects to
headphones.
M SPEAKERS
(OFF/A/B/A+B)
Switch to OFF, A, B,
A+B of the front
speakers.
N VIDEO 3 IN/
PORTABLE AV
IN jacks
Connect to a portable
audio/video component
such as a camcorder or
video game.
O USB (AUDIO)
jack
Connects to a portable
audio product with a
USB jack.
P MULTI
CHANNEL
DECODING
lamp
Lights up when multi-
channel audio signals
are decoded.
Q INPUT
SELECTOR
Turn to select the input
source to play back.
R MASTER
VOLUME
Turn to adjust the
volume level of all
speakers at the same
time.
Name Function
To Next Page
