Sony STR-DA5200ES Service Manual

STR-DA5200ES
24

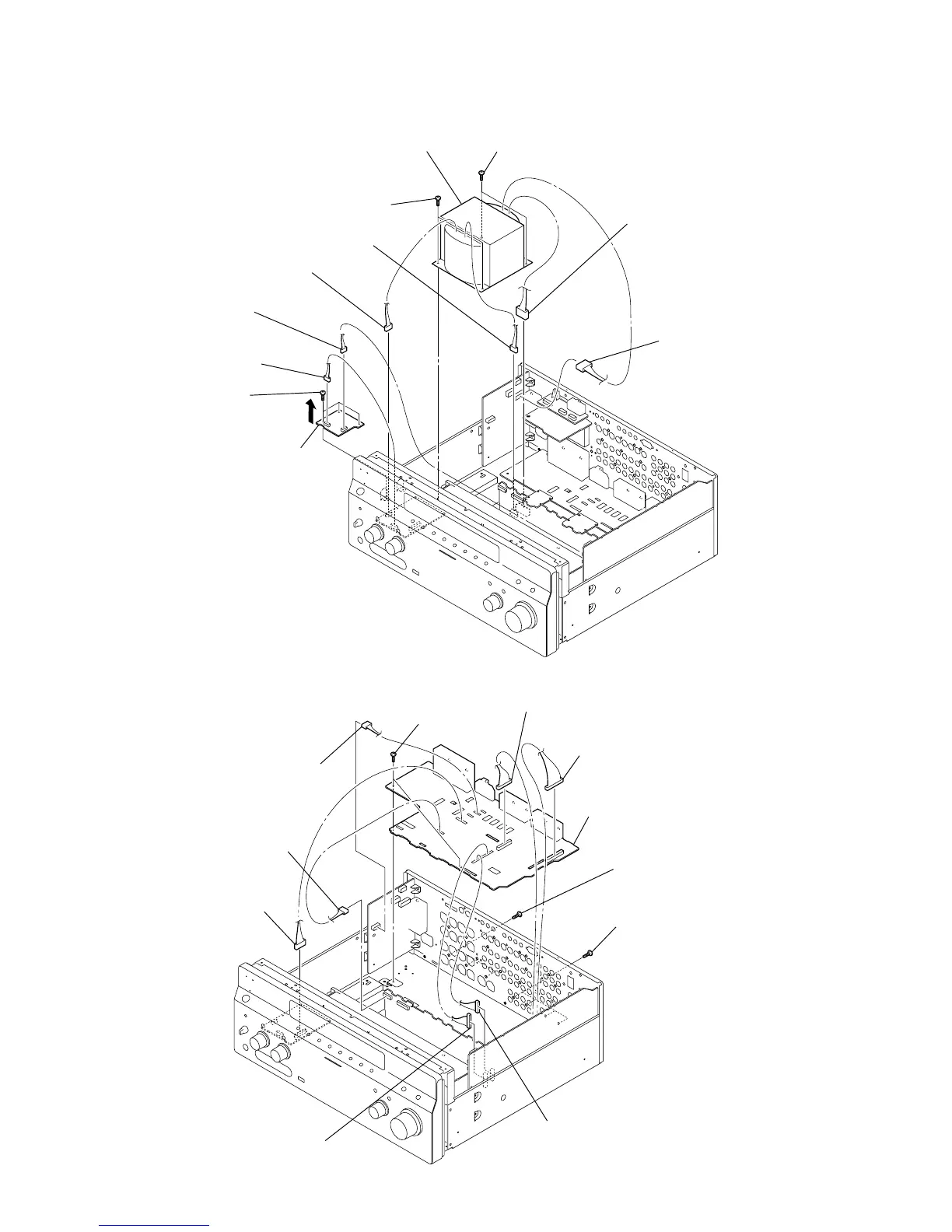

3-11. MAIN BOARD
3-10. DC-DC-HDMI BOARD/POWER TRANSFORMER (T01)
9 connector
(CNP02)
qs power transformer (T01)
0 two screws
(BVTT4
× 8)
2 three screws
(BVTP3
× 8)
5 DC-DC-HDMI board
3
8
connector
(CNP1403)
qa two screws
(BVTT4
× 8)
7 connector
(CNP1404)
6 connector
(CNP1451)
1 connector
(CN7020)
4 connector
(CN7052)
7 connector
(CN2021)
6 connector
(CN2012)
1 connector
(CN1410)
2 connector
(CN1902)
3 connector
(CNP54)
5 connector
(CNP1001)
4 connector
(CNP1003)
qa MAIN board
0 two screws
(BVTP3 × 8)
8 three screws
(BV/RING)
9 four screws
(BVTP3 × 8)
