Sony STR-DA5200ES Service Manual

STR-DA5200ES
22

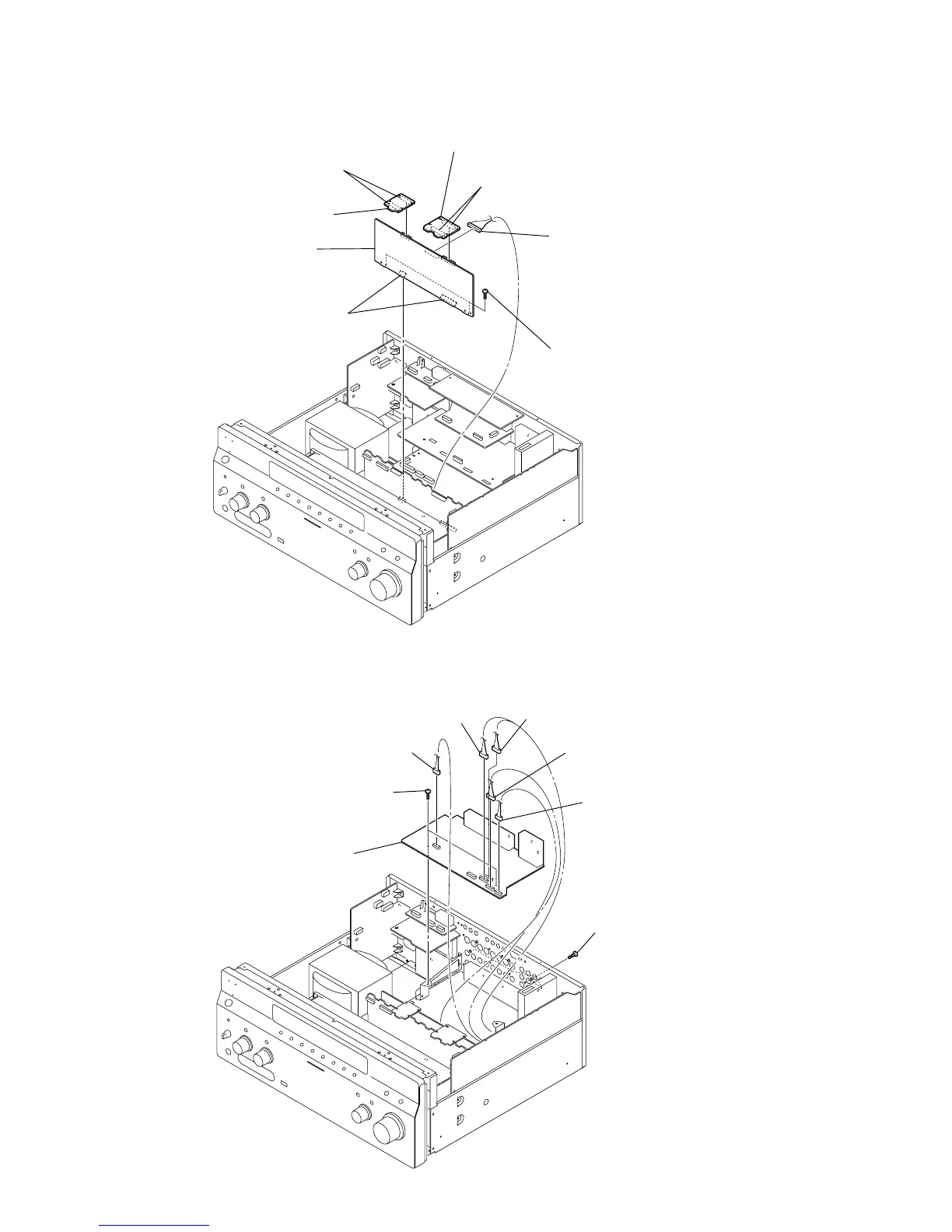

3-7. VIDEO BOARD
3-6. E-VOLUME BOARD
6 two connectors
(CNS1203, 1204)
8 E-VOLUME board
2 CONNECTOR L board
1 two connectors
(A CLASS AMP: CNS1502, E-VOLUME: CNS1202)
4 CONNECTOR R board
3 two connectors
(A CLASS AMP: CNS1501, E-VOLUME: CNS1201
)
5 connector
(CNP1208)
7 two screws
(BVTP3
× 8)
7 six screws
(BVTP3
× 8
)
4 connector
(CN6806)
3 connector
(CN6803)
2 connector
(CN6808)
1 connector
(CN6805)
5 connector
(CN6804)
8 VIDEO board
6 two screws
(BVTP3
× 8)
