Sony STR-DA5200ES Service Manual

150
STR-DA5200ES
151
152
153
155
154
156
157
#1
#1
#1
#1
#1
#1
#1
#1
#1
not
supplied
not supplied
not supplied
(CONNECTOR L board)
not supplied
(DC-DC-HDMI
board)
not supplied
not supplied
(CONNECTOR R board)
not supplied
not supplied
T01
F1405
AUDIO board block
#2
#2
#1
#1
#1
#1
not supplied
160
161
158
159
not supplied

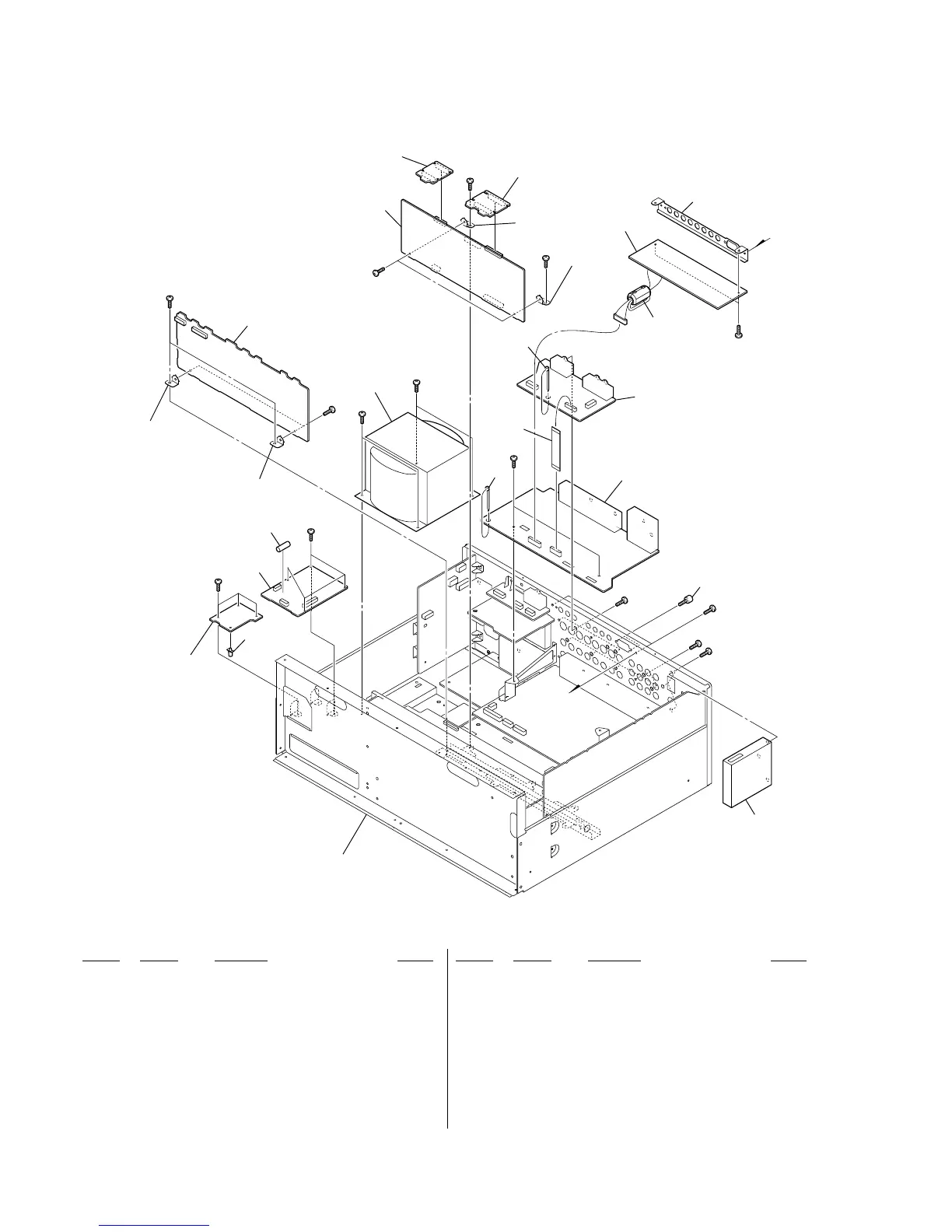

7-4. VIDEO BOARD BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 A-1221-151-A DCDC-1 BOARD, COMPLETE
152 A-1183-230-A A CLASS AMP BOARD, COMPLETE (AEP, UK)
152 A-1183-457-A A CLASS AMP BOARD, COMPLETE (US, CND)
153 A-1182-340-A E-VOLUME BOARD, COMPLETE
154 1-828-368-51 WIRE (FLAT TYPE) (21 CORE)
155 A-1188-308-A S-VIDEO BOARD, COMPLETE
156 A-1188-306-A VIDEO BOARD, COMPLETE
157 1-693-675-11 TUNER (US, CND)
157 1-693-676-11 TUNER (AEP, UK)
158 A-1198-726-A CIS BOARD, COMPLETE
159 1-469-241-11 CORE, FERRITE (RFC-8 BK)
160 3-655-653-11 BAND (TAITON), BINDING
161 3-655-653-21 BAND (TAITON), BINDING
0F1405 1-532-506-33 FUSE (T6.3AL/250V)
0T01 1-445-040-11 TRANSFORMER, POWER (US, CND)
0T01 1-445-041-11 TRANSFORMER, POWER (AEP, UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
