Sony STR-DA5200ES Service Manual

148
STR-DA5200ES

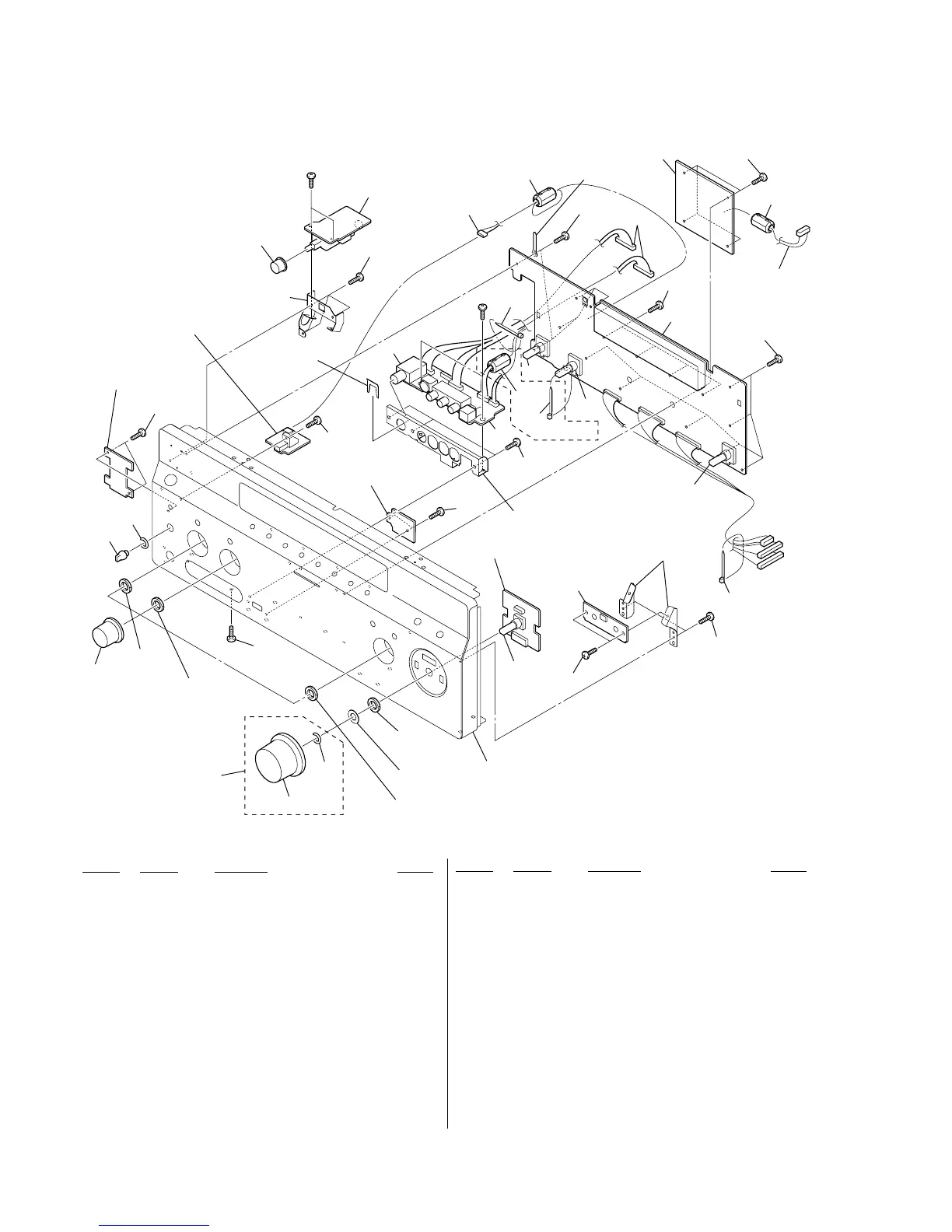

7-2. DISPLAY BOARD BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-4955-650-1 KNOB (VOL) ASSY (SILVER)
51 X-4955-657-1 KNOB (VOL) ASSY (BLACK)
52 3-704-515-22 SCREW (BV/RING)
53 2-661-141-31 MENU KNOB (BLACK)
53 2-661-141-41 MENU KNOB (SILVER)
54 3-087-053-01 +BVTP2.6 (3CR)
55 1-543-793-11 FILTER, CLAMP (FERRITE CORE)
56 X-4955-616-1 BUTTON (POWER) ASSY (BLACK)
56 X-4955-618-1 BUTTON (POWER) ASSY (SILVER)
57 A-1219-989-A VIDEO 3 BOARD, COMPLETE
58 A-1194-647-A DISPLAY BOARD, COMPLETE
59 3-655-653-11 BAND (TAITON), BINDING
60 3-087-053-11 +BVTP2.6 (3CR)
61 3-350-426-01 SPRING
62 1-469-241-11 CORE, FERRITE (RFC-8 BK) (US, CND)
64 A-1189-070-A USB BOARD, COMPLETE
65 1-469-969-11 CLAMP, FERRITE
66 4-246-103-02 KNOB (SPEAKER) (SILVER)
66 4-246-103-22 KNOB (SPEAKER) (BLACK)
67 2-893-374-01 SPRING, RING
68 3-655-653-21 BAND (TAITON), BINDING
J702 1-815-313-11 JACK (PHONES)
S713 1-418-400-11 ENCODER, ROTARY (TONE)
S714 1-418-400-11 ENCODER, ROTARY (TUNING)
S715 1-418-400-11 ENCODER, ROTARY (INPUT SELECTOR)
S723 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
56
55
58
57
62
52
53
54
67
54
54
54
60
54
68
54
54
59
54
#1
#1
not supplied
(MIC board)
not supplied
(USB CONNECTOR
board)
not supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
(M-VOL DA5200 board)
S715
(US, CND)
S714
S713
S723
not supplied
not supplied
(KEY 1 board)
supplied
with S723
front panel block
supplied with S715
supplied
with S714
supplied
with S713
not supplied
(SPSW DA5200
board)
not supplied
supplied with
J702
not supplied
(POWER SW board)
51
61
66
not supplied
not
supplied
not supplied
J702
54
65
5464
