16
STR-DA5200ES

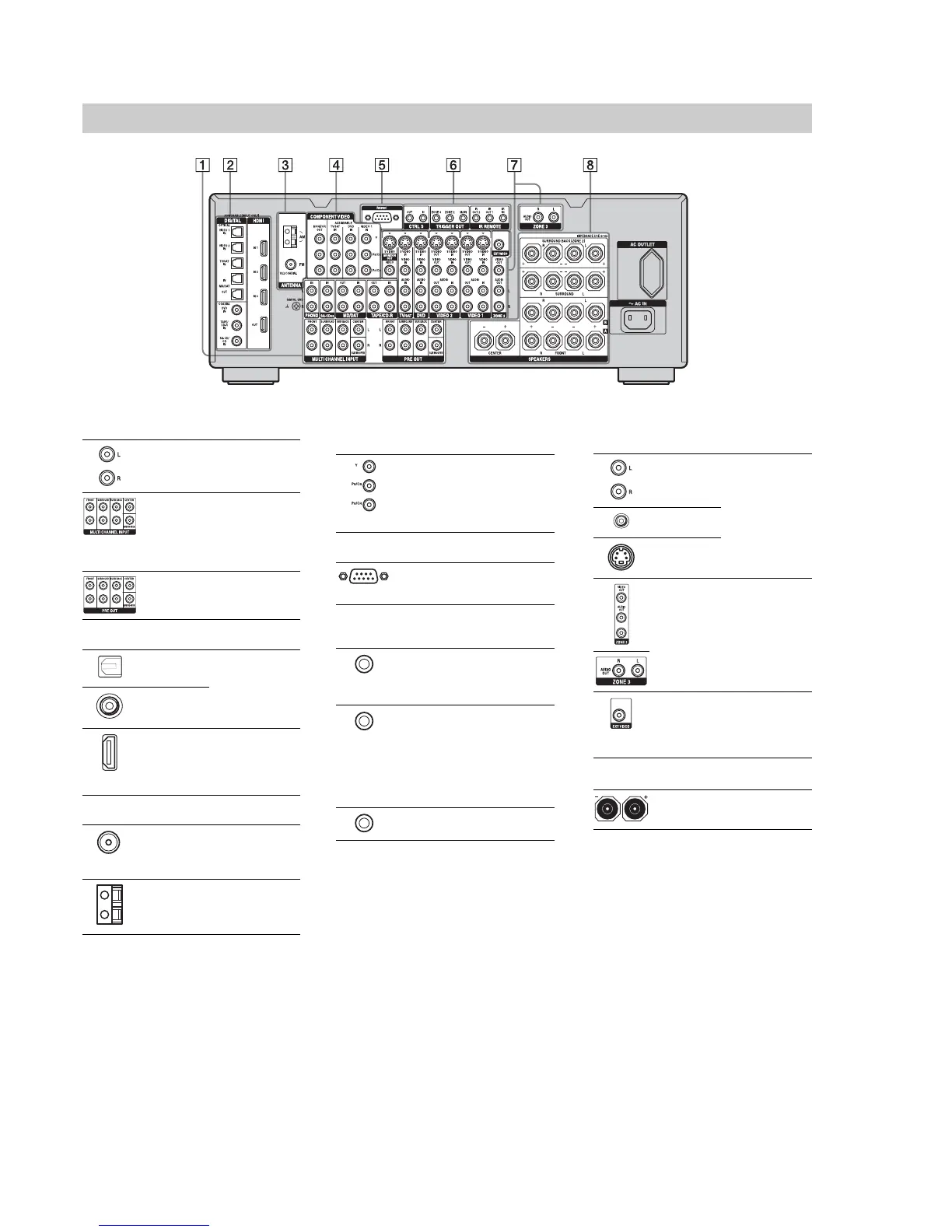

Rear panel
A AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks
Connect to a tape
deck, MD deck or
DAT player, etc.
MULTI
CHANNEL
INPUT jacks
Connect to a Super
Audio CD player or
DVD player with an
analog audio jack for
7.1 channel or 5.1
channel sound.
PRE OUT jacks Connect to an
external power
amplifier.
B DIGITAL INPUT/OUTPUT section
OPTICAL IN/
OUT jacks
Connects to a DVD
player, Super Audio
CD player, etc. The
COAXIAL jack
provides a better
quality sound.
COAXIAL IN
jacks
HDMI IN/OUT
jacks
Connects to a DVD
player, or a satellite
tuner. An image and
the sound are output
to TV or a projector.
C ANTENNA section
FM ANTENNA
jack
Connects to the FM
wire antenna (aerial)
supplied with this
receiver.
AM
ANTENNA
jack
Connects to the AM
loop antenna (aerial)
supplied with this
receiver.
D COMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO (Y, P
B
/
C
B
, P
R
/C
R
)
INPUT/
OUTPUT
jacks*
Connect to a DVD
player, TV, or a
satellite tuner.
E RS-232C jack
Used for
maintenance and
service.
*You can watch the selected input image when you
connect the MONITOR OUT jack to a TV.
You can operate this receiver using a GUI
(Graphical User Interface).
F Control jack for Sony equipment
and other external components
CTRL S IN/
OUT jacks
Connects to Sony
TV, DVD player or
VCR with
CONTROL S jack.
TRIGGER
OUT jacks
Connects to interlock
on/off of the power
supply of other 12V
TRIGGER
compliant
components, or the
amplifier/receiver of
zone 2 or zone 3.
IR REMOTE
IN/OUT jacks
Connects an IR
repeater.
G VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks
Connects to a VCR
or a DVD player etc.
VIDEO IN/
OUT jacks*
S VIDEO IN/
OUT jacks*
AUDIO IN/
OUT jack
VIDEO IN/
OUT jacks
Connects to the
component in zone 2
or zone 3.
VIDEO IN jack Connects to the
component when
you want to watch in
PIP (Picture in
Picture) window.
H SPEAKERS section
Connects to speakers.
To Next Page
