6
STR-DA5200ES

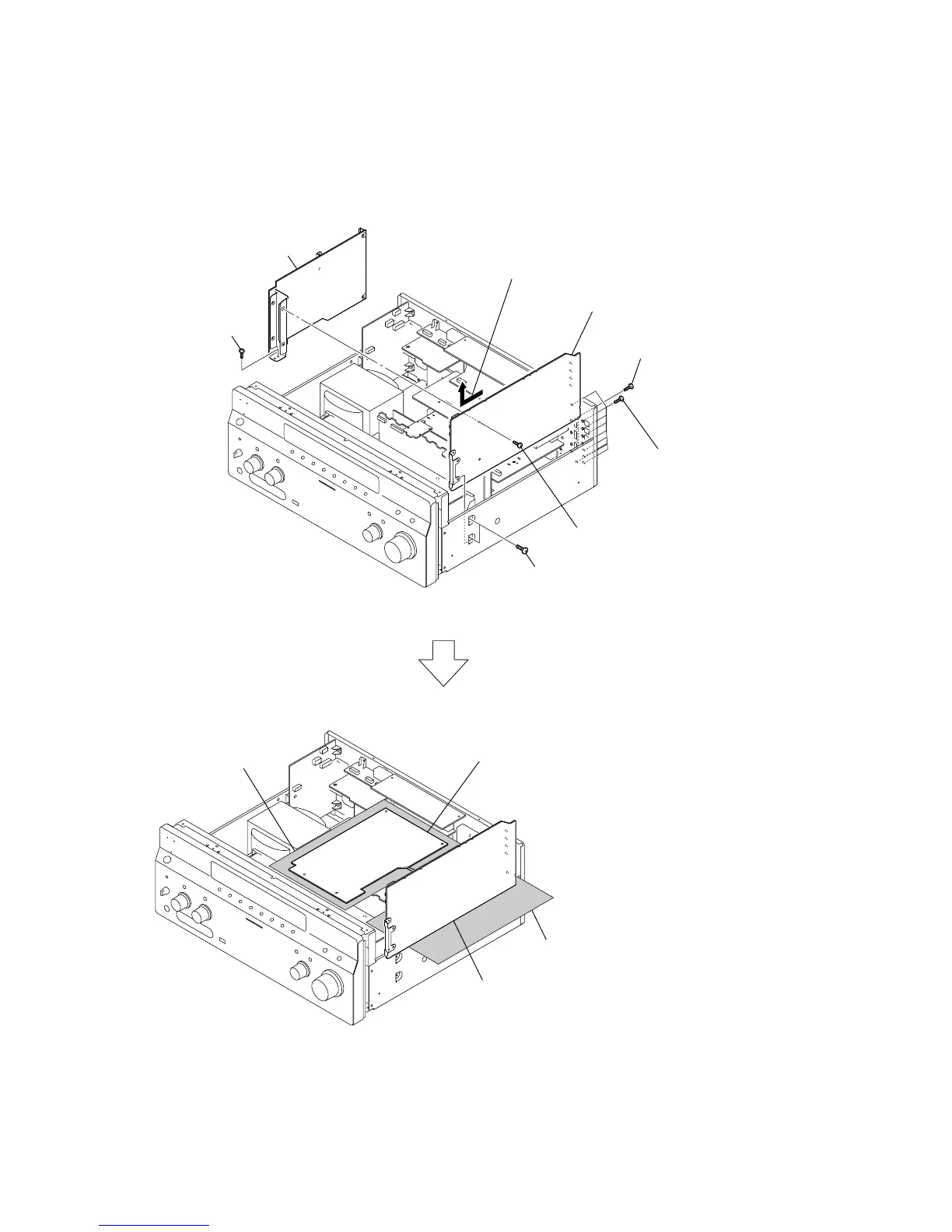

DIGITAL/HDMI BOARDS SERVICE POSITION
Note: Follow the disassembly procedure in the numerical order given.
Note: In checking the DIGITAL board, remove the HDMI board.
8
DIGITAL board
7
HDMI board
2
nine screws
(BVTP3
×
8)
3
four screws
(B3
×
6)
4
two screws
(BVTP3
×
8)
6
screw
(BVTP3
×
8)
1
screw
(BVTP3
×
8)
5
Raise and remove upwards after pulling to the front.
HDMI board
DIGITAL board
insulated shee
t
insulated sheet
