8
STR-DA5200ES

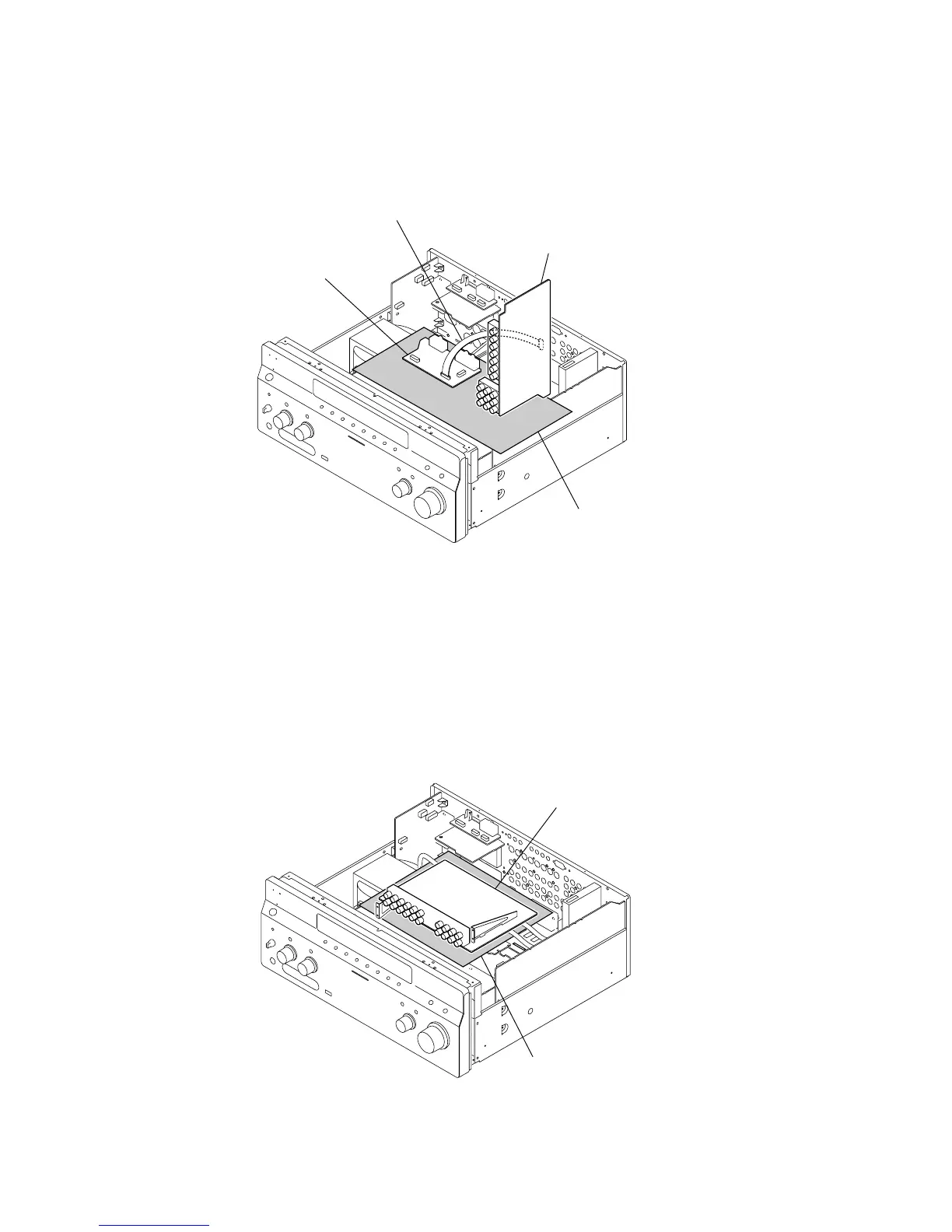

VIDEO BOARD SERVICE POSITON
In checking the VIDEO board, prepare jig (extension cable J-2501-231-A: 300 mm 15 core).
AUDIO BOARD SERVICE POSITON
In checking the AUDIO board, remove the VIDEO board and S-VIDEO board.
Connect jig (extension cable J-2501-231-A)
to the VIDEO board (CN6802) and S-VIDEO board (CNS6903).
VIDEO board
S-VIDEO board
insulated shee
t
AUDIO board
insulated sheet
