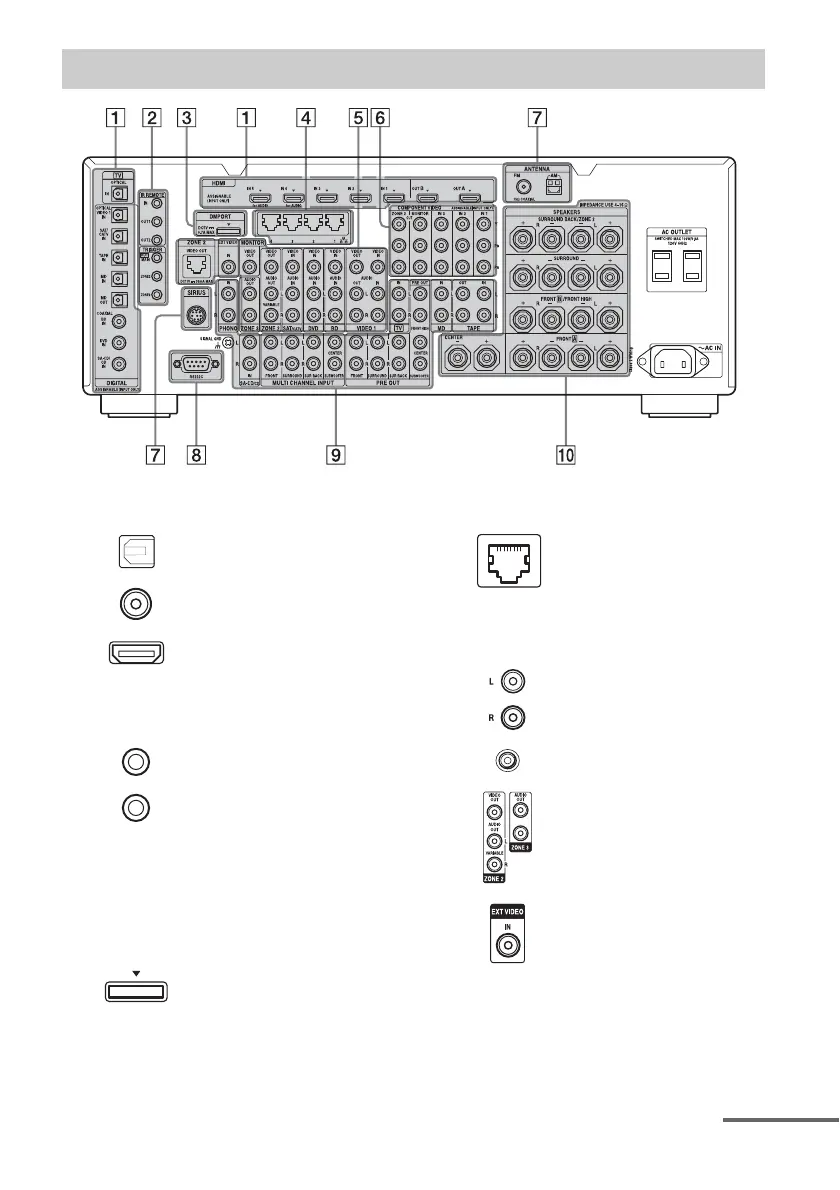

Rear panel
A DIGITAL INPUT/OUTPUT section
(page 25, 29, 35)
OPTICAL IN/OUT jacks
COAXIAL IN jacks
HDMI IN/OUT* jacks
(page 25, 26)
B Control jacks for Sony equipment
and other external components
IR REMOTE IN/OUT
jacks (page 39, 94)
TRIGGER OUT jacks
(page 124)
Connect to interlock on/off of the power
supply of other 12V TRIGGER compliant
components, or the amplifier/receiver of
zone 2 or zone 3.
C DMPORT (page 35)
D LAN ports (switching hubs)
(page 42)
E VIDEO/AUDIO INPUT/OUTPUT
section (page 25, 29, 32)
AUDIO IN/OUT jacks
VIDEO IN/OUT* jacks
AUDIO OUT jacks
VIDEO OUT jack
(page 94)
EXT VIDEO IN jack
Connects to the component when you
want to watch in PIP (Picture in Picture)
window.
