Using Multi-zone Features

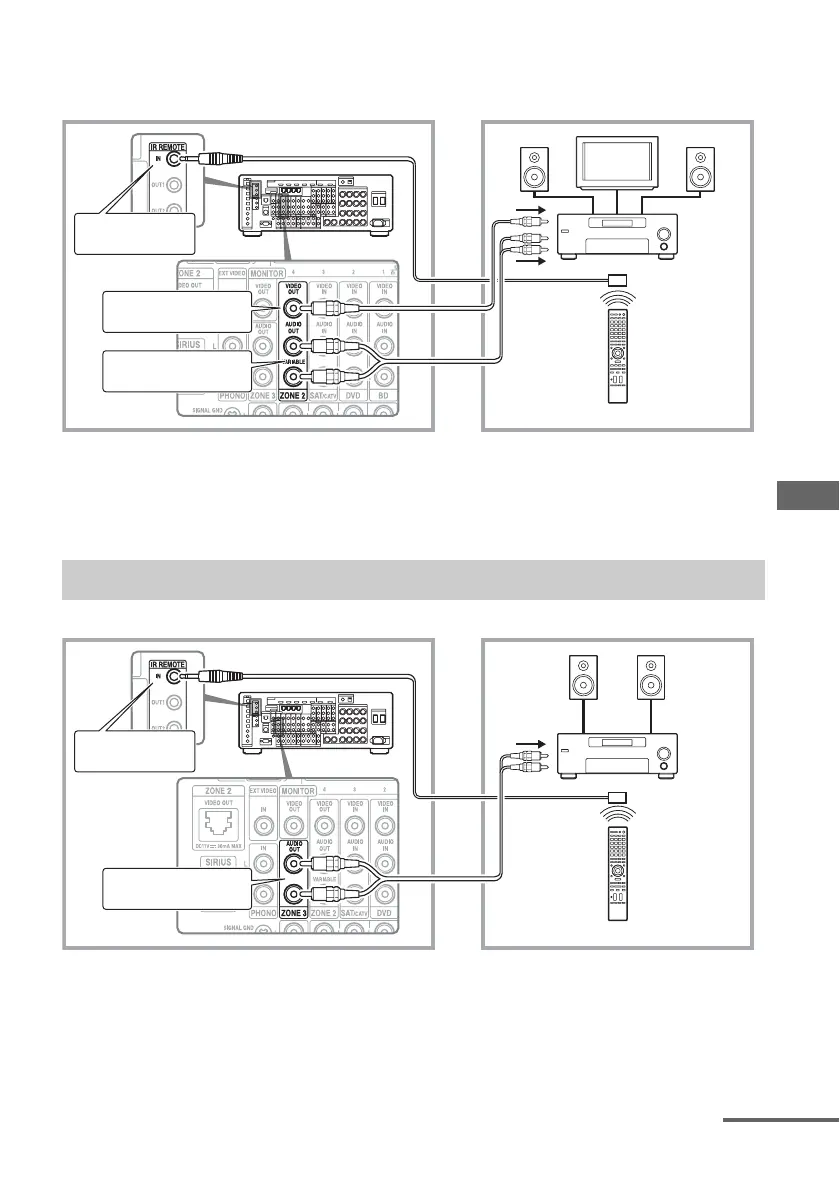

2 Outputs sound from speakers in zone 2 using the receiver and
another amplifier.
A IR repeater (not supplied)
B Speakers
C Sony Amplifier/Receiver
* You can also connect to the ZONE 2 COMPONENT VIDEO OUT jack.
Main zone Zone 2
TV
monitor
ZONE 2 AUDIO OUT
A
BB
C
STR-DA5600ES
Multifunction remote
IR REMOTE IN
ZONE 2 VIDEO OUT*
2:Zone 3 connections
BB
C
STR-DA5600ES
Main zone Zone 3
A IR repeater (not supplied)
B Speakers
C Sony Amplifier/Receiver
Multifunction remote
A
IR REMOTE IN
ZONE 3 AUDIO OUT
