ZONE 2 VIDEO OUT (RJ-45 jack) is used only for custom installation by a qualified person.
ZONE 2 VIDEO OUT (RJ-45 jack) is a jack that sends a source video signal to the component
video input for zone 2. For details, consult your dealer.
Note
This jack is not for an Ethernet LAN connection.
ZONE 2 VIDEO OUT (RJ-45 jack) connection
The RJ-45 pinouts use the T568B standard.
Refer to the illustration below.
Note
CAV-CVB1 (Component Video Balun) must be used. Other types will cause trouble and may void your
warranty.
RJ-45 Video Pinout
The RJ-45 pinouts use the T568B standard.
Refer to the illustration below.

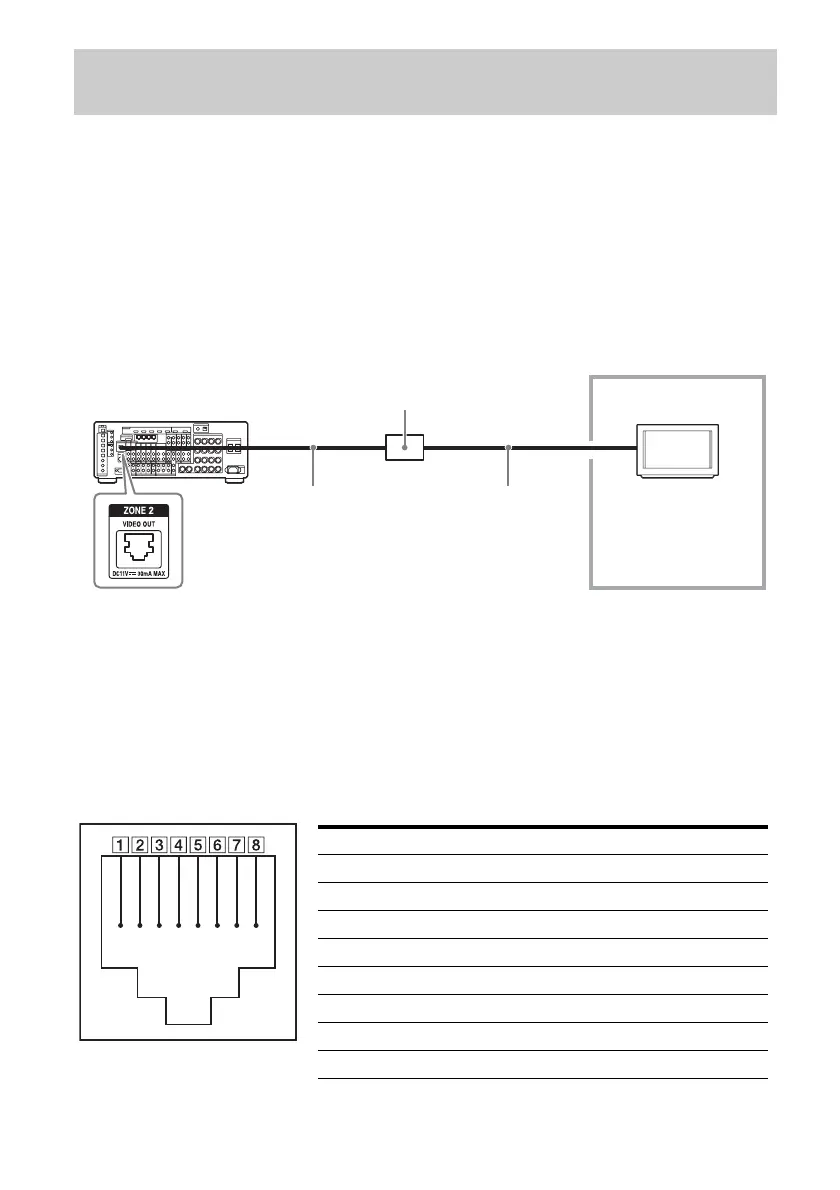

Making a zone 2 configuration using ZONE 2 VIDEO OUT (RJ-45 jack)
(USA/Canadian model only)
Component Video Balun
CAV-CVB1
ZONE 2 VIDEO OUT
(RJ-45 jack)
CAT5 cable Component video
cable
TV
monitor
Z
one
2
Pinout Wire color
A Pin 1 BLUE/Pb (R) White/Orange
B Pin 2 BLUE/Pb (T) Orange
C Pin 3 GREEN/Y (R) White/Green
D Pin 4 GND Blue
E Pin 5 +11V White/Blue
F Pin 6 GREEN/Y (T) Green
G Pin 7 RED/Pr (R) White/Brown
H Pin 8 RED/Pr (T) Brown
