Using Multi-zone Features

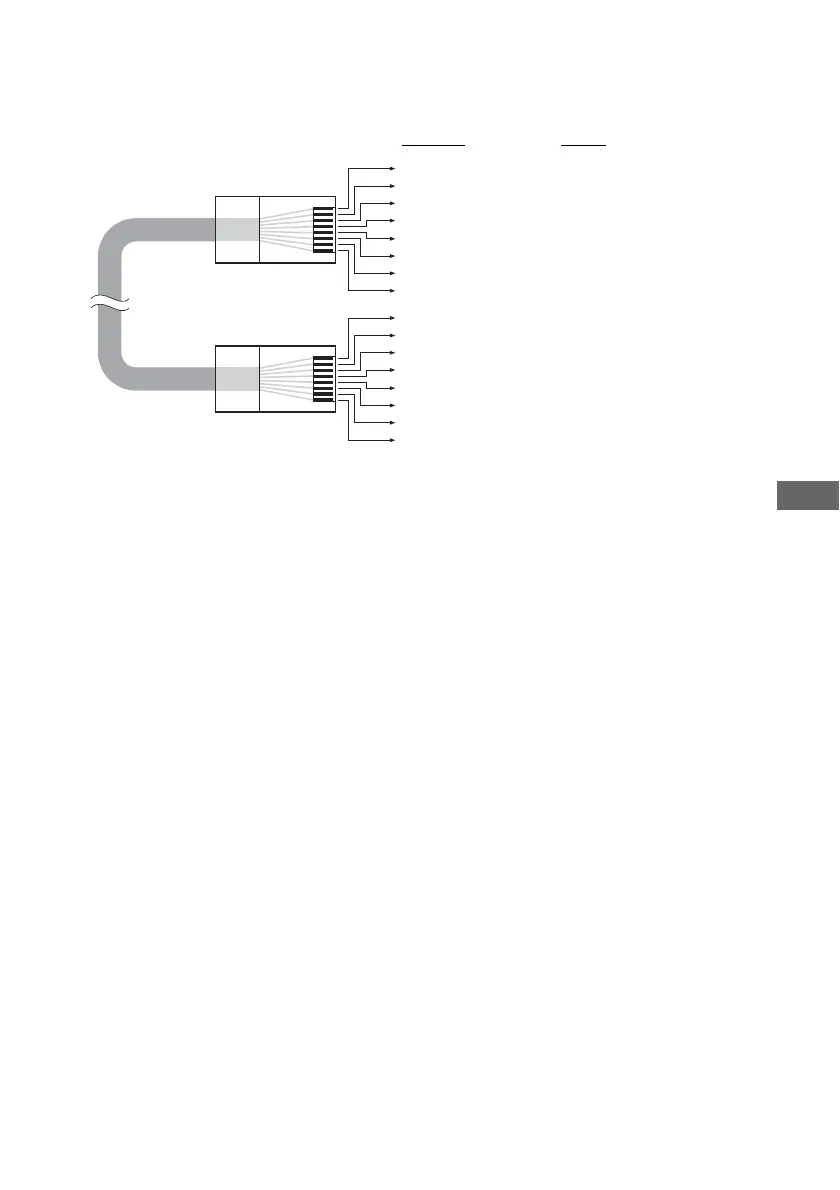

CAT5 cable
Be sure to verify the CAT5 wiring connection is correct.
Use Category 5e or Category 6 cable.
CAT5 cable
RJ-45 connector
RJ-45 connector
White/Orange
Wire color
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
1
Pin No.
2
3
4
5
6
7
8
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
1
2
3
4
5
6
7
8
